Wastewater/Activity/PacpInspection/1.0May 23, 2018, 07:31 AM
B 0660_B 0659 _23052018_004059.mp4
- Date
- 05/23/2018
- W/O
- 701390
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00109
- PipeID
- P20281
- Time
- 12:31 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5707
- Sewer Name
- B JOINT OUTFALL B - UNIT 8F
- City
- ARCADIA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_701390_TV15136_MAY2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- B 0660
- Downstream MH
- B 0659
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (4)

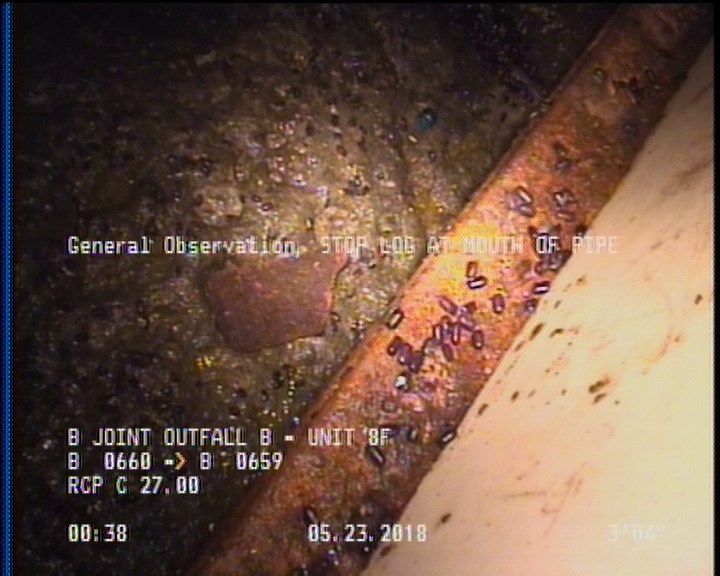

0 ft. - General Observation - STOP LOG AT MOUTH OF PIPE

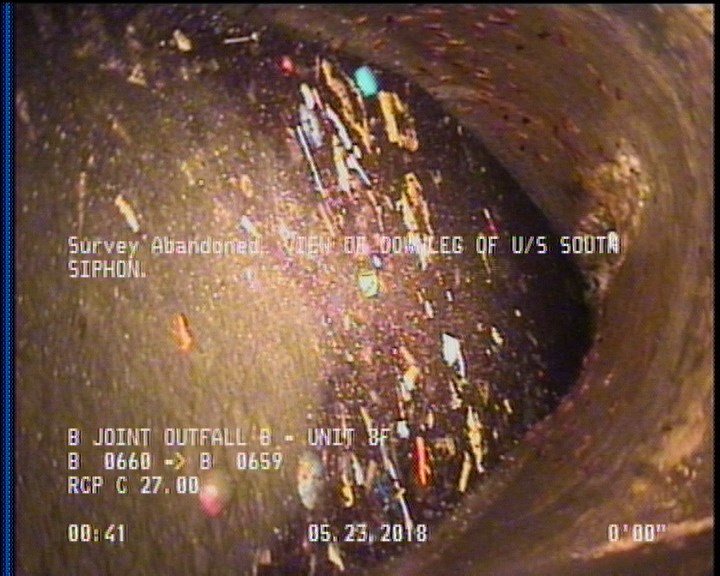

2 ft. - Survey Abandoned - VIEW OF DOWNLEG OF U/S SOUTH SIPHON.

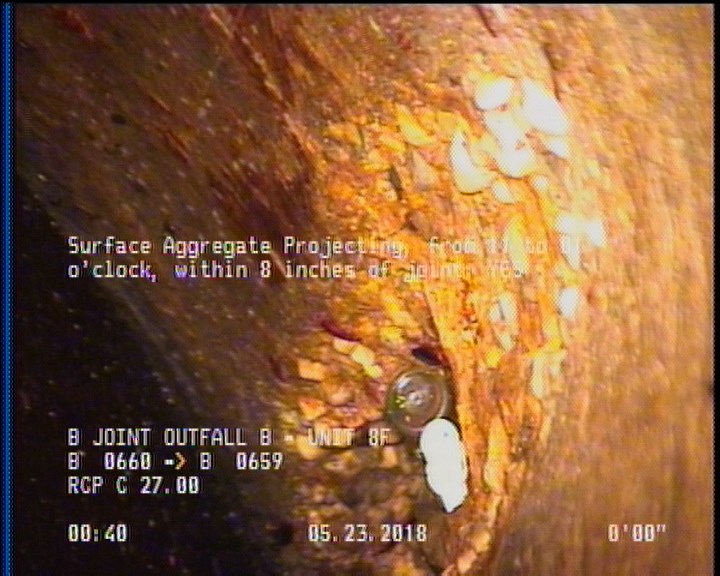

2 ft. - Surface Aggregate Projecting, from 11 to 01 o'clock, within 8 inches of joint: YES

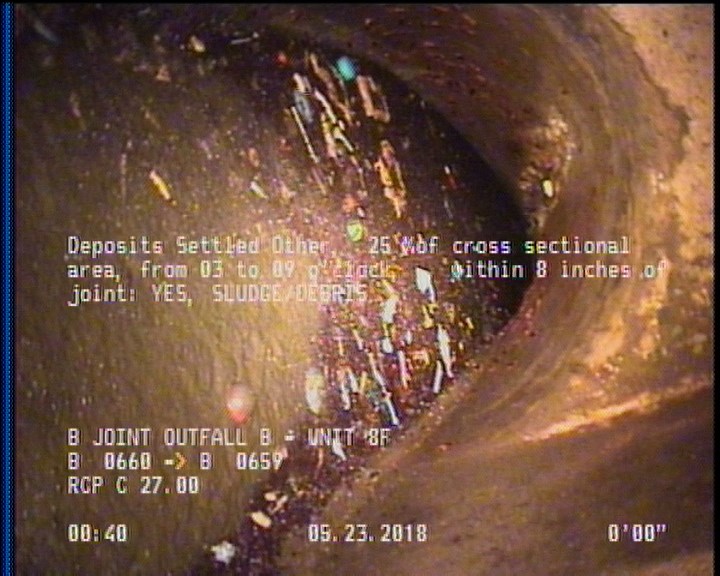

2 ft. - Deposits Settled Other, 25 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES - SLUDGE/DEBRIS
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | B 0660, SOUTH SIPHON |
| 2 | MSA | VIEW OF DOWNLEG OF U/S SOUTH SIPHON. |
| 0 | MWM | — |
| 0 | MGO | STOP LOG AT MOUTH OF PIPE |
| 0 | MWL | — |
| 2 | SAP | — |
| 2 | DSZ | SLUDGE/DEBRIS |
| 0 | MGO | COCKROACHES IN MANHOLE |
Properties (5)
- additional_info
- SC359373
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-23T00:31:20-07:00
- is_lateral_inspection
- false
