Wastewater/Activity/PacpInspection/1.0May 9, 2018, 06:07 AM
02 1391_02 1390 _08052018_231807.mp4
- Date
- 05/08/2018
- W/O
- 701119
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00349
- PipeID
- P02962
- Time
- 11:07 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5661
- Sewer Name
- 02 DISTRICT #2 INTERCEPTOR TRUNK
- City
- BELL GARDENS
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- WO_701119_TV02220_MAY2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 57 in.
- Width
- 57 in.
- Upstream MH
- 02 1391
- Downstream MH
- 02 1390
- Dir. of Survey
- Downstream
- Length Surveyed
- 283.6 ft.
- Total Length
- 283.6 ft.
- Structural Index
- 4
- Structural Quick
- 5J3J
- Structural Rating
- 448
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 448
Observation photos (2)

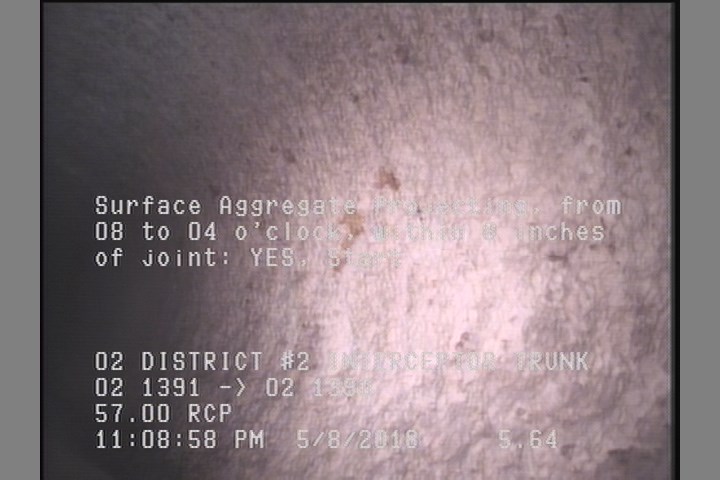

5.6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

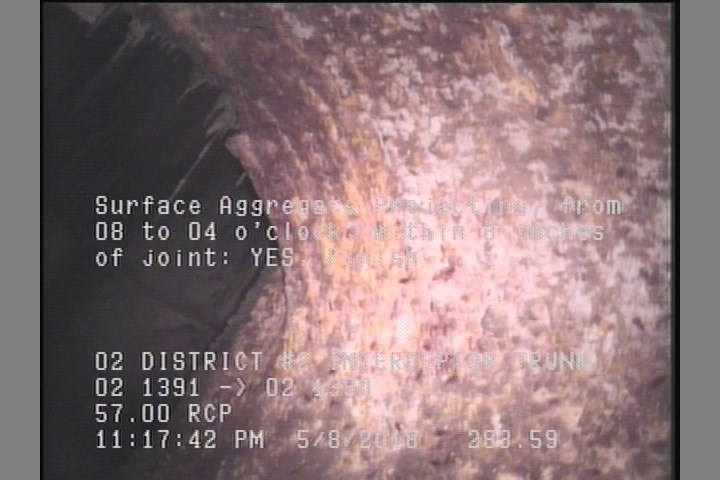

283.6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 5.6 | SAP | — |
| 2.3 | MGO | 95% MAG COAT INTACT |
| 0 | AMH | 02 1391 |
| 283.6 | SAP | — |
| 0 | MWM | — |
| 283.6 | AMH | 02 1390 |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC359317
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-05-08T23:07:14-07:00
- is_lateral_inspection
- false
