Wastewater/Activity/PacpInspection/1.0May 18, 2018, 10:52 AM
18 0279_18 0278 _18052018_040220.mp4
- Date
- 05/18/2018
- W/O
- 701118
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00702
- PipeID
- P14107
- Time
- 3:52 AM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5614
- Sewer Name
- 18 SHOEMAKER AVENUE TRUNK
- City
- NORWALK, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- WO_701118_TV18148_MAY2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Square
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 0279
- Downstream MH
- 18 0278
- Dir. of Survey
- Downstream
- Length Surveyed
- 136.6 ft.
- Total Length
- 136.6 ft.
- Structural Index
- 3
- Structural Quick
- 3D00
- Structural Rating
- 78
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 78
Observation photos (3)

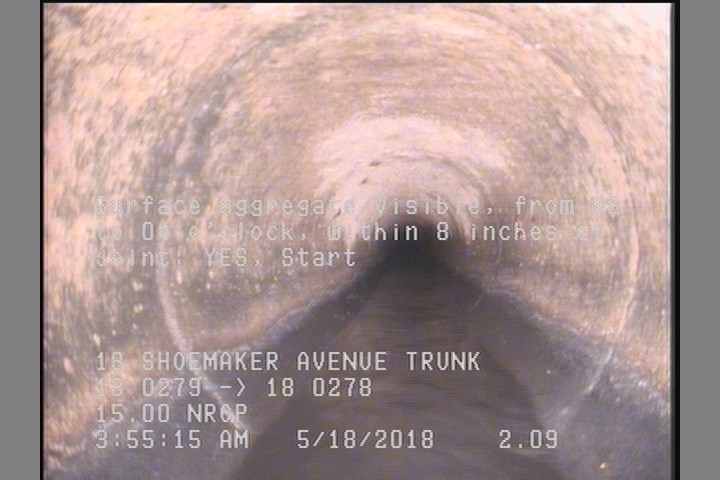

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

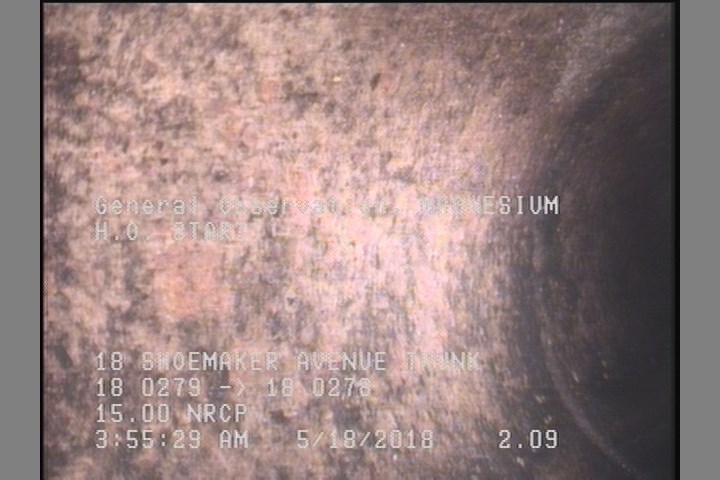

2.1 ft. - General Observation - MAGNESIUM H.O. START

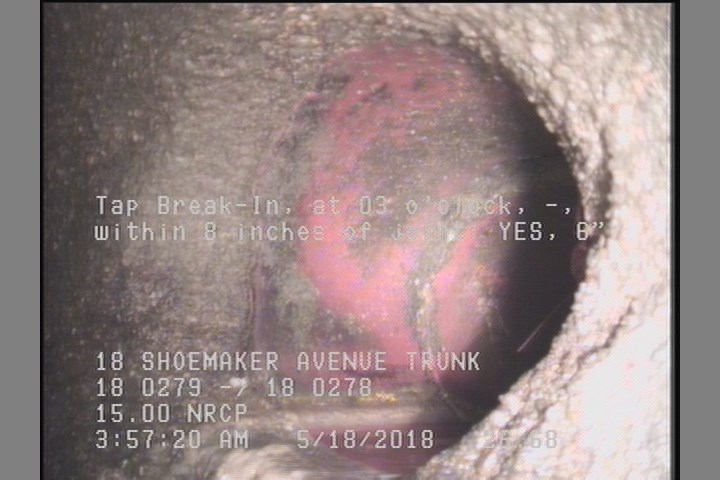

26.7 ft. - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: YES, 6"
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 59.9 | TFC | — |
| 0 | MWM | — |
| 14.1 | TFC | — |
| 108.8 | TFC | — |
| 26.7 | TB | — |
| 2.1 | SAV | — |
| 56.7 | TFC | — |
| 133.4 | SAV | — |
| 133.4 | MGO | MAGNEZIUM H.O. FINISH |
| 0 | AMH | 18 0279 |
| 11.4 | TFC | — |
| 136.6 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 136.6 | AMH | 18 0278 |
| 0 | MWL | — |
| 111.5 | TFC | — |
| 2.1 | MGO | MAGNESIUM H.O. START |
Properties (5)
- additional_info
- SC359169
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-18T03:52:38-07:00
- is_lateral_inspection
- false
