Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 22, 2018, 05:19 AM

  • 18 0277_18 0276 _21052018_222730.mp4

Date
05/21/2018
W/O
701118
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00702
PipeID
P14105
Time
10:19 PM
Certificate
U-0817-07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5615
Sewer Name
18 SHOEMAKER AVENUE TRUNK
City
NORWALK, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
30
Purpose
Routine Assessment
Project
WO_701118_TV18148_MAY2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
18 0277
Downstream MH
18 0276
Dir. of Survey
Downstream
Length Surveyed
44.5 ft.
Total Length
44.5 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 18 0277 to 18 0276
MH: 18 0277MH: 18 0276downstream0 ft. AMH - Upstream Manhole, Survey Begins - 18 02770 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area1.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start1.8 ft. MGO - General Observation - MAGNESIUM, START19.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"23 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"42.4 ft. MGO - General Observation - MAGNESIUM COATING END42.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish44.5 ft. AMH - Downstream Manhole, Survey Ends - 18 0276

Observation photos (2)

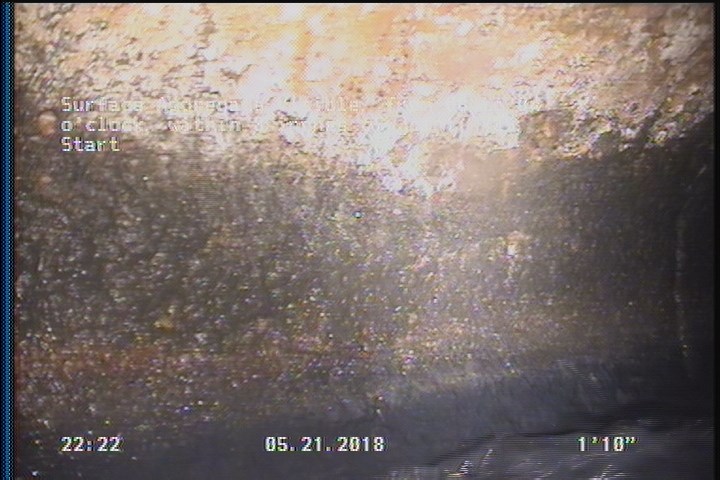

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    1.8 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

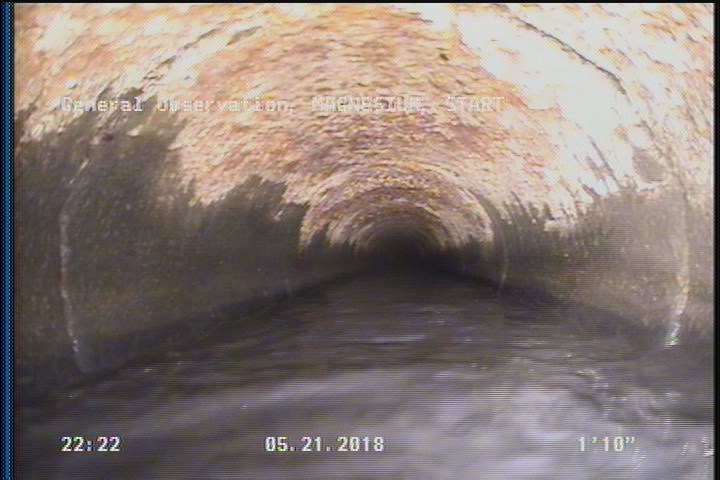

  • General Observation - MAGNESIUM, START

    1.8 ft. - General Observation - MAGNESIUM, START

All inspections of P14105Work order 701118

Observations (11)

DistanceCodeObservation
42.4MGOMAGNESIUM COATING END
23TF—
0AMH18 0277
0MGOCONNECTION AT MH 3 OCLOCK
1.8SAV—
0MWL—
1.8MGOMAGNESIUM, START
42.4SAV—
44.5AMH18 0276
19.7TFC—
0MWM—

Properties (5)

additional_info
SC359170
custom_field_two
3
customer
LACSD
datetime
2018-05-21T22:19:52-07:00
is_lateral_inspection
false
