Wastewater/Activity/PacpInspection/1.0May 17, 2018, 08:24 AM
21 0599_21 0598_17052018_020155.mp4
- Date
- 05/17/2018
- W/O
- 696341
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00786
- PipeID
- P15751
- Time
- 1:24 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5597
- Sewer Name
- 21 TRI-CITIES OUTFALL TRUNK
- City
- POMONA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_696341_TV21106_APR2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 22 in.
- Width
- 22 in.
- Upstream MH
- 21 0599
- Downstream MH
- 21 0598
- Dir. of Survey
- Downstream
- Length Surveyed
- 1087.3 ft.
- Total Length
- 1087.3 ft.
- Structural Index
- 3
- Structural Quick
- 3j2i
- Structural Rating
- 1070
- O&M Index
- 2
- O&M Quick
- 2j00
- O&M Rating
- 434
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 1504
Observation photos (3)

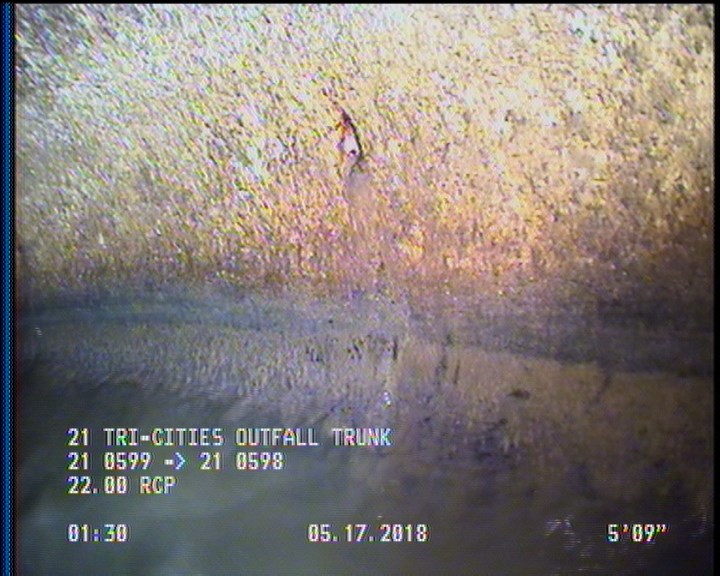

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

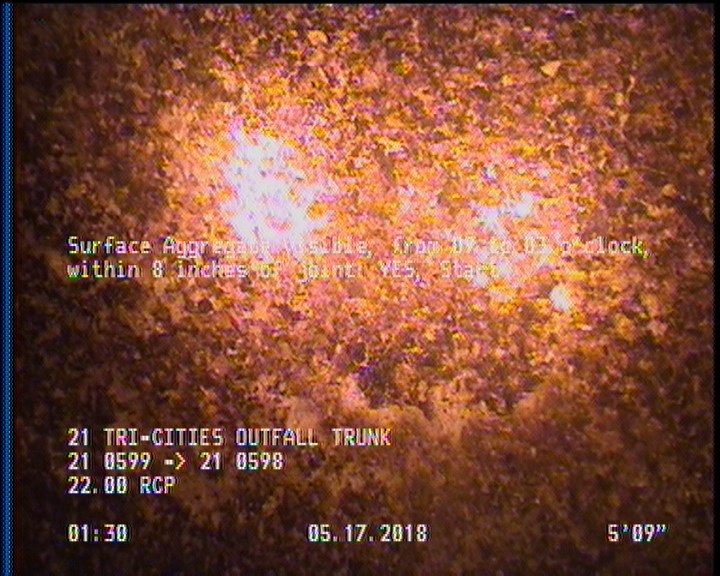

5.7 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

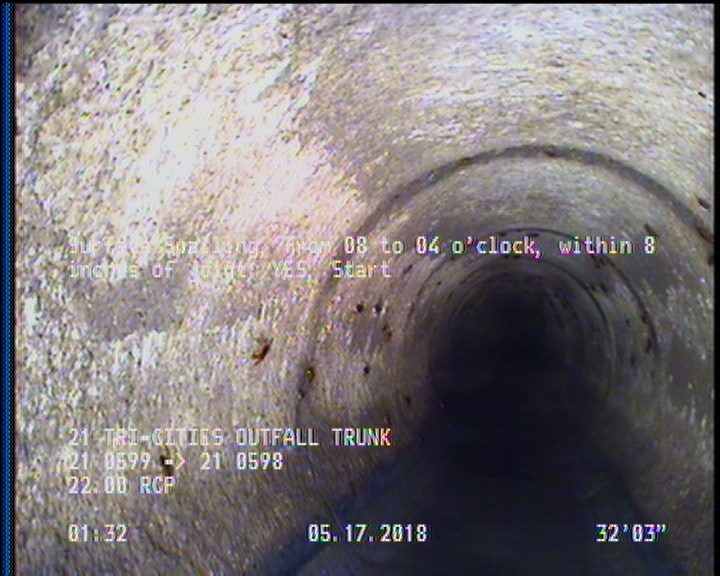

32.3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | 21 0599 |
| 5.7 | SAV | — |
| 0 | MWL | — |
| 2 | DAGS | — |
| 1085.5 | SSS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 1085.5 | MGO | COCKROACHES IN MANHOLE |
| 1085.5 | SAV | — |
| 1085.5 | DAGS | — |
| 32.3 | SSS | — |
| 1087.3 | AMH | 21 0598 |
| 1087.3 | MGO | CONNECTION AT MH 9 O'CLOCK |
Properties (5)
- additional_info
- SC359363
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-17T01:24:49-07:00
- is_lateral_inspection
- false
