Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 15, 2018, 11:10 AM

  • B 0264_B 0262A _15052018_044053.mp4

Date
05/15/2018
W/O
696331
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00079
PipeID
P08744
Time
4:10 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5592
Sewer Name
B JOINT OUTFALL B - UNIT 1F
City
ROSEMEAD
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
27
Purpose
Routine Assessment
Project
WO_696331_TV15218_APR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
B 0264
Downstream MH
B 0262A
Dir. of Survey
Downstream
Length Surveyed
357.6 ft.
Total Length
357.6 ft.
Structural Index
4
Structural Quick
4700
Structural Rating
28
O&M Index
3
O&M Quick
4132
O&M Rating
14
Overall Index
4
Overall Quick
—
Overall Rating
42
Pipe schematic from manhole B 0264 to B 0262A
MH: B 0264MH: B 0262Adownstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B 02640 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start105.6 ft. RBJ - Roots Ball Joint, from 08 to 04 o'clock, 75 %, within 8 inches of joint: YESR107.2 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"314.9 ft. FM - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Start324.1 ft. B - Broken, from 03 to 04 o'clock, within 8 inches of joint: YES340.4 ft. RPZ - Repair Other, within 8 inches of joint: YES - POSSIBLE CAPPED ABANDONED MH.346.1 ft. FM - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Finish353.6 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS357.6 ft. MSA - Survey Abandoned - DUE TO SETTLED DEPOSITS/DEBRIS357.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish357.6 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (7)

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Roots Ball Joint, from 08 to 04 o'clock, 75 %, within 8 inches of joint: YESR

    105.6 ft. - Roots Ball Joint, from 08 to 04 o'clock, 75 %, within 8 inches of joint: YESR

  • Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Start

    314.9 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Start

  • Broken, from 03 to 04 o'clock, within 8 inches of joint: YES

    324.1 ft. - Broken, from 03 to 04 o'clock, within 8 inches of joint: YES

  • Repair Other, within 8 inches of joint: YES - POSSIBLE CAPPED ABANDONED MH.

    340.4 ft. - Repair Other, within 8 inches of joint: YES - POSSIBLE CAPPED ABANDONED MH.

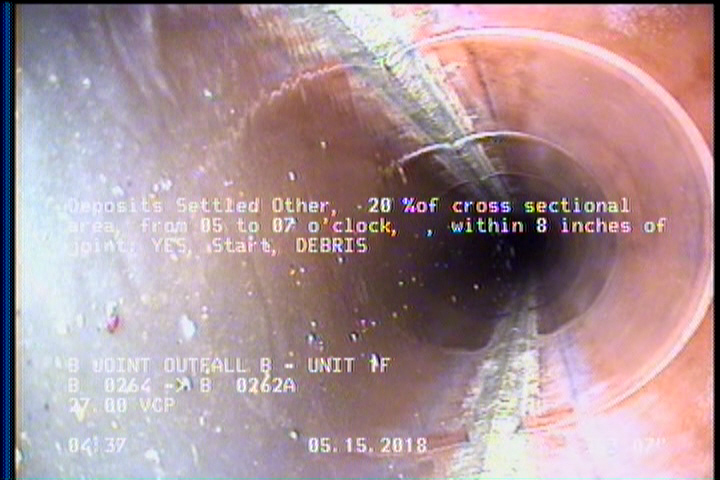

  • Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

    353.6 ft. - Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

  • Survey Abandoned - DUE TO SETTLED DEPOSITS/DEBRIS

    357.6 ft. - Survey Abandoned - DUE TO SETTLED DEPOSITS/DEBRIS

All inspections of P08744Work order 696331

Observations (15)

DistanceCodeObservation
314.9FM—
107.2TFA—
357.6MSADUE TO SETTLED DEPOSITS/DEBRIS
105.6RBJ—
0MWL—
340.4RPZPOSSIBLE CAPPED ABANDONED MH.
353.6DSZDEBRIS
0AMHB 0264
357.6DAGS—
357.6DSZ—
346.1FM—
0MGOCOCKROACHES IN MANHOLE
324.1B—
0MWM—
2DAGS—

Properties (5)

additional_info
SC359358
custom_field_two
1
customer
LACSD
datetime
2018-05-15T04:10:49-07:00
is_lateral_inspection
false
