Wastewater/Activity/PacpInspection/1.0May 15, 2018, 09:22 AM
21 0215_H 0989 _15052018_022735.mp4
- Date
- 05/15/2018
- W/O
- 696163
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01005
- PipeID
- P15403
- Time
- 2:22 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5591
- Sewer Name
- H JOINT OUTFALL H - UNIT 7C
- City
- CITY OF INDUSTRY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_696163_TV21098_APR2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- 21 0215
- Downstream MH
- H 0989
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (3)

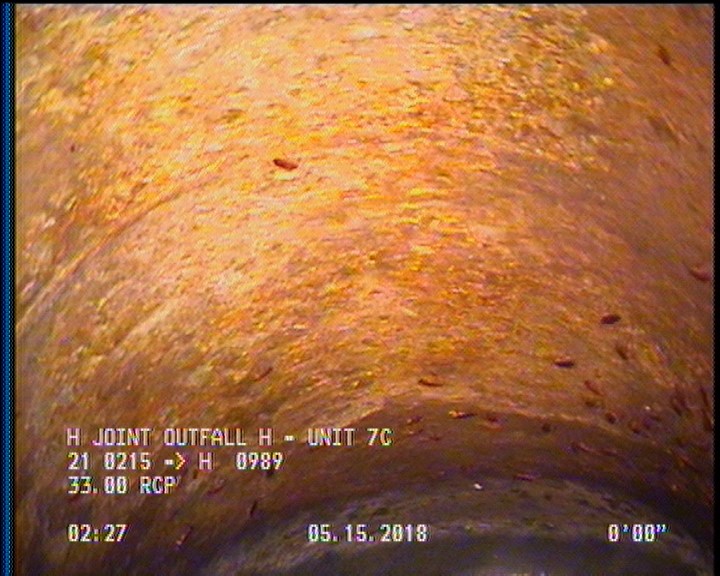

2 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES

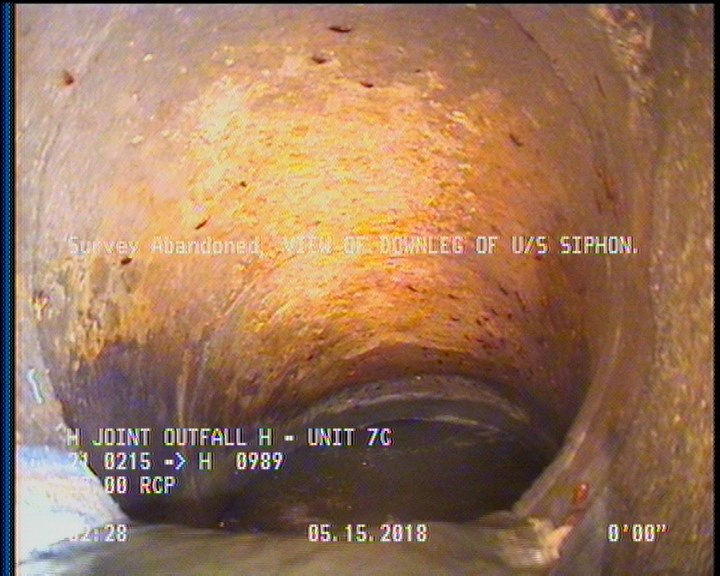

2 ft. - Survey Abandoned - VIEW OF DOWNLEG OF U/S SIPHON.

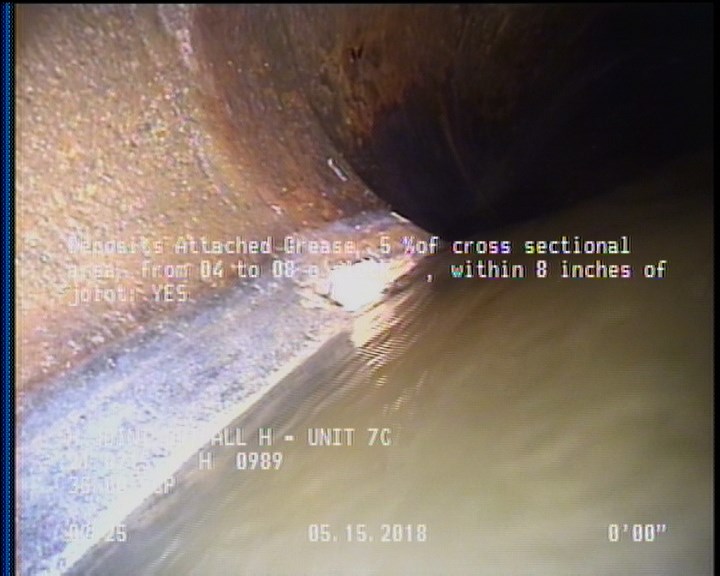

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | 21 0215 |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 2 | MSA | VIEW OF DOWNLEG OF U/S SIPHON. |
| 2 | DAGS | — |
Properties (5)
- additional_info
- SC359357
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-15T02:22:54-07:00
- is_lateral_inspection
- false
