Wastewater/Activity/PacpInspection/1.0May 21, 2018, 08:24 AM
21 0661_21 0660 _21052018_014002.mp4
- Date
- 05/21/2018
- W/O
- 695747
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00766
- PipeID
- P15811
- Time
- 1:24 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5601
- Sewer Name
- 21 FIRST STREET TRUNK, SECTS 1&2
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_695747_TV21052_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 14 in.
- Width
- 14 in.
- Upstream MH
- 21 0661
- Downstream MH
- 21 0660
- Dir. of Survey
- Downstream
- Length Surveyed
- 156.9 ft.
- Total Length
- 156.9 ft.
- Structural Index
- 3
- Structural Quick
- 3400
- Structural Rating
- 12
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (4)

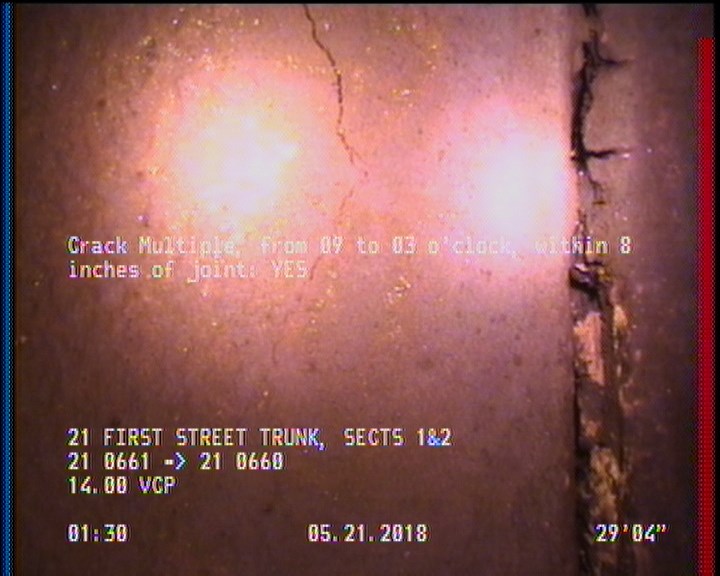

29.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

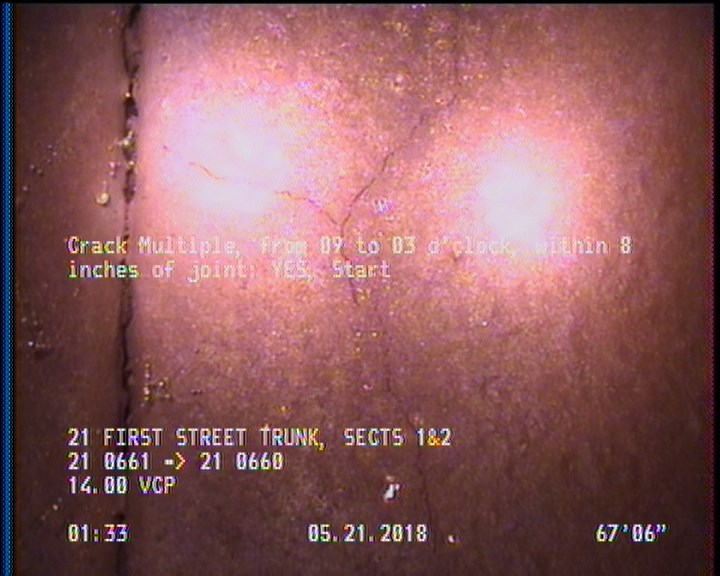

67.5 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

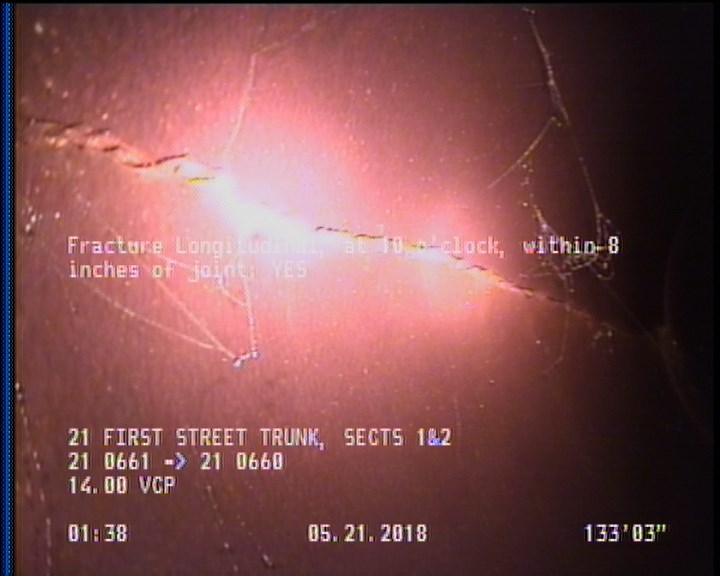

133.3 ft. - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start

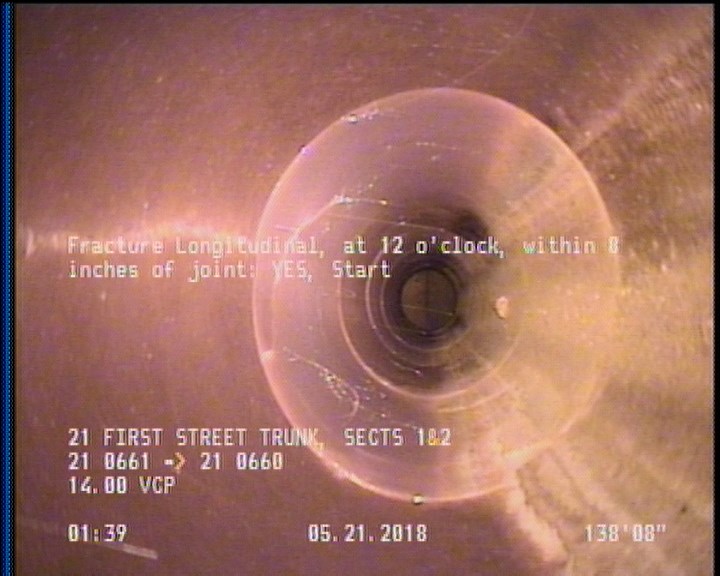

138.6 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 144.5 | FL | — |
| 156.9 | AMH | 21 0660 |
| 138.6 | FL | — |
| 67.5 | CM | — |
| 138.2 | FL | — |
| 29.4 | CM | — |
| 0 | MWM | — |
| 156.8 | CM | — |
| 133.3 | FL | — |
| 0 | AMH | 21 0661 |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC359367
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-21T01:24:53-07:00
- is_lateral_inspection
- false
