Wastewater/Activity/PacpInspection/1.0May 16, 2018, 10:25 AM
15 0230_15 0229_16052018_032939.mp4
- Date
- 05/16/2018
- W/O
- 695683
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00627
- PipeID
- P12152
- Time
- 3:25 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5595
- Sewer Name
- 15 SAN JOSE CREEK TRUNK
- City
- CITY OF INDUSTRY
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_695683_TV15207_APR2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- 15 0230
- Downstream MH
- 15 0229
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 4
- O&M Quick
- 4131
- O&M Rating
- 7
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

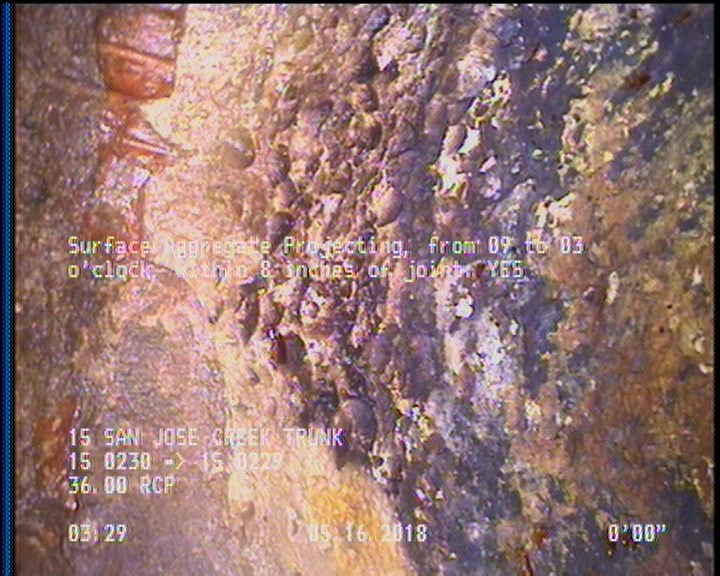

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES

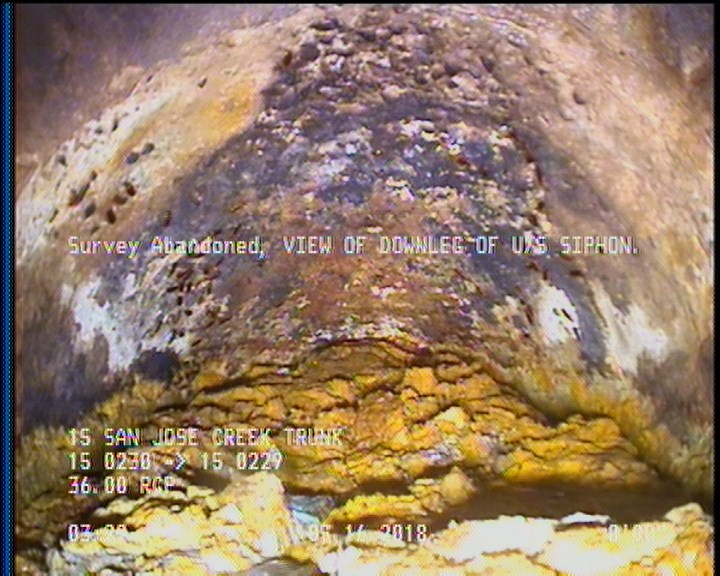

2 ft. - Survey Abandoned - VIEW OF DOWNLEG OF U/S SIPHON.

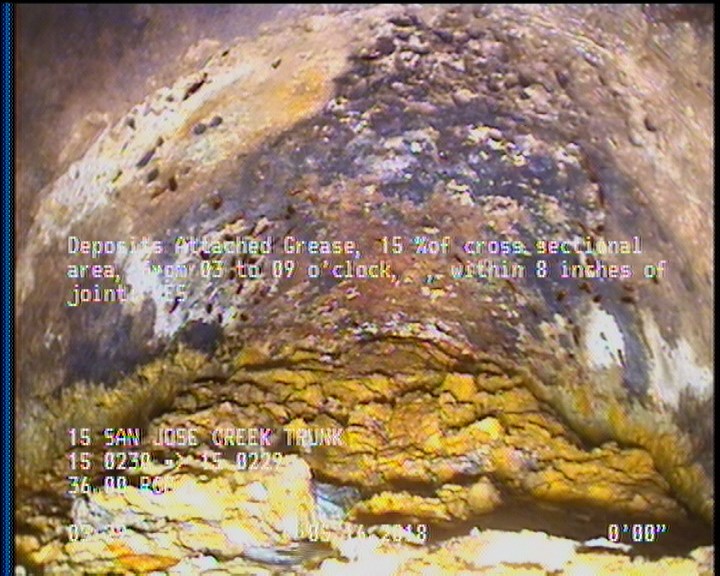

2 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | COCKROACHES IN MANHOLE |
| 2 | SAP | — |
| 0 | AMH | 15 0230 |
| 0 | MWL | — |
| 0 | MWM | — |
| 2 | MSA | VIEW OF DOWNLEG OF U/S SIPHON. |
| 2 | DAGS | — |
Properties (5)
- additional_info
- SC359361
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-16T03:25:21-07:00
- is_lateral_inspection
- false
