Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 16, 2018, 06:05 AM

  • 15 0430_15 0429 _15052018_234451.mp4

Date
05/15/2018
W/O
695648
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00607
PipeID
P12357
Time
11:05 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5593
Sewer Name
15 HILL DRIVE EXTENSION TRUNK
City
SOUTH SAN GABRIEL
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
26
Purpose
Routine Assessment
Project
WO_695648_TV15034_APR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
15 0430
Downstream MH
15 0429
Dir. of Survey
Downstream
Length Surveyed
168.2 ft.
Total Length
168.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2F00
O&M Rating
66
Overall Index
2
Overall Quick
—
Overall Rating
66
Pipe schematic from manhole 15 0430 to 15 0429
MH: 15 0430MH: 15 0429downstream0 ft. AMH - Upstream Manhole, Survey Begins - 15 04300 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. MLC - Lining Change, Cured in place2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start62.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"72 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"98.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"146.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"151.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"155.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"166.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish168.2 ft. AMH - Downstream Manhole, Survey Ends - 15 0429

Observation photos (2)

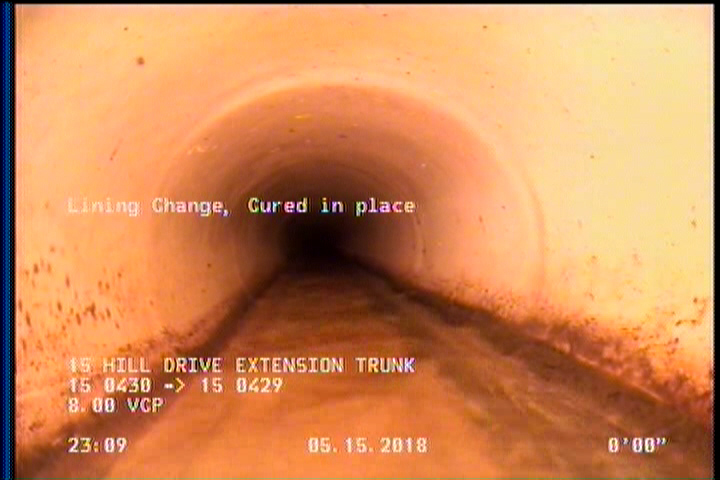

  • Lining Change, Cured in place

    2 ft. - Lining Change, Cured in place

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P12357Work order 695648

Observations (14)

DistanceCodeObservation
166.2DAGS—
2MLC—
0AMH15 0430
151.8TFA—
2DAGS—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
155.6TFA—
72TFC—
146.2TFC—
0MWL—
168.2AMH15 0429
0MWM—
98.2TFC—
62.9TFC—

Properties (7)

additional_info
SC359359
custom_field_two
4
customer
LACSD
datetime
2018-05-15T23:05:35-07:00
is_lateral_inspection
false
lining
PVCP-Folded/Reformed
year_laid
33882
