Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 24, 2018, 12:20 PM

  • 14 0478_14 0477_24012018_060313.mp4

Date
01/24/2018
W/O
685065
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00580
PipeID
P18567
Time
4:20 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5384
Sewer Name
14 TRUNK "D"
City
LANCASTER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
21
Purpose
Routine Assessment
Project
WO_685065_TV14023_FEB2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
14 0477
Downstream MH
14 0478
Dir. of Survey
Upstream
Length Surveyed
326.6 ft.
Total Length
326.6 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
3
O&M Quick
3L00
O&M Rating
195
Overall Index
3
Overall Quick
—
Overall Rating
200
Pipe schematic from manhole 14 0477 to 14 0478
MH: 14 0477MH: 14 0478upstream0 ft. MGO - General Observation - @ U/S MH (END OF SURVEY) , DEBRIS OBSERVED IN CONNECTIONS @ 9 & 12 OC0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9, 12 AND 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Ends - 14 04781.6 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish - DEBRIS1.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish31.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"35.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"83.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"99.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"132.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"136 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"184.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"189.3 ft. RPL - Repair Localized Liner, within 8 inches of joint: YES232.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"236.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"281.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"285.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"315.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start324.6 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS324.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start326.6 ft. MWL - Water Level, 25 %of cross sectional area326.6 ft. AMH - Downstream Manhole, Survey Begins - 14 0477

Observation photos (3)

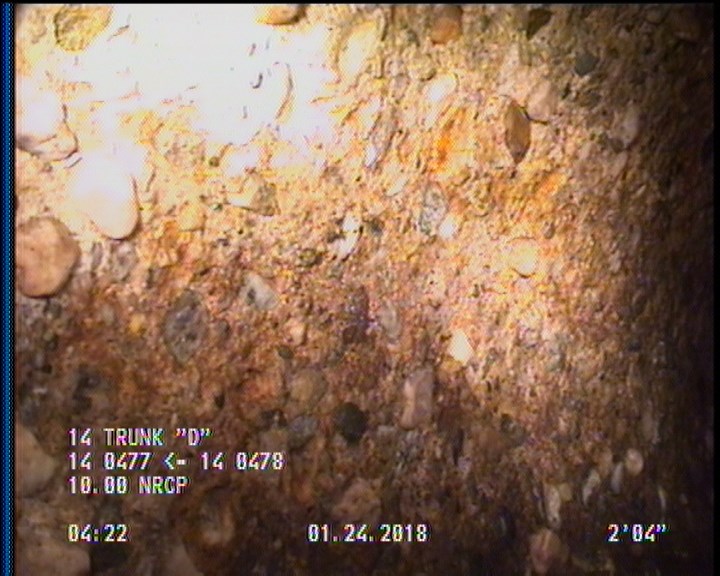

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

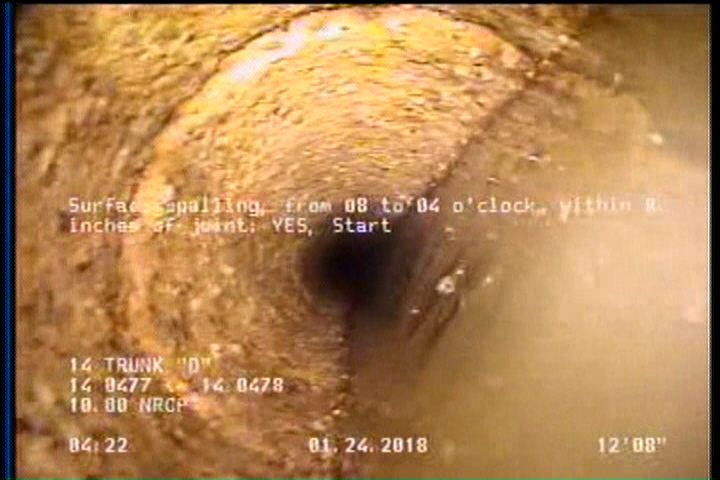

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    11.4 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

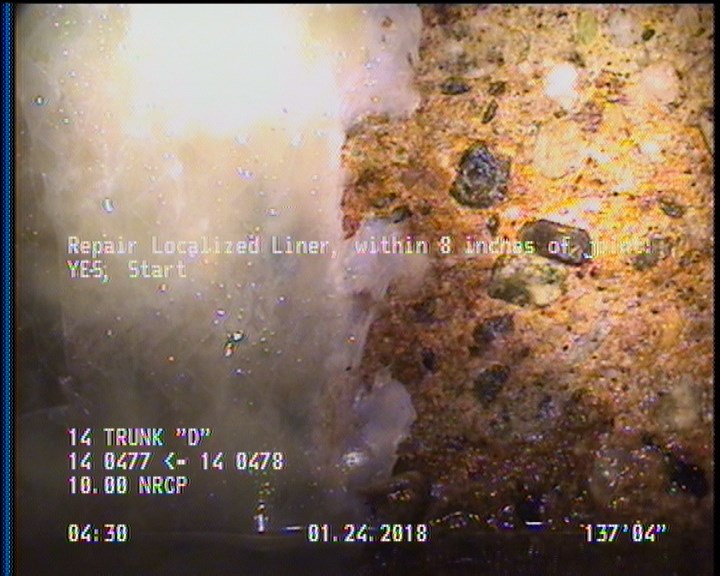

  • Repair Localized Liner, within 8 inches of joint: YES

    137.3 ft. - Repair Localized Liner, within 8 inches of joint: YES

All inspections of P18567Work order 685065

Observations (23)

DistanceCodeObservation
291.4TFC—
326.6MGO@ U/S MH (END OF SURVEY) , DEBRIS OBSERVED IN CONNECTIONS @ 9 & 12 OC
142.5TFC—
295TFC—
41.3TFC—
94TFC—
324.8SSS—
0MWL—
326.6MGOACTIVE CONNECTION AT MH 9, 12 AND 3 O'CLOCK
243TFC—
325DSZDEBRIS
11.4SSS—
90.2TFC—
137.3RPL—
326.6AMH14 0478
45.5TF—
194.3TFA—
190.6TFC—
324.9SAP—
226.9TFA—
0AMH14 0477
2DSZDEBRIS
2SAP—

Properties (5)

additional_info
SC346963
custom_field_two
2
customer
LACSD
datetime
2018-01-24T04:20:49-08:00
is_lateral_inspection
false
