Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 22, 2019, 06:34 PM

  • C 0711__05222019_122846.mp4

Date
05/22/2019
W/O
761415
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00120
PipeID
P20575
Time
11:34 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6556
Sewer Name
C JOINT OUTFALL C - UNIT 3A
City
LONG BEACH
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
18
Purpose
Routine Assessment
Project
RFIR_WO_761415_TV03161_APR2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
72 in.
Width
72 in.
Upstream MH
C 0711
Downstream MH
C 0499
Dir. of Survey
Downstream
Length Surveyed
90.5 ft.
Total Length
90.5 ft.
Structural Index
2
Structural Quick
352B
Structural Rating
47
O&M Index
3
O&M Quick
513A
O&M Rating
41
Overall Index
3
Overall Quick
—
Overall Rating
88
Pipe schematic from manhole C 0711 to C 0499
MH: C 0711MH: C 0499downstream0 ft. MWM - Water Mark, 75 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - C 07110 ft. MWL - Water Level, 75 %of cross sectional area9.1 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start10 ft. SAP - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES, Start13.9 ft. ID - Infiltration Dripper, from 10 to 02 o'clock, within 8 inches of joint: YES32.3 ft. ID - Infiltration Dripper, from 10 to 02 o'clock, within 8 inches of joint: YES, Start64.8 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start64.8 ft. SAP - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish86.1 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish86.9 ft. ID - Infiltration Dripper, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish90 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish90.5 ft. AMH - Downstream Manhole, Survey Ends - PUMPING PLANT

Observation photos (4)

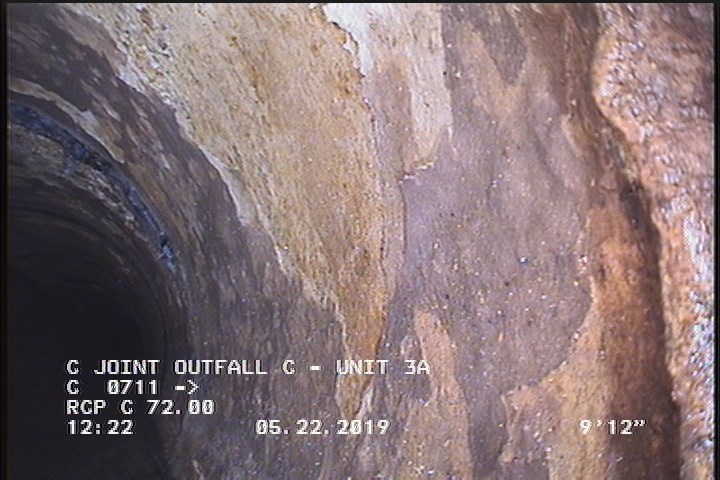

  • Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    10 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

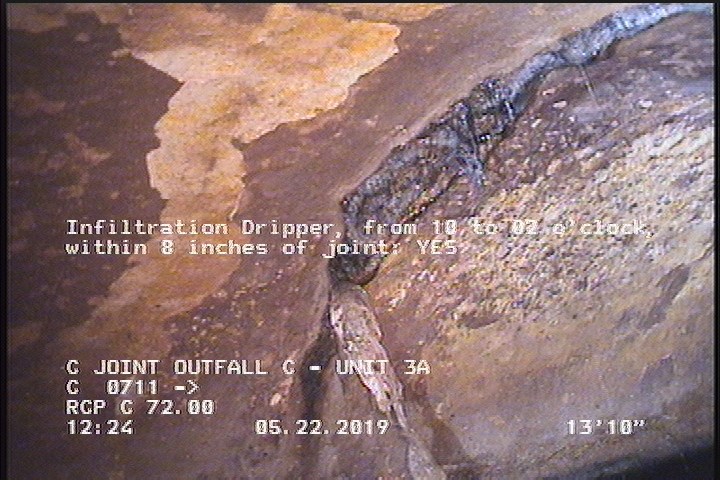

  • Infiltration Dripper, from 10 to 02 o'clock, within 8 inches of joint: YES

    13.9 ft. - Infiltration Dripper, from 10 to 02 o'clock, within 8 inches of joint: YES

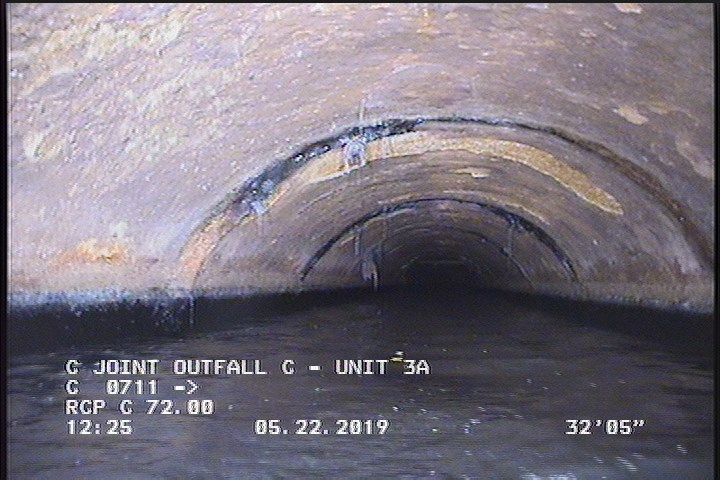

  • Infiltration Dripper, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    32.3 ft. - Infiltration Dripper, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

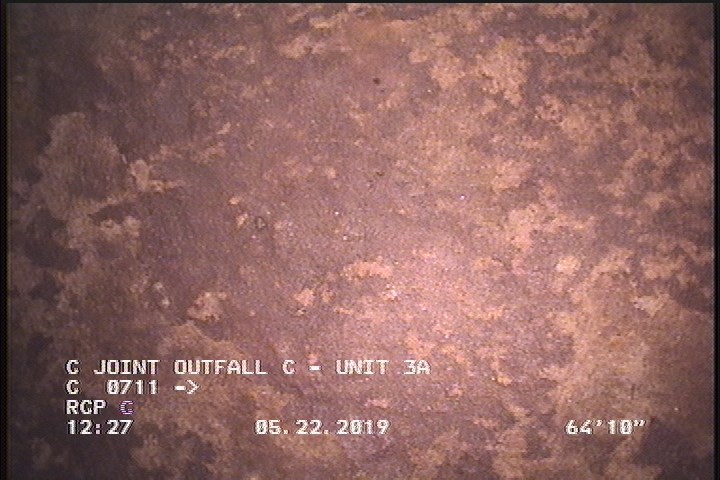

  • Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    64.8 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P20575Work order 761415

Observations (13)

DistanceCodeObservation
64.8SAV—
64.8SAP—
90.5AMHPUMPING PLANT
0MWM—
86.1SAV—
90SSS—
32.3ID—
0AMHC 0711
10SAP—
9.1SSS—
86.9ID—
13.9ID—
0MWL—

Properties (4)

custom_field_two
3
customer
LACSD
datetime
2019-05-22T11:34:24-07:00
is_lateral_inspection
false
