Wastewater/Activity/PacpInspection/1.0May 9, 2019, 05:29 AM
05 0761_05 0760 _05082019_225935.mp4
- Date
- 05/08/2019
- W/O
- 761384
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00484
- PipeID
- P05988
- Time
- 10:29 PM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6537
- Sewer Name
- 05 MANCHESTER-VERMONT RELIEF TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- RFIR_WO_761384_TV05350_APR2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 0761
- Downstream MH
- 05 0760
- Dir. of Survey
- Downstream
- Length Surveyed
- 400.5 ft.
- Total Length
- 400.5 ft.
- Structural Index
- 4
- Structural Quick
- 4O00
- Structural Rating
- 312
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 312
Observation photos (2)

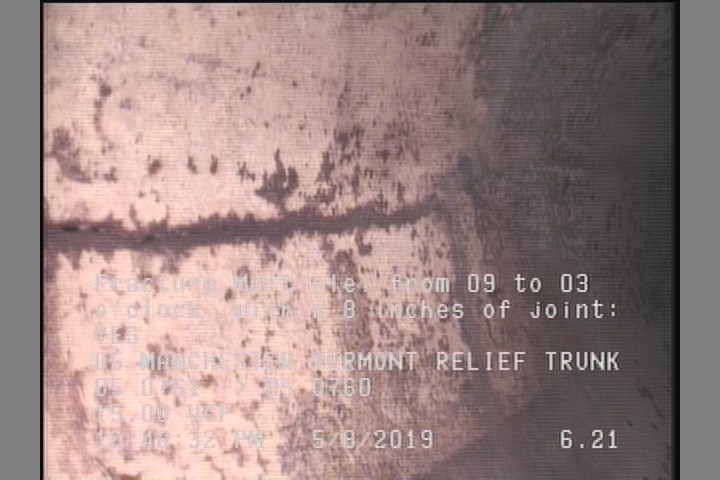

6 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
10.9 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 05 0761 |
| 0 | MWM | — |
| 0 | MWL | — |
| 10.9 | FM | — |
| 397.9 | FM | — |
| 400.5 | AMH | 05 0760 |
| 6 | FM | — |
Properties (4)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-05-08T22:29:08-07:00
- is_lateral_inspection
- false
