Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 22, 2019, 09:46 AM

  • 01 1171_01 1256_05222019_030246.mp4

Date
05/22/2019
W/O
761350
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00225
PipeID
P02188
Time
2:46 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6537
Sewer Name
01 WILCOX AVENUE TRUNK
City
BELL
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Routine Assessment
Project
RFIR_WO_761350_TV01257_APR2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 1256
Downstream MH
01 1171
Dir. of Survey
Upstream
Length Surveyed
24 ft.
Total Length
24 ft.
Structural Index
3
Structural Quick
3421
Structural Rating
14
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole 01 1256 to 01 1171
MH: 01 1256MH: 01 1171upstream0 ft. MGO - General Observation - CAPPED CONNECTION IN MH AT 9'0 9'00 ft. AMH - Upstream Manhole, Survey Ends - 01 11710 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MGO - General Observation - COCKROACHES IN MANHOLE1.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish1.7 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish1.7 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish22 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start22 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start22 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start24 ft. MWL - Water Level, 35 %of cross sectional area24 ft. AMH - Downstream Manhole, Survey Begins - 01 125624 ft. MWM - Water Mark, 50 %of cross sectional area24 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (5)

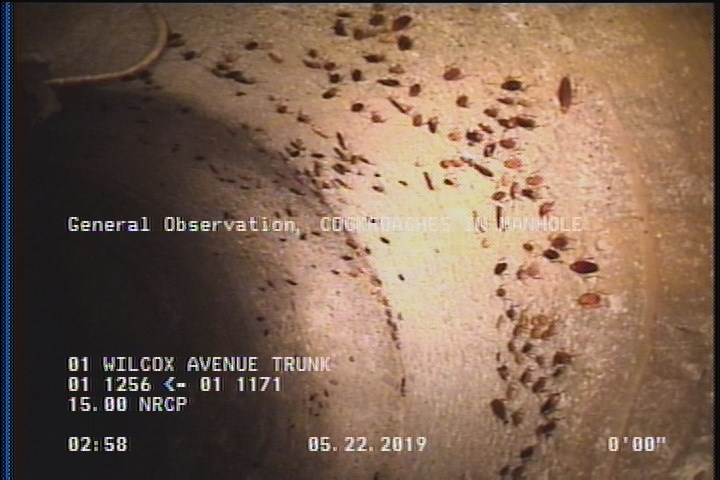

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

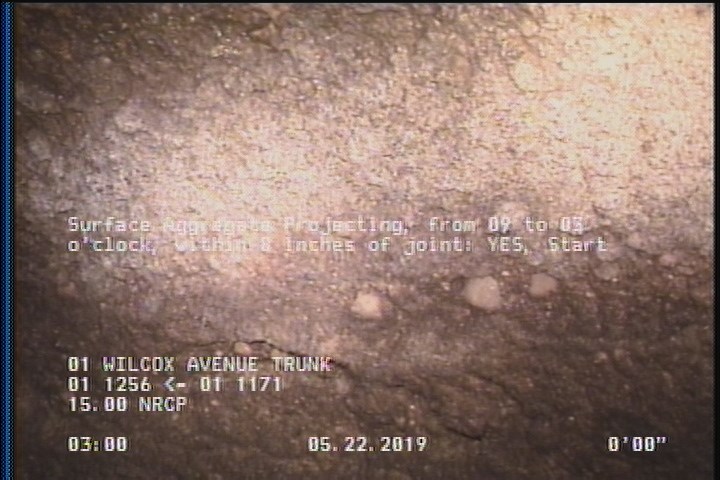

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

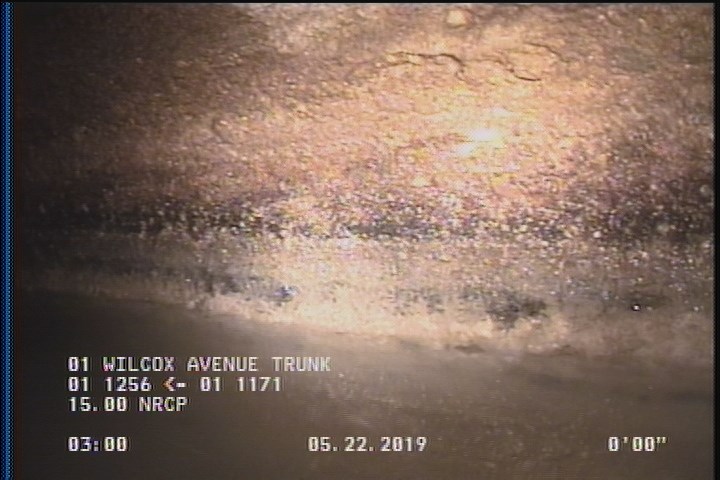

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

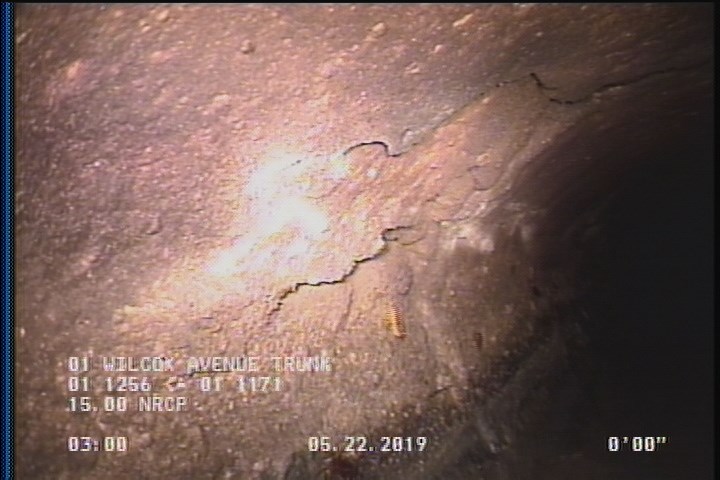

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

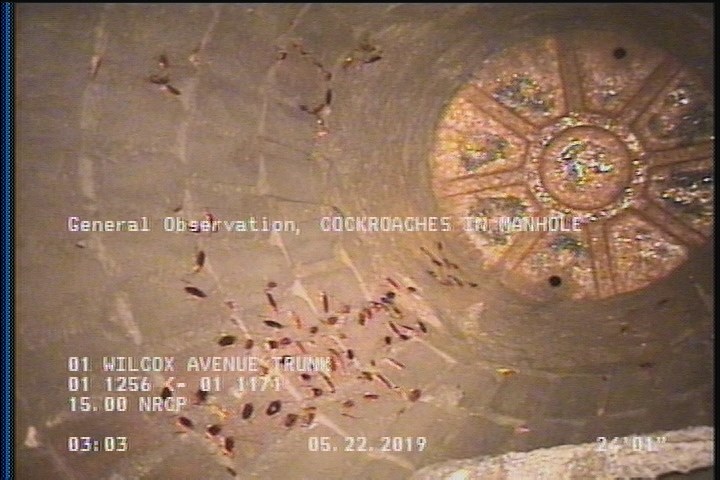

  • General Observation - COCKROACHES IN MANHOLE

    24 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P02188Work order 761350

Observations (14)

DistanceCodeObservation
0MWL—
22.3DAGS—
2SAP—
22.3SSS—
2DAGS—
22.3SAP—
0AMH01 1256
24MGOCAPPED CONNECTION IN MH AT 9'0 9'0
0MWM—
0MGOCOCKROACHES IN MANHOLE
24AMH01 1171
24MGOACTIVE CONNECTION AT MH 3 O'CLOCK
24MGOCOCKROACHES IN MANHOLE
2SSS—

Properties (5)

additional_info
SC378152
custom_field_two
3
customer
LACSD
datetime
2019-05-22T02:46:56-07:00
is_lateral_inspection
false
