Wastewater/Activity/PacpInspection/1.0Apr 22, 2019, 08:33 AM
21 0456_21 0455 _04222019_014558.mp4
- Date
- 04/22/2019
- W/O
- 761208
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00777
- PipeID
- P15665
- Time
- 1:33 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6508
- Sewer Name
- 21 MOUNT SAN ANTONIO TRUNK
- City
- WALNUT
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 28
- Purpose
- Routine Assessment
- Project
- RFIR_WO_761208_TV21084_APR2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 21 0456
- Downstream MH
- 21 0455
- Dir. of Survey
- Downstream
- Length Surveyed
- 352 ft.
- Total Length
- 352 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

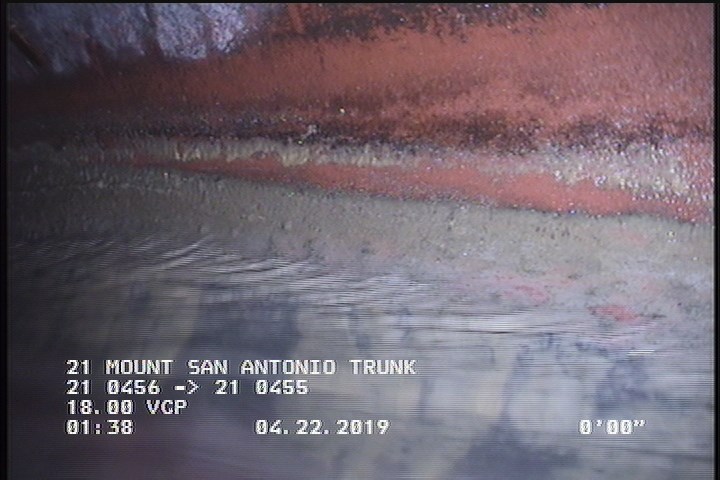

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

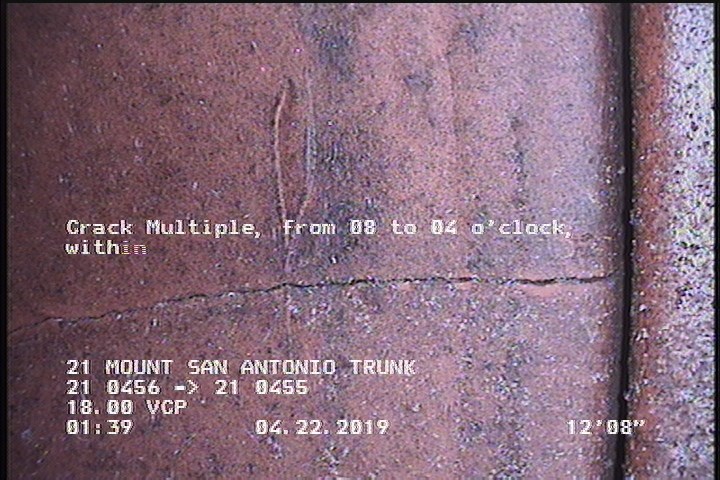

12.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 352 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 12.7 | CM | — |
| 0 | MWL | — |
| 351 | CM | — |
| 0 | MWM | — |
| 0 | AMH | 21 0456 |
| 352 | AMH | 21 0455 |
| 351 | DAGS | — |
| 2 | DAGS | — |
Properties (5)
- additional_info
- SC366226
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-04-22T01:33:40-07:00
- is_lateral_inspection
- false
