Wastewater/Activity/PacpInspection/1.0Apr 19, 2019, 05:58 AM
21 0469_21 0468 _04182019_231121.mp4
- Date
- 04/18/2019
- W/O
- 761208
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00777
- PipeID
- P15679
- Time
- 10:58 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6507
- Sewer Name
- 21 MOUNT SAN ANTONIO TRUNK
- City
- WALNUT
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- RFIR_WO_761208_TV21084_APR2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 21 0469
- Downstream MH
- 21 0468
- Dir. of Survey
- Downstream
- Length Surveyed
- 353 ft.
- Total Length
- 353 ft.
- Structural Index
- 3
- Structural Quick
- 3300
- Structural Rating
- 9
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (5)

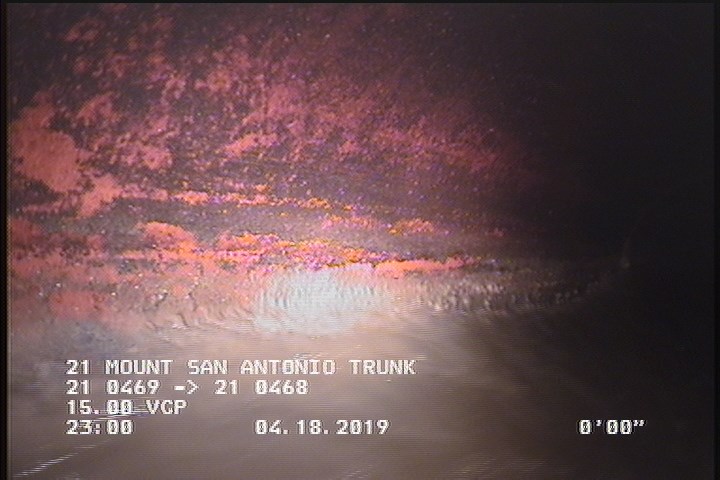

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
12.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

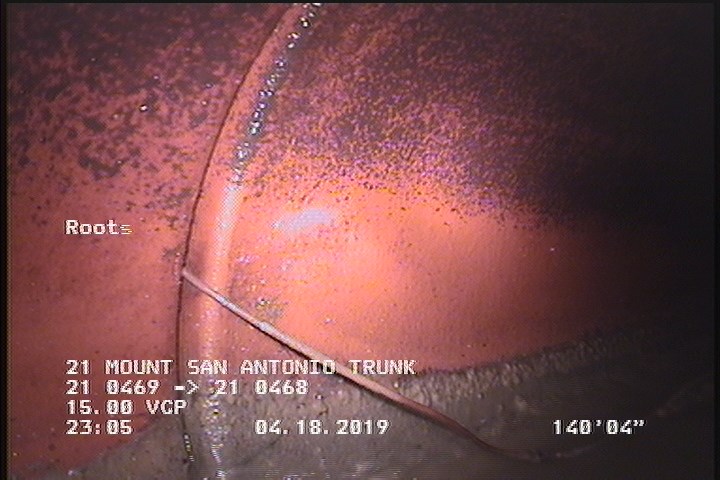

140.3 ft. - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YES

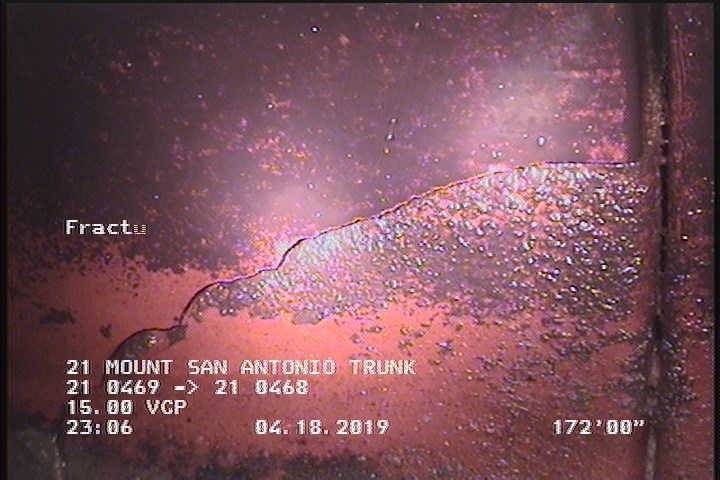

171.9 ft. - Fracture Spiral, from 04 to 06 o'clock, within 8 inches of joint: YES
344.7 ft. - Fracture Spiral, from 02 to 06 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 344.7 | FS | — |
| 350.4 | CM | — |
| 12.1 | CM | — |
| 353 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWL | — |
| 353 | AMH | 21 0468 |
| 140.3 | RFJ | — |
| 0 | AMH | 21 0469 |
| 2 | DAGS | — |
| 171.9 | FS | — |
| 350.4 | DAGS | — |
Properties (5)
- additional_info
- SC366225
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-04-18T22:58:01-07:00
- is_lateral_inspection
- false
