Wastewater/Activity/PacpInspection/1.0Feb 13, 2019, 11:07 AM
G 0143_G 0142_02132019_032915.mp4
- Date
- 02/13/2019
- W/O
- 745594
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z01180
- PipeID
- P01466
- Time
- 3:07 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6272
- Sewer Name
- G JOINT OUTFALL G - UNIT 8
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745594_TV01236_JAN2019
- Sewer Type
- Gravity
- Material
- RCP-CTL
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- G 0143
- Downstream MH
- G 0142
- Dir. of Survey
- Downstream
- Length Surveyed
- 408.2 ft.
- Total Length
- 408.2 ft.
- Structural Index
- 4
- Structural Quick
- 4100
- Structural Rating
- 4
- O&M Index
- 4
- O&M Quick
- 5121
- O&M Rating
- 7
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (2)

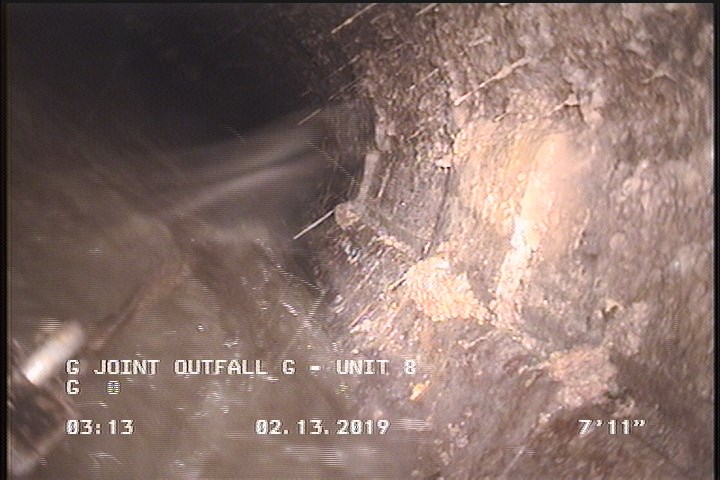

7.9 ft. - Missing Brick, from 09 to 03 o'clock, Start

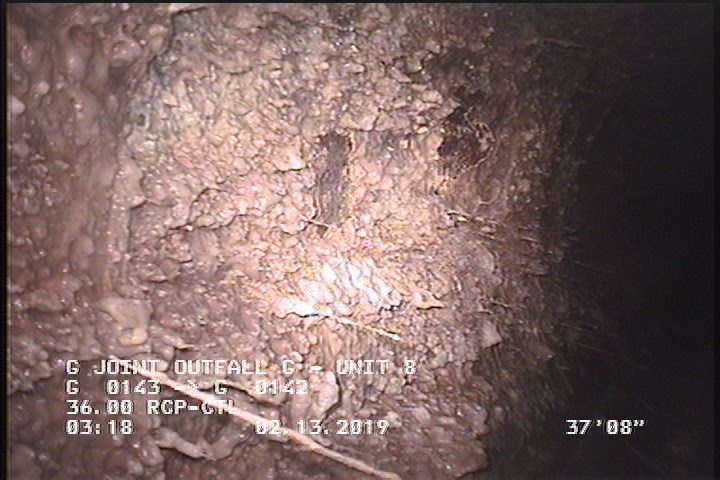

37.7 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | AMH | G 0143 |
| 37.7 | DAGS | — |
| 408.1 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 408.2 | AMH | G 0142 |
| 402.4 | DAGS | — |
| 402.4 | MB | — |
| 7.9 | MB | — |
| 408.2 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
Properties (4)
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2019-02-13T03:07:41-08:00
- is_lateral_inspection
- false
