Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 13, 2019, 11:29 AM

  • G 0142_G 0141_02132019_034148.mp4

Date
02/13/2019
W/O
745594
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z01180
PipeID
P01465
Time
3:29 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6272
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
19
Purpose
Routine Assessment
Project
RFIR_WO_745594_TV01236_JAN2019
Sewer Type
Gravity
Material
RCP-CTL
Shape
Circular
Height
36 in.
Width
36 in.
Upstream MH
G 0142
Downstream MH
G 0141
Dir. of Survey
Downstream
Length Surveyed
346.1 ft.
Total Length
346.1 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
4
O&M Quick
5121
O&M Rating
7
Overall Index
4
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole G 0142 to G 0141
MH: G 0142MH: G 0141downstream0 ft. AMH - Upstream Manhole, Survey Begins - G 01420 ft. MWL - Water Level, 70 %of cross sectional area0 ft. MWM - Water Mark, 95 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK5.8 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES, Start5.8 ft. MB - Missing Brick, from 09 to 03 o'clock, Start346.1 ft. MB - Missing Brick, from 09 to 03 o'clock, Finish346.1 ft. AMH - Downstream Manhole, Survey Ends - G 0141346.1 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (2)

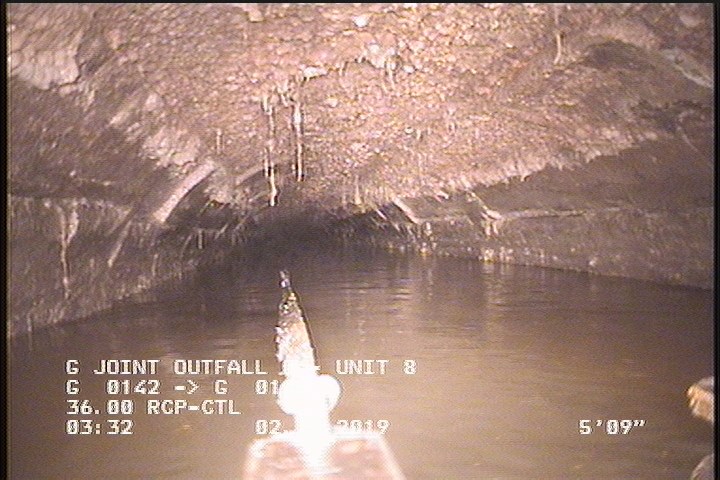

  • Deposits Attached Grease, 10 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES, Start

    5.8 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES, Start

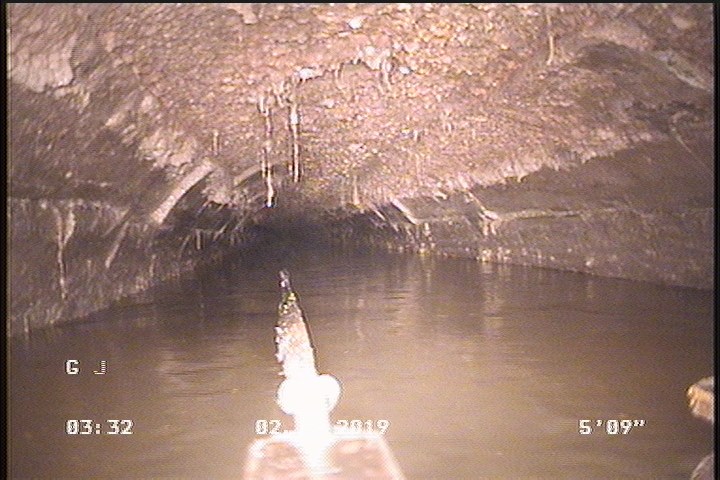

  • Missing Brick, from 09 to 03 o'clock, Start

    5.8 ft. - Missing Brick, from 09 to 03 o'clock, Start

All inspections of P01465Work order 745594

Observations (10)

DistanceCodeObservation
346.1MB—
0AMHG 0142
0MWL—
0MWM—
0MGOCONNECTION AT MH 3 O'CLOCK
346.1AMHG 0141
0MGOCONNECTION AT MH 9 O'CLOCK
5.8DAGS—
5.8MB—
346.1DAGS—

Properties (4)

custom_field_two
1
customer
LACSD
datetime
2019-02-13T03:29:42-08:00
is_lateral_inspection
false
