Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 23, 2017, 09:44 AM

  • 02 1366_02 1365 _102317_024530.mp4

Date
10/23/2017
W/O
668911
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00277
PipeID
P03889
Time
2:44 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4997
Sewer Name
02 JANE STREET BRANCH TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
11A
Purpose
Routine Assessment
Project
WO_668911_TV02072_NOV2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
02 1366
Downstream MH
02 1365
Dir. of Survey
Downstream
Length Surveyed
308.4 ft.
Total Length
308.4 ft.
Structural Index
3
Structural Quick
3L2K
Structural Rating
311
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
315
Pipe schematic from manhole 02 1366 to 02 1365
MH: 02 1366MH: 02 1365downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 13660 ft. MWL - Water Level, 10 %of cross sectional area2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start3.3 ft. CM - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES4 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"8.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start48.2 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"51 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"98.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"100.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"142.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"145.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"162.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"186.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"213 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"239.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"278 ft. TFD - Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: NO, 6", 6" - 40% GREASE283.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"306.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish306.6 ft. MMC - Material Change, Cast Iron307 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish307 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish307.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish307.9 ft. MGO - General Observation - PIPE SEALED AT MH308.4 ft. AMH - Downstream Manhole, Survey Ends - 02 1365

Observation photos (4)

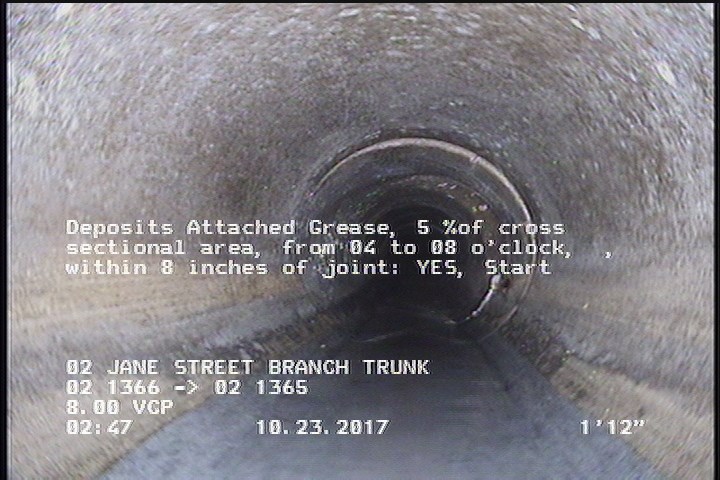

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

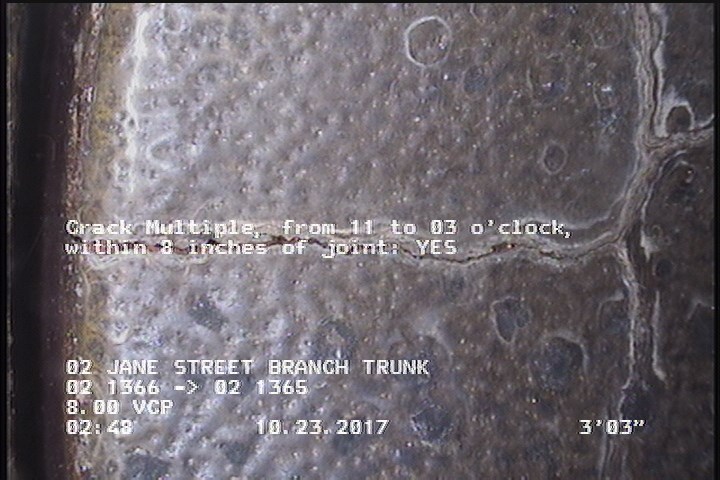

  • Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES

    3.3 ft. - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    8.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

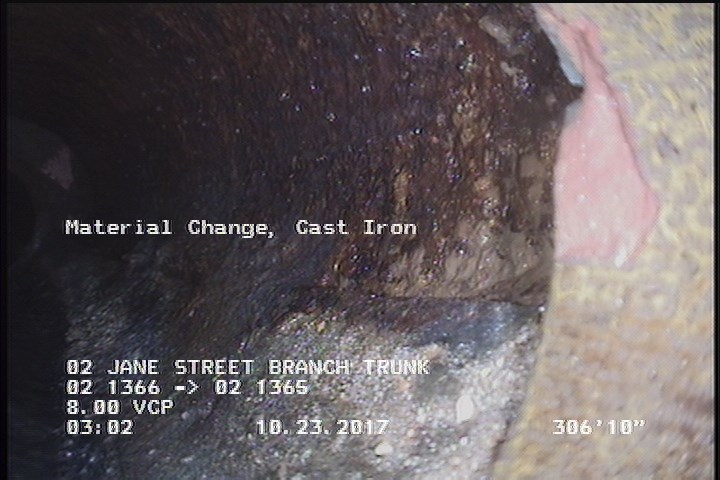

  • Material Change, Cast Iron

    306.6 ft. - Material Change, Cast Iron

All inspections of P03889Work order 668911

Observations (28)

DistanceCodeObservation
48.2TF—
2CM—
239.6TF—
3.3CM—
2SSS—
142.3TF—
306.6CM—
145.1TF—
306.6MMC—
98.3TF—
162.7TF—
307.9DAGS—
4TF—
0MWM—
307.9MGOPIPE SEALED AT MH
278TFD40% GREASE
51TF—
0AMH02 1366
283.4TF—
0MWL—
8.4CM—
307SSS—
186.4TF—
213TF—
2DAGS—
100.7TF—
307CM—
308.4AMH02 1365

Properties (6)

additional_info
SC350351
custom_field_two
3
customer
LACSD
datetime
2017-10-23T02:44:45-07:00
documentation
PROPIPE
is_lateral_inspection
false
