Wastewater/Activity/PacpInspection/1.0Jul 25, 2017, 07:01 AM
22 1072A_22 1072 _01082017_133956.mp4
- Date
- 07/25/2017
- W/O
- 646476
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00812
- PipeID
- P17444
- Time
- 12:01 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4666
- Sewer Name
- 22 IRWINDALE TRUNK, SECTS 2,3,4,&5
- City
- IRWINDALE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_646476_TV22042_JUL2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 1072A
- Downstream MH
- 22 1072
- Dir. of Survey
- Downstream
- Length Surveyed
- 241.5 ft.
- Total Length
- 241.5 ft.
- Structural Index
- 3
- Structural Quick
- 3H21
- Structural Rating
- 137
- O&M Index
- 2
- O&M Quick
- 2I00
- O&M Rating
- 96
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 233
Observation photos (3)
2.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

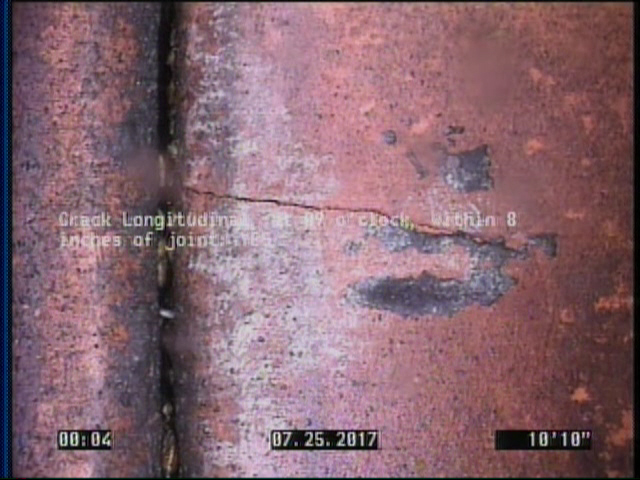

10.8 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES
15.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 17.3 | TFC | — |
| 2.6 | DAGS | — |
| 145.6 | TFC | — |
| 217.6 | TFC | — |
| 241.5 | DAGS | — |
| 174.2 | TFC | — |
| 0 | AMH | 22 1072A |
| 10.8 | CL | — |
| 15.7 | CM | — |
| 0 | MWM | — |
| 241.5 | CM | — |
| 70.9 | TFC | — |
| 241.5 | AMH | 22 1072 |
Properties (6)
- additional_info
- SC345604
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-25T00:01:33-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
