Wastewater/Activity/PacpInspection/1.0Jul 19, 2017, 06:52 AM
- Date
- 07/18/2017
- W/O
- 635631
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00438
- PipeID
- P06715
- Time
- 11:52 PM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3990-SC345555
- Sewer Name
- 05 EL NIDO TRUNK
- City
- TORRANCE CA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- WO_635631_TV05253_JUN2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 05 1489
- Downstream MH
- 05 1488
- Dir. of Survey
- Downstream
- Length Surveyed
- 134.2 ft.
- Total Length
- 134.2 ft.
- Structural Index
- 3
- Structural Quick
- 3D00
- Structural Rating
- 78
- O&M Index
- 2
- O&M Quick
- 2D00
- O&M Rating
- 52
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 130
Observation photos (3)

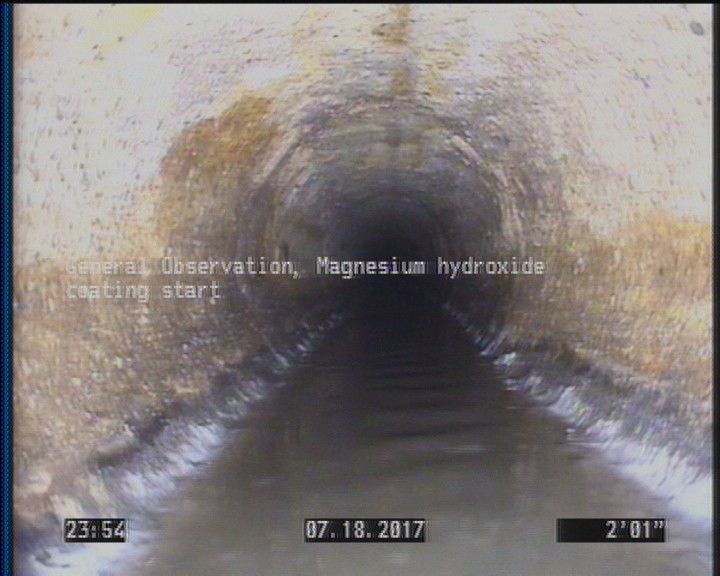

2 ft. - General Observation - Magnesium hydroxide coating start

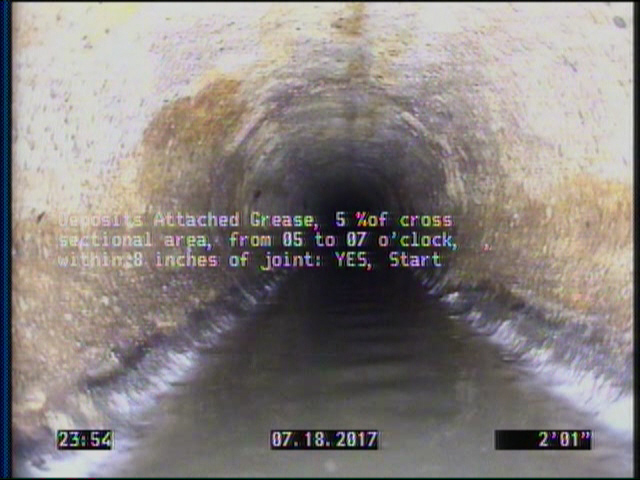

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

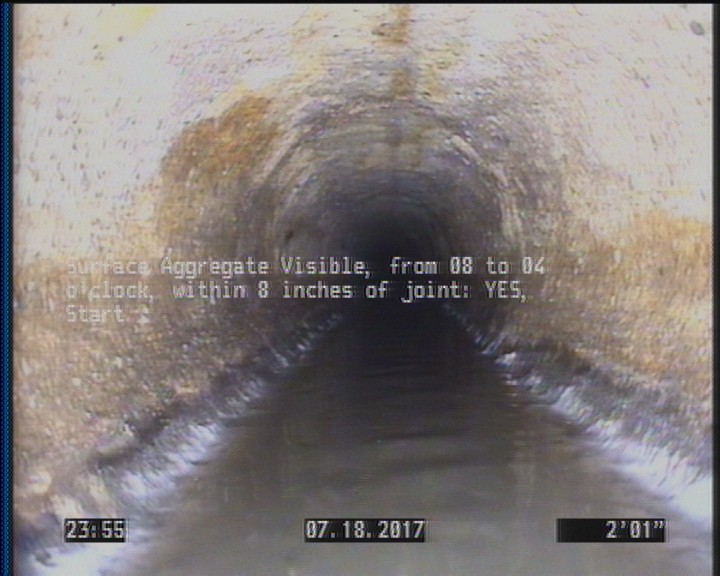

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 131.3 | DAGS | — |
| 2 | MGO | Magnesium hydroxide coating start |
| 2 | DAGS | — |
| 0 | MWM | — |
| 131.3 | SAV | — |
| 131.3 | MGO | Magnesium hydroxide coating finish |
| 2 | SAV | — |
| 134.2 | AMH | 05 1488 |
| 0 | MWL | — |
| 0 | AMH | 05 1489 |
Properties (4)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-18T23:52:49-07:00
- is_lateral_inspection
- false
