Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 4, 2018, 07:36 AM

  • B 0453_B 0452 _04042018_003749.mp4

Date
04/04/2018
W/O
698202
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00093
PipeID
P08965
Time
12:36 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5517
Sewer Name
B JOINT OUTFALL B - UNIT 5C
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
11
Purpose
Routine Assessment
Project
WO_698202_DISTRICT16_APR2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
B 0453
Downstream MH
B 0452
Dir. of Survey
Downstream
Length Surveyed
285.7 ft.
Total Length
285.7 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
4
O&M Quick
4232
O&M Rating
14
Overall Index
3
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole B 0453 to B 0452
MH: B 0453MH: B 0452downstream0 ft. AMH - Upstream Manhole, Survey Begins - B 04530 ft. MGO - General Observation - SERVICE CONNECTION AT 6 O' CLOCK AT MH0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH2.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.1 ft. MGO - General Observation - MAG COAT83.5 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"145 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"147.3 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"212.6 ft. RMC - Roots Medium Connection, at 12 o'clock, 20 %, within 8 inches of joint: NO214.4 ft. RML - Roots Medium Lateral, at 12 o'clock, 30 %, within 8 inches of joint: NO214.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"272.7 ft. RBC - Roots Ball Connection, from 02 to 05 o'clock, 55 %, within 8 inches of joint: NO272.8 ft. RBL - Roots Ball Lateral, at 02 o'clock, 90 %, within 8 inches of joint: NO272.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"277 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"285.7 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH285.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish285.7 ft. AMH - Downstream Manhole, Survey Ends - B 0452

Observation photos (4)

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

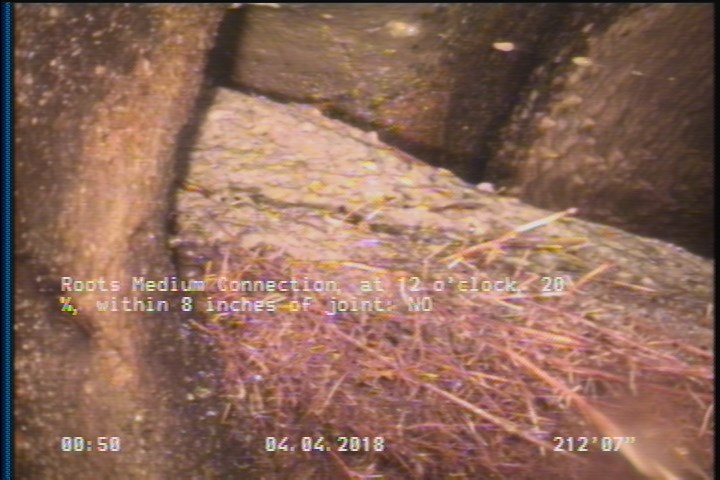

  • Roots Medium Connection, at 12 o'clock, 20 %, within 8 inches of joint: NO

    212.6 ft. - Roots Medium Connection, at 12 o'clock, 20 %, within 8 inches of joint: NO

  • Roots Ball Connection, from 02 to 05 o'clock, 55 %, within 8 inches of joint: NO

    272.7 ft. - Roots Ball Connection, from 02 to 05 o'clock, 55 %, within 8 inches of joint: NO

  • Roots Ball Lateral, at 02 o'clock, 90 %, within 8 inches of joint: NO

    272.8 ft. - Roots Ball Lateral, at 02 o'clock, 90 %, within 8 inches of joint: NO

All inspections of P08965Work order 698202

Observations (20)

DistanceCodeObservation
212.6RMC—
0AMHB 0453
214.4RML—
145TF—
0MGOSERVICE CONNECTION AT 6 O' CLOCK AT MH
0MWM—
285.7MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
214.4TF—
2.1SAV—
272.8RBL—
277TFC—
147.3TFC—
0MWL—
272.8TF—
83.5TF—
272.7RBC—
285.7SAV—
285.7AMHB 0452
2.1MGOMAG COAT
0MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH

Properties (6)

additional_info
SC358724
custom_field_two
3
customer
LACSD
datetime
2018-04-04T00:36:48-07:00
documentation
PROPIPE
is_lateral_inspection
false
