Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 4, 2018, 08:48 AM

  • B 0449_B 0448 _04042018_014944.mp4

Date
04/04/2018
W/O
698202
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00093
PipeID
P08961
Time
1:48 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5517
Sewer Name
B JOINT OUTFALL B - UNIT 5C
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
11
Purpose
Routine Assessment
Project
WO_698202_DISTRICT16_APR2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
B 0449
Downstream MH
B 0448
Dir. of Survey
Downstream
Length Surveyed
296 ft.
Total Length
296 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
3315
O&M Rating
14
Overall Index
2
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole B 0449 to B 0448
MH: B 0449MH: B 0448downstream0 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH0 ft. AMH - Upstream Manhole, Survey Begins - B 04490 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area2.8 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start2.8 ft. MGO - General Observation - MAG COAT17.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"59.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"72.5 ft. RFJ - Roots Fine Joint, from 03 to 05 o'clock, within 8 inches of joint: YESR74.7 ft. RML - Roots Medium Lateral, at 02 o'clock, 25 %, within 8 inches of joint: NO74.7 ft. RFC - Roots Fine Connection, from 02 to 05 o'clock, within 8 inches of joint: NO74.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"137.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"141.4 ft. RFL - Roots Fine Lateral, at 02 o'clock141.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"189.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"193.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"193.3 ft. RML - Roots Medium Lateral, at 02 o'clock, 20 %, within 8 inches of joint: NO193.3 ft. RFC - Roots Fine Connection, from 02 to 05 o'clock, within 8 inches of joint: NO253.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"253.1 ft. RML - Roots Medium Lateral, at 12 o'clock, 15 %, within 8 inches of joint: NO253.1 ft. RFC - Roots Fine Connection, at 12 o'clock, within 8 inches of joint: NO293.8 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish296 ft. AMH - Downstream Manhole, Survey Ends - B 0448

Observation photos (3)

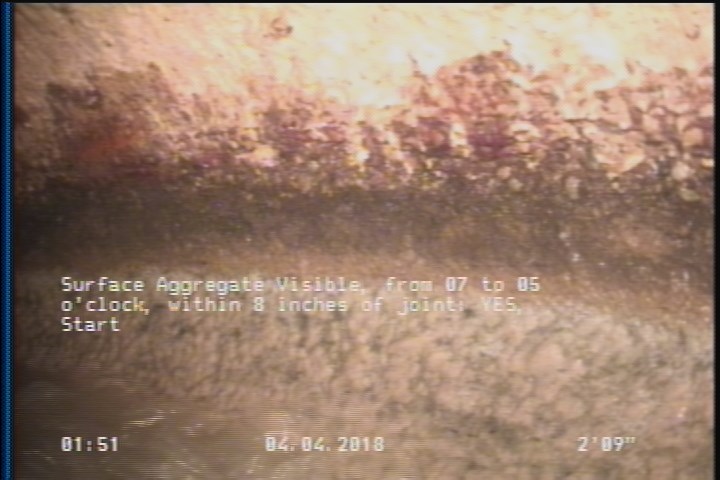

  • Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    2.8 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

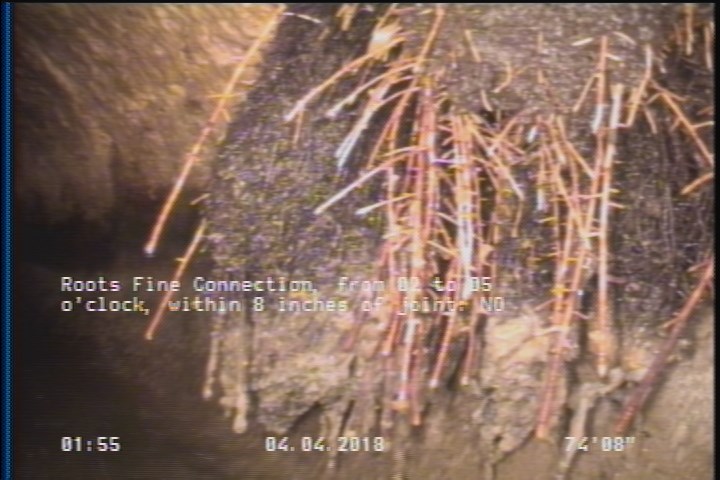

  • Roots Fine Connection, from 02 to 05 o'clock, within 8 inches of joint: NO

    74.7 ft. - Roots Fine Connection, from 02 to 05 o'clock, within 8 inches of joint: NO

  • Roots Fine Connection, from 02 to 05 o'clock, within 8 inches of joint: NO

    193.3 ft. - Roots Fine Connection, from 02 to 05 o'clock, within 8 inches of joint: NO

All inspections of P08961Work order 698202

Observations (24)

DistanceCodeObservation
0MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
2.8SAV—
141.4RFL—
74.7RML—
193.3TF—
17.8TF—
74.7RFC—
74.7TF—
193.3RML—
59.7TFC—
253.1TF—
0AMHB 0449
2.8MGOMAG COAT
293.8SAV—
137.8TFC—
72.5RFJ—
141.4TF—
296AMHB 0448
193.3RFC—
189.5TFC—
0MWL—
253.1RML—
0MWM—
253.1RFC—

Properties (6)

additional_info
SC358724
custom_field_two
3
customer
LACSD
datetime
2018-04-04T01:48:55-07:00
documentation
PROPIPE
is_lateral_inspection
false
