Wastewater/Activity/PacpInspection/1.0Apr 4, 2018, 07:15 AM
B 0457_B 0456 _04042018_001647.mp4
- Date
- 04/04/2018
- W/O
- 698202
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00093
- PipeID
- P20279
- Time
- 12:15 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5517
- Sewer Name
- B JOINT OUTFALL B - UNIT 5C
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_698202_DISTRICT16_APR2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- B 0456
- Downstream MH
- B 0457
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

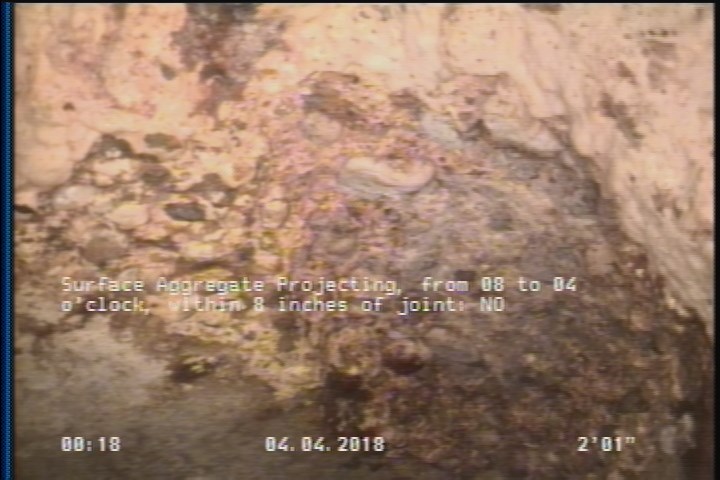

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO

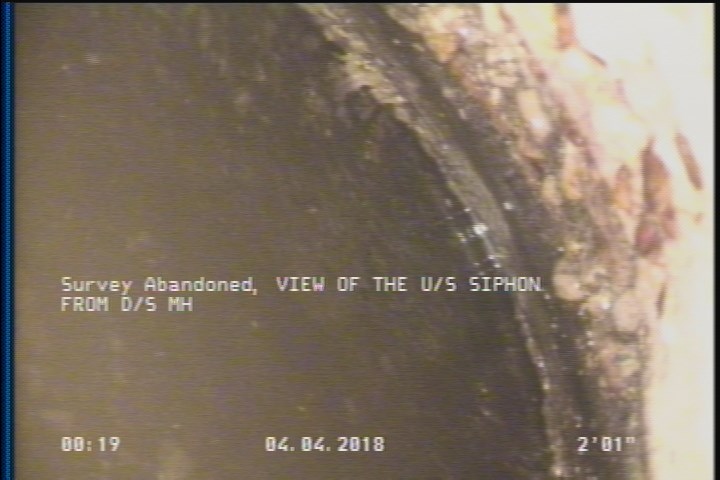

2.1 ft. - Survey Abandoned - VIEW OF THE U/S SIPHON FROM D/S MH
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | B 0456 N |
| 2.1 | SAP | — |
| 0 | MWL | — |
| 2.1 | MSA | VIEW OF THE U/S SIPHON FROM D/S MH |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC358724
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-04-04T00:15:25-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
