Wastewater/Activity/PacpInspection/1.0Mar 30, 2018, 07:17 AM
B 0445_B 0444 _30032018_002434.mp4
- Date
- 03/30/2018
- W/O
- 698202
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00093
- PipeID
- P08957
- Time
- 12:17 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5504
- Sewer Name
- B JOINT OUTFALL B - UNIT 5C
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_698202_DISTRICT16_APR2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- B 0445
- Downstream MH
- B 0444
- Dir. of Survey
- Downstream
- Length Surveyed
- 68.5 ft.
- Total Length
- 68.5 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 39
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 43
Observation photos (2)

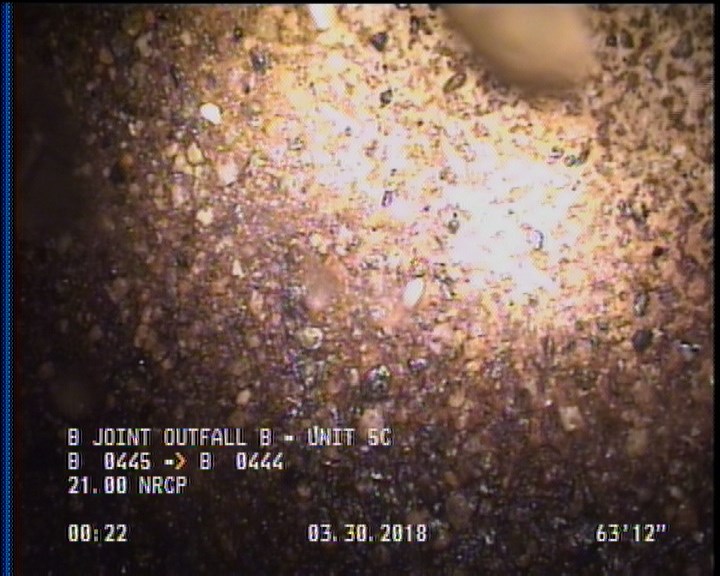

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

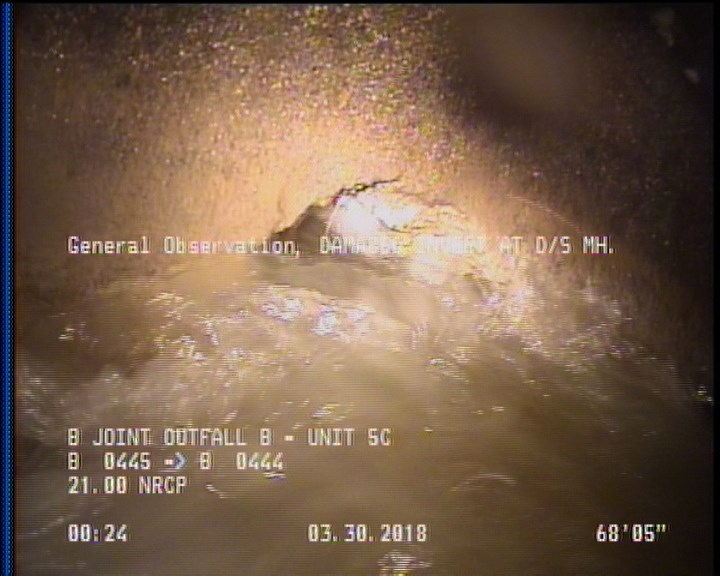

68.5 ft. - General Observation - DAMAGED INVERT AT D/S MANHOLE/POSSIBLE CONNECTION
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 68.5 | SAP | — |
| 68.5 | MGO | DAMAGED INVERT AT D/S MANHOLE/POSSIBLE CONNECTION |
| 68.5 | AMH | B 0444 |
| 5.5 | MGO | MAG COATING THROUGHOUT 60% |
| 0 | AMH | B 0445 |
| 0 | MWM | — |
| 2 | SAP | — |
Properties (6)
- additional_info
- SC358513
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-03-30T00:17:47-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
