Wastewater/Activity/PacpInspection/1.0Jun 12, 2019, 04:44 PM
H 0711_H 0710_6122019_094839.mp4
- Date
- 06/12/2019
- W/O
- 0772128
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00941
- PipeID
- P11118
- Time
- 9:44 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1232
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- WHITTIER
- Loc. details
- Yard
- Location Code
- Y
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- 20190612SHO_JOINT_OUTFALL_H_UNIT_9B
- Material
- NRCP
- Shape
- Circular
- Height
- 25 in.
- Upstream MH
- H 0711
- Downstream MH
- H 0710
- Dir. of Survey
- Downstream
- Length Surveyed
- 525.5 ft.
- Total Length
- 525.5 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (2)

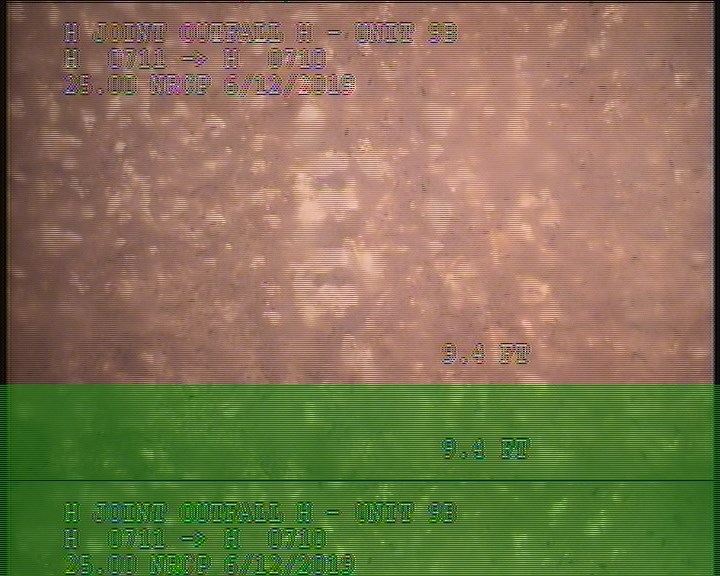

0 ft. - Water Mark, 50 %of cross sectional area

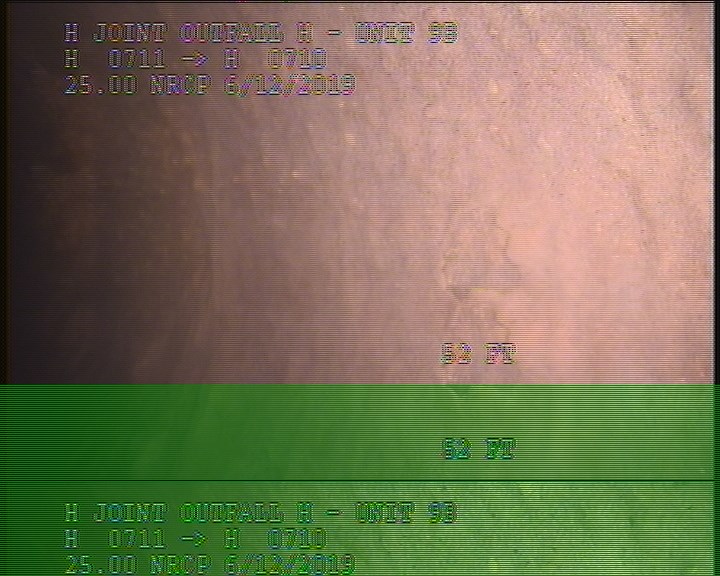

52 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 525.5 | SAV | — |
| 9.4 | SAV | — |
| 0 | AMH | H 0711 |
| 525.5 | AMH | MH H 710 DOES NOT EXIST |
| 525.5 | MGO | 5% OR LESS DEBRIS THROUGHOUT |
| 52 | SSS | — |
| 525.5 | SSS | — |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-06-12T09:44:24-07:00
- documentation
- OBREGON,C ASTILLO, YOUNG
- is_lateral_inspection
- false
