Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 11, 2019, 09:22 AM

  • B 1358_B 1357_6112019_025614.mp4

Date
06/11/2019
W/O
0771792
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01126
PipeID
P25070
Time
2:22 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1229
Sewer Name
B JOINT OUTFALL B - UNIT 6J
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
08
Purpose
Routine Assessment
Project
20190610MDM_JOINT_OUTFALL_B_UNIT_6J
Material
Vitrified Clay Pipe
Shape
Circular
Height
16 in.
Upstream MH
B 1357
Downstream MH
B 1358
Dir. of Survey
Upstream
Length Surveyed
185.2 ft.
Total Length
185.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole B 1357 to B 1358
MH: B 1357MH: B 1358upstream0 ft. AMH - Upstream Manhole, Survey Ends - 3:20AN3.1 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 6" - Active26.8 ft. MGO - General Observation - WHITE MATERIAL ON PIPE FINISH94.2 ft. MGO - General Observation - WHITE BUILDUP177.2 ft. MGO - General Observation - 16" VCP + CIPP183.2 ft. MGO - General Observation - WHITE MATERIAL ON LINER START185.2 ft. AMH - Downstream Manhole, Survey Begins - 3:00AM185.2 ft. MWL - Water Level, 10 %of cross sectional area185.2 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (3)

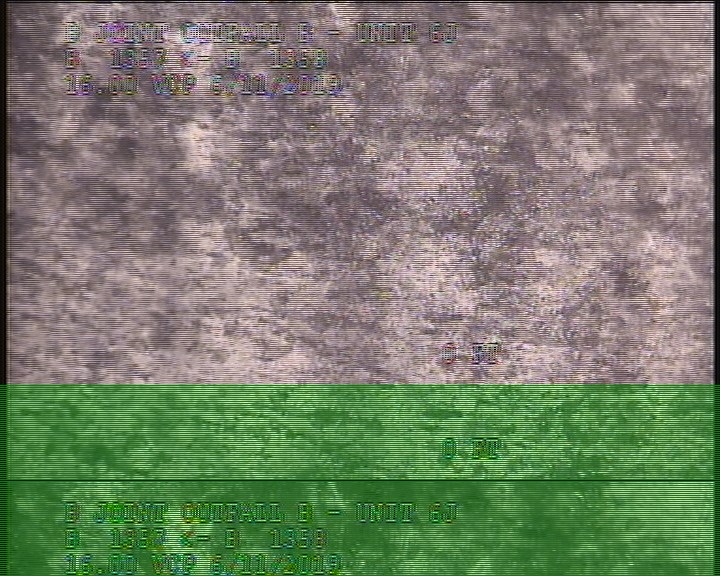

  • General Observation - WHITE MATERIAL ON LINER START

    2 ft. - General Observation - WHITE MATERIAL ON LINER START

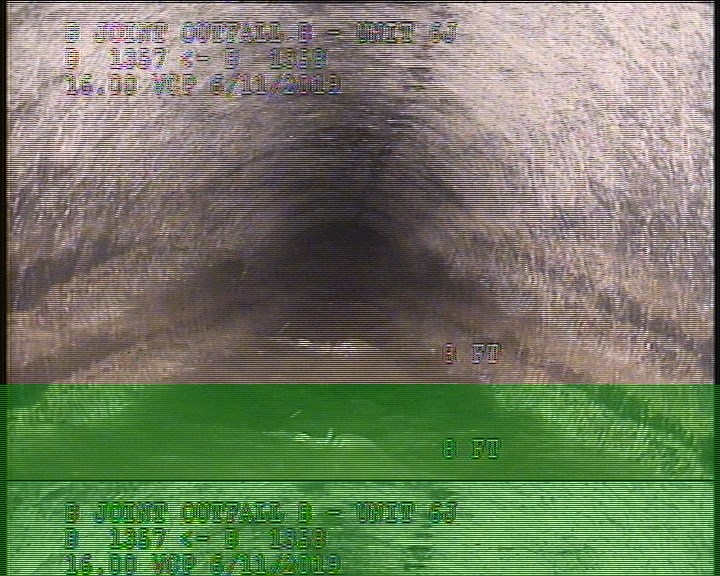

  • General Observation - 16" VCP + CIPP

    8 ft. - General Observation - 16" VCP + CIPP

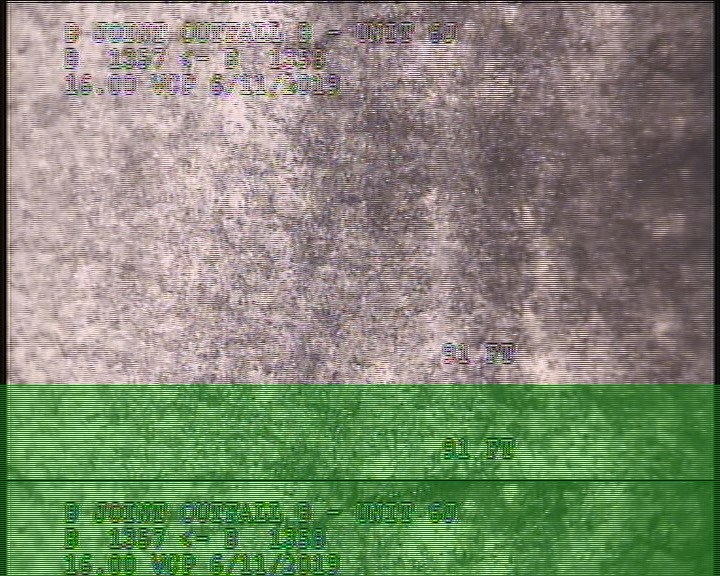

  • General Observation - WHITE BUILDUP

    91 ft. - General Observation - WHITE BUILDUP

All inspections of P25070Work order 0771792

Observations (9)

DistanceCodeObservation
158.4MGOWHITE MATERIAL ON PIPE FINISH
2MGOWHITE MATERIAL ON LINER START
182.1TBActive
0AMH3:00AM
91MGOWHITE BUILDUP
8MGO16" VCP + CIPP
0MWL—
185.2AMH3:20AN
0MWM—

Properties (7)

custom_field_three
CIPP LINER GOOD COND
custom_field_two
4
customer
LACSD
datetime
2019-06-11T02:22:25-07:00
documentation
MARTIN,REVELES,OLIVER 111,SHADLER
is_lateral_inspection
false
lining
CIPP
