Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 5, 2018, 04:14 PM

  • D 0083_D 0084_952018_132318.mp4

Date
09/05/2018
W/O
0726351
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00154
PipeID
P09983
Time
9:14 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7801
Sewer Name
D JOINT OUTFALL D - UNIT 4
City
HAWTHORNE
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
29180905DF_JOINT_OUTFALL_D_UNIT_4
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
D 0083
Downstream MH
D 0082
Dir. of Survey
Downstream
Length Surveyed
181.4 ft.
Total Length
181.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole D 0083 to D 0082
MH: D 0083MH: D 0082downstream0 ft. AMH - Upstream Manhole, Survey Begins - 1:22 PM0.1 ft. MWL - Water Level, 30 %of cross sectional area0.1 ft. MWM - Water Mark, 35 %of cross sectional area1.4 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG19.3 ft. MGP - General Photograph73.9 ft. MGP - General Photograph100.4 ft. MGP - General Photograph179.2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70% MAG181.4 ft. AMH - Downstream Manhole, Survey Ends - 1:39 PM181.4 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach

Observation photos (4)

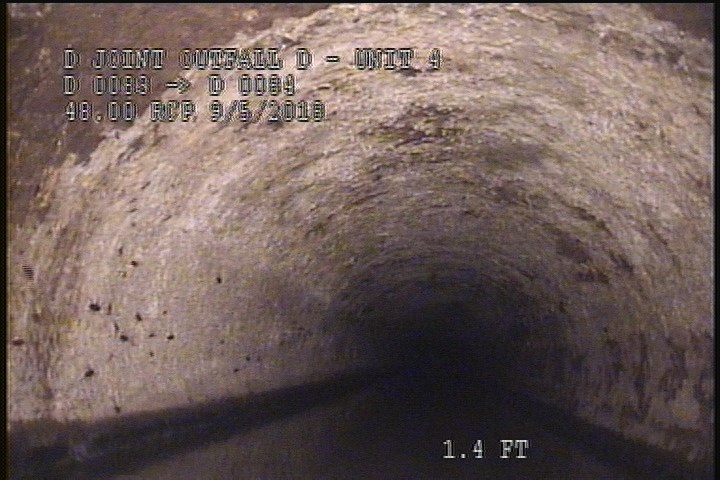

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG

    1.4 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG

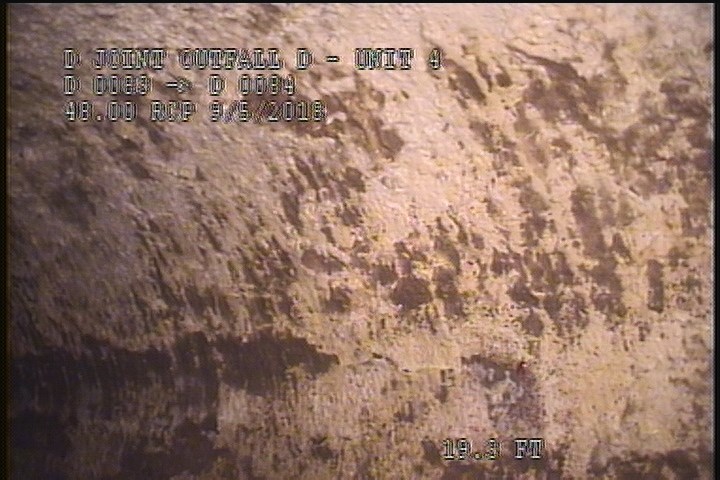

  • General Photograph

    19.3 ft. - General Photograph

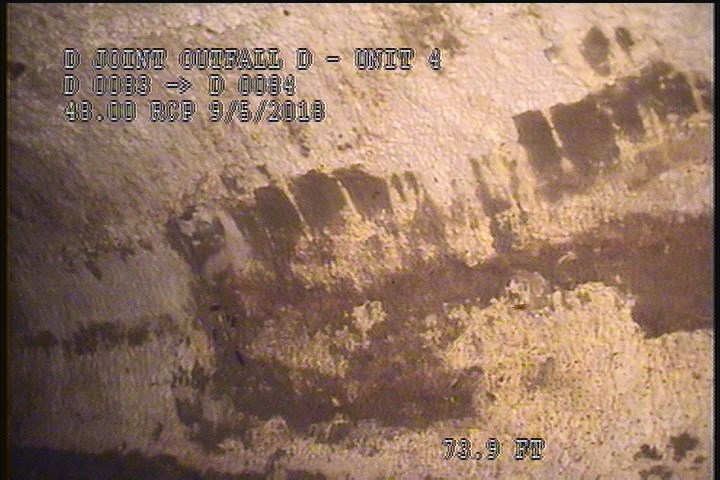

  • General Photograph

    73.9 ft. - General Photograph

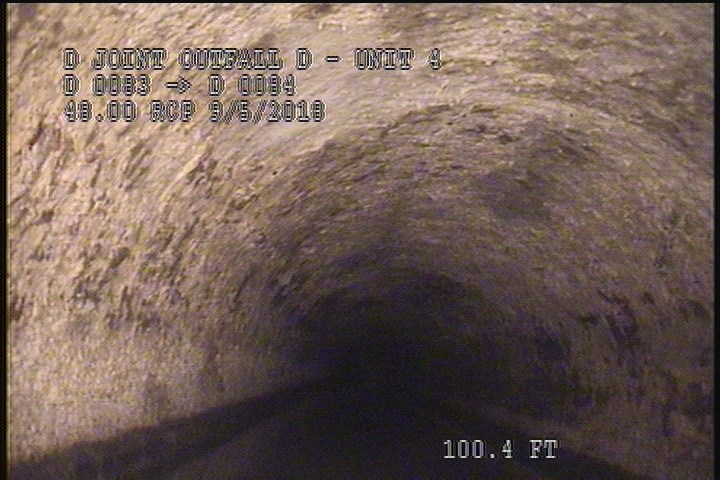

  • General Photograph

    100.4 ft. - General Photograph

All inspections of P09983Work order 0726351

Observations (10)

DistanceCodeObservation
19.3MGP—
0AMH1:22 PM
0.1MWL—
181.4AMH1:39 PM
100.4MGP—
181.4MGOPeeling & Flaking Throughout The Reach
179.2SZ70% MAG
0.1MWM—
73.9MGP—
1.4SZ70% MAG

Properties (6)

additional_info
ON CSREEN DISPLAY HAS WRONG MHS ON IT. CORRECT DISPLAY IS U/S MH(D0083) AND D/S MH IS (D0082)
custom_field_two
3
customer
LACSD
datetime
2018-09-05T09:14:10-07:00
documentation
FRANKLIN, PARAISO, VENDRYES, SHADLER
is_lateral_inspection
false
