Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 5, 2018, 07:48 AM

  • Section#6_08 0470_08 0469__952018__I0061.mp4

Date
09/05/2018
W/O
0717855
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00026
PipeID
P00526
Time
12:48 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0061
Sewer Name
08 216TH STREET TRUNK
City
TORRANCE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Capital Improvement Program Assesment
Project
20180904MDM_216TH_STREET_TRUNK
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
08 0470
Downstream MH
08 0469
Dir. of Survey
Downstream
Length Surveyed
435.4 ft.
Total Length
435.4 ft.
Structural Index
5
Structural Quick
5R4P
Structural Rating
829
O&M Index
5
O&M Quick
5141
O&M Rating
9
Overall Index
5
Overall Quick
—
Overall Rating
838
Pipe schematic from manhole 08 0470 to 08 0469
MH: 08 0470MH: 08 0469downstream0 ft. MGO - General Observation - MH CONN 6:00 OPEN0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. MGO - General Observation - MH CONN 9:00 ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 4:05AM2 ft. SRC - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - CORRODED BROKEN REBAR2 ft. MGO - General Observation - MAG COAT 90% START 9:00 TO 3:002 ft. MGO - General Observation - MISSING TILES 95% START2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG13.1 ft. MGO - General Observation - 80% TILES IN PLACE33.3 ft. MGO - General Observation - MISSING TIULES 100%START51.1 ft. SRC - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR65.2 ft. SMW - Surface Missing Wall, from 02 to 03 o'clock, within 8 inches of joint: NO - PEELING TILE MORTAR-POSSIBLE SOIL VISIBLE70.9 ft. SRC - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - MISSING REBAR CORRISON BEYOUND REBAR77.6 ft. MGO - General Observation - 30% TILES IN PLACE START109.4 ft. SRC - Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - BROKEN MISSING REBAR CORRISIN BEYOUND REBAR109.4 ft. SRC - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - CORRODED BROKEN REBAR109.4 ft. SAM - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG109.4 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG109.4 ft. SRC - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - MISSING REBAR CORRISON BEYOUND REBAR109.4 ft. MWM - Water Mark, 80 %of cross sectional area111 ft. MGO - General Observation - MISSING TILES 80% START165.2 ft. MGO - General Observation - PEELING TILE MORTAR165.2 ft. MGO - General Observation - PEELING TILE MORTAR-POSSIBLE SOIL375 ft. SRC - Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: NO - BROKEN REBAR434.8 ft. SAM - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG434.8 ft. MGO - General Observation - 95% MAG COAT FINISH434.8 ft. MGO - General Observation - MISSING TILES 80% FINISH434.8 ft. SRC - Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - BROKEN MISSING REBAR CORRISON BEYOUND REBAR435.4 ft. AMH - Downstream Manhole, Survey Ends - 5:00AM

Observation photos (12)

  • Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - CORRODED BROKEN REBAR

    2 ft. - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - CORRODED BROKEN REBAR

  • General Observation - MAG COAT 90% START 9:00 TO 3:00

    2 ft. - General Observation - MAG COAT 90% START 9:00 TO 3:00

  • General Observation - 80% TILES IN PLACE

    13.1 ft. - General Observation - 80% TILES IN PLACE

  • General Observation - MISSING TIULES 100%START

    33.3 ft. - General Observation - MISSING TIULES 100%START

  • Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR

    51.1 ft. - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR

  • Surface Missing Wall, from 02 to 03 o'clock, within 8 inches of joint: NO - PEELING TILE MORTAR-POSSIBLE SOIL VISIBLE

    65.2 ft. - Surface Missing Wall, from 02 to 03 o'clock, within 8 inches of joint: NO - PEELING TILE MORTAR-POSSIBLE SOIL VISIBLE

  • Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - MISSING REBAR CORRISON BEYOUND REBAR

    70.9 ft. - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - MISSING REBAR CORRISON BEYOUND REBAR

  • General Observation - 30% TILES IN PLACE START

    77.6 ft. - General Observation - 30% TILES IN PLACE START

  • General Observation - MISSING TILES 80% START

    111 ft. - General Observation - MISSING TILES 80% START

  • General Observation - PEELING TILE MORTAR

    165.2 ft. - General Observation - PEELING TILE MORTAR

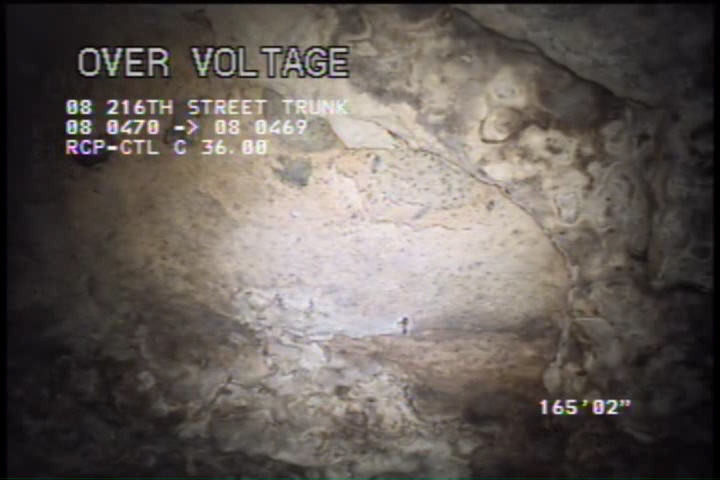

  • General Observation - PEELING TILE MORTAR-POSSIBLE SOIL

    165.2 ft. - General Observation - PEELING TILE MORTAR-POSSIBLE SOIL

  • Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: NO - BROKEN REBAR

    375 ft. - Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: NO - BROKEN REBAR

All inspections of P00526Work order 0717855

Observations (29)

DistanceCodeObservation
109.4SRCBROKEN MISSING REBAR CORRISIN BEYOUND REBAR
111MGOMISSING TILES 80% START
70.9SRCMISSING REBAR CORRISON BEYOUND REBAR
13.1MGO80% TILES IN PLACE
435.4AMH5:00AM
109.4SRCCORRODED BROKEN REBAR
0MGOMH CONN 6:00 OPEN
2SRCCORRODED BROKEN REBAR
375SRCBROKEN REBAR
0MWM—
109.4SAMSEVERE AGG
2MGOMAG COAT 90% START 9:00 TO 3:00
33.3MGOMISSING TIULES 100%START
51.1SRCLONG & CIRCUM REBAR
434.8SAMSEVERE AGG
0MGOMH CONN 9:00 ACTIVE
165.2MGOPEELING TILE MORTAR
2MGOMISSING TILES 95% START
109.4SAMSEVERE AGG
2SAMSEVERE AGG
434.8MGO95% MAG COAT FINISH
65.2SMWPEELING TILE MORTAR-POSSIBLE SOIL VISIBLE
77.6MGO30% TILES IN PLACE START
434.8MGOMISSING TILES 80% FINISH
434.8SRCBROKEN MISSING REBAR CORRISON BEYOUND REBAR
109.4SRCMISSING REBAR CORRISON BEYOUND REBAR
0AMH4:05AM
165.2MGOPEELING TILE MORTAR-POSSIBLE SOIL
109.4MWM—

Properties (6)

custom_field_three
CORRISON BEYOUND REBAR
custom_field_two
1
customer
LACSD
datetime
2018-09-05T00:48:11-07:00
documentation
MARTIN,REVELES,OLIVER 111,YOUNG
is_lateral_inspection
false
