Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 16, 2018, 05:14 PM

  • 02 1924_02 1923_8162018_102455.mp4

Date
08/16/2018
W/O
07232227
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00238
PipeID
P04272
Time
10:14 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7788
Sewer Name
02 BELVEDERE TRUNK
City
EAST LOS ANGELES
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
05
Purpose
Routine Assessment
Project
20180816SHO_BELVEDERE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
02 1924
Downstream MH
02 1923
Dir. of Survey
Downstream
Length Surveyed
245.2 ft.
Total Length
245.2 ft.
Structural Index
3
Structural Quick
4133
Structural Rating
19
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
19
Pipe schematic from manhole 02 1924 to 02 1923
MH: 02 1924MH: 02 1923downstream0 ft. AMH - Upstream Manhole, Survey Begins - MH 19240 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area24.7 ft. FM - Fracture Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES44.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start48.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"50 ft. FS - Fracture Spiral, from 01 to 02 o'clock, within 8 inches of joint: YES50 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish54 ft. FS - Fracture Spiral, from 01 to 02 o'clock, within 8 inches of joint: YES, Finish59.5 ft. CM - Crack Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES100.7 ft. CS - Crack Spiral, from 07 to 09 o'clock, within 8 inches of joint: YES208.3 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES213.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES225.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"245.2 ft. AMH - Downstream Manhole, Survey Ends - MH 1923

Observation photos (2)

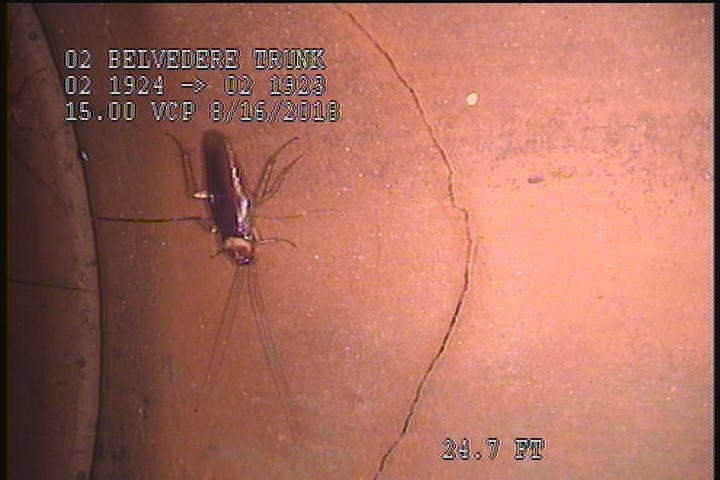

  • Fracture Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

    24.7 ft. - Fracture Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

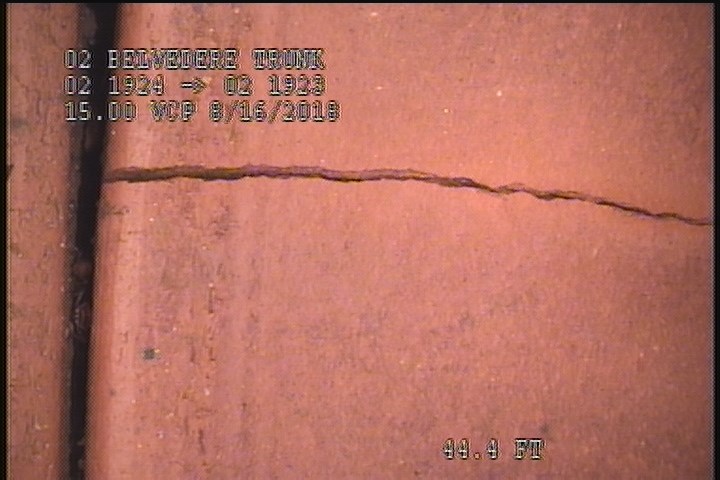

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    44.4 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P04272Work order 07232227

Observations (15)

DistanceCodeObservation
54FS—
208.3CL—
100.7CS—
50FS—
0AMHMH 1924
24.7FM—
50FL—
48.4TFC—
0MWL—
225.6TFC—
0MWM—
44.4FL—
245.2AMHMH 1923
213.4CL—
59.5CM—

Properties (6)

custom_field_three
FRACTURES
custom_field_two
2
customer
LACSD
datetime
2018-08-16T10:14:16-07:00
documentation
OBREGON, BRAR, VENDRYES, PARAISO
is_lateral_inspection
false
