Wastewater/Activity/PacpInspection/1.0Mar 23, 2017, 08:52 PM
02 2377_02 2376 _03232017_153638.mp4
- Date
- 03/23/2017
- W/O
- 1590881
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00279
- PipeID
- P21006
- Time
- 1:52 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4323
- Sewer Name
- 02 MONTEBELLO TRUNK
- City
- BELL GARDENS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_624375_TV02084_MAR20172
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 2377
- Downstream MH
- 02 2376
- Dir. of Survey
- Downstream
- Length Surveyed
- 8.1 ft.
- Total Length
- 8.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

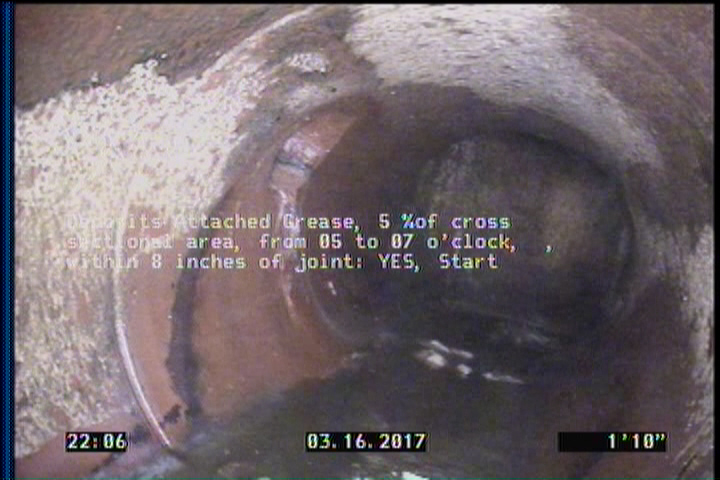

1.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

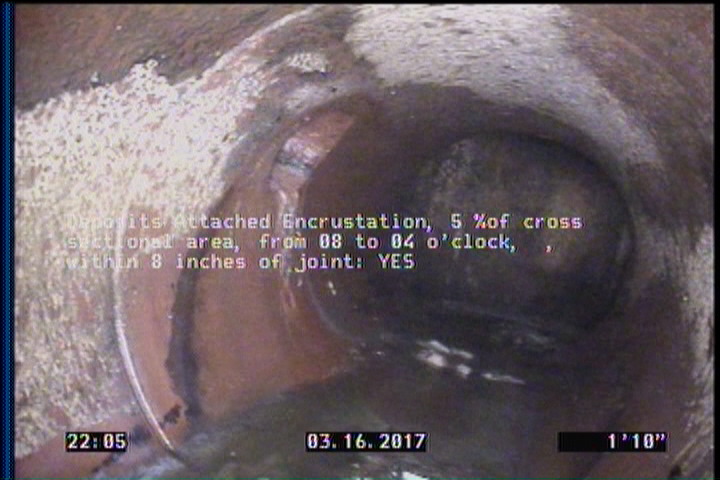

1.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 8 | DAGS | — |
| 0 | MWL | — |
| 1.1 | DAGS | — |
| 1.1 | DAE | — |
| 0 | MWM | — |
| 0 | AMH | 02 2377 |
| 8.1 | AMH | 02 2376 |
| 4.1 | TF | — |
Properties (6)
- additional_info
- SC318738
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-03-23T13:52:37-07:00
- is_lateral_inspection
- false
- year_laid
- 34415
