Wastewater/Activity/PacpInspection/1.0Jan 13, 2017, 07:05 AM
21 0302_21 0301 _12012017_230550.mpg
- Date
- 01/12/2017
- W/O
- 613609
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00763
- PipeID
- P15497
- Time
- 11:05 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4126
- Sewer Name
- 21 DISTRICT #21 OUTFALL TRUNK
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_613609_TV21044_JAN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 21 0302
- Downstream MH
- 21 0301
- Dir. of Survey
- Downstream
- Length Surveyed
- 226.9 ft.
- Total Length
- 226.9 ft.
- Structural Index
- 3
- Structural Quick
- 3H00
- Structural Rating
- 129
- O&M Index
- 2
- O&M Quick
- 2H00
- O&M Rating
- 88
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 217
Observation photos (2)

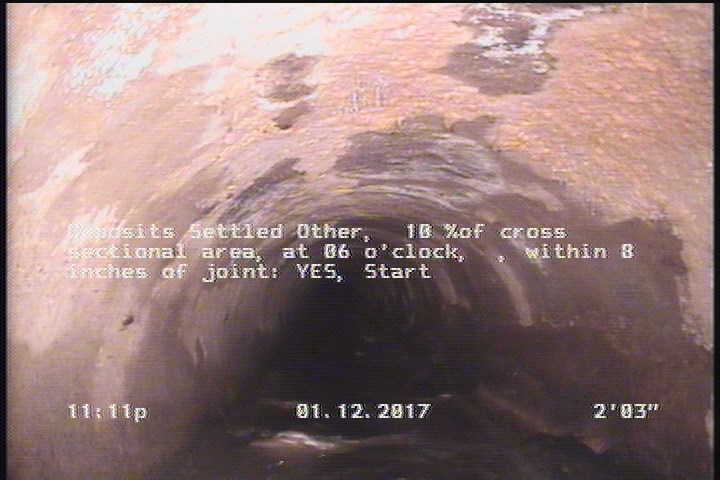

2.3 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

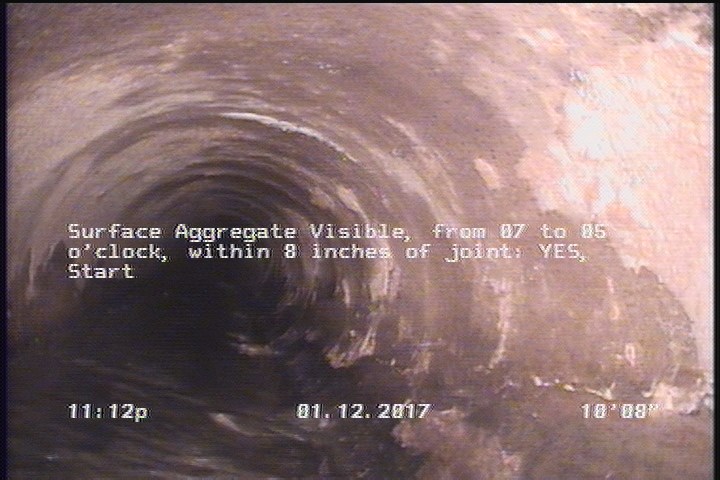

10.7 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 226.9 | AMH | 21 0301 |
| 10.7 | SAV | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 21 0302 |
| 2.3 | DSZ | — |
| 2 | MGO | MAG COAT |
| 223.4 | SAV | — |
| 223.4 | DSZ | — |
Properties (5)
- additional_info
- SC306482
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-12T23:05:38-08:00
- is_lateral_inspection
- false
