Wastewater/Activity/PacpInspection/1.0Dec 8, 2017, 09:08 AM
B 1506_B 1505 _08122017_012041.mp4
- Date
- 12/08/2017
- W/O
- 673959
- Weather
- Dry
- Operator/Surveyor
- ERUIZ
- Sewer ID
- Z01124
- PipeID
- P25621
- Time
- 1:08 AM
- Certificate
- 123456
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5306
- Sewer Name
- B JOINT OUTFALL B - UNIT 6G
- City
- ALHAMBRA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_673959_TV16038_DEC2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- B 1506
- Downstream MH
- B 1505
- Dir. of Survey
- Downstream
- Length Surveyed
- 599.1 ft.
- Total Length
- 599.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

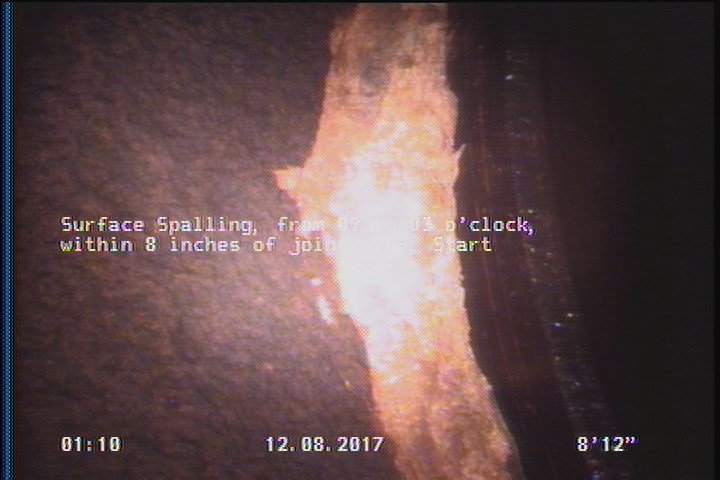

9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

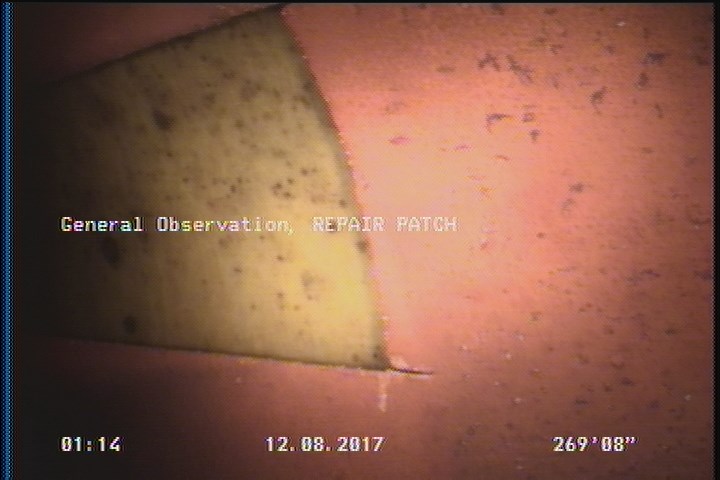

269.5 ft. - General Observation - REPAIR PATCH
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | B 1506 |
| 269.5 | MGO | REPAIR PATCH |
| 0 | MWM | — |
| 9 | SSS | — |
| 0 | MWL | — |
| 589.8 | SSS | — |
| 599.1 | AMH | B 1505 |
| 599.1 | MGO | LATERAL AT MH 3 OCLOCK |
Properties (7)
- additional_info
- SC346468
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-08T01:08:54-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 38891
