Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 29, 2018, 04:01 PM

  • A 0041_A 0040_1292018_094927.mp4

Date
01/29/2018
W/O
0679336
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00334
PipeID
P08416
Time
8:01 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7614
Sewer Name
A JOINT OUTFALL A - UNIT 3C
City
COMPTON
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
09
Purpose
Capital Improvement Program Assesment
Project
20180129SHO_JOINT_OUTFALL_A_UNIT_3C
Material
RCP-CTL
Shape
Square
Height
78 in.
Width
78 in.
Upstream MH
A 0041
Downstream MH
A 0040
Dir. of Survey
Downstream
Length Surveyed
1079.8 ft.
Total Length
1079.8 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole A 0041 to A 0040
MH: A 0041MH: A 0040downstream0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 095014.6 ft. MGO - General Observation - 85% MAG COAT INTACT47 ft. MGO - General Observation - POSSIBLE REBAR HANGING DOWN82.3 ft. MGO - General Observation - 100% TILES MISSING130.3 ft. MGO - General Observation - 50% TILES MISSING233.3 ft. SAV - Surface Aggregate Visible, from 12 to 04 o'clock, within 8 inches of joint: NO408.7 ft. MGO - General Observation - 100% TILES MISSING591.3 ft. DAZ - Deposits Attached Other, 5 %of cross sectional area, at 11 o'clock, , within 8 inches of joint: NO - POSSIBLE RAGS CAUGHT ON BROKEN REBAR732.2 ft. MGO - General Observation - 50% TILES MISSING795 ft. DAZ - Deposits Attached Other, 5 %of cross sectional area, from 09 to 10 o'clock, , within 8 inches of joint: NO - RAGS1079.8 ft. AMH - Downstream Manhole, Survey Ends - 1115

Observation photos (7)

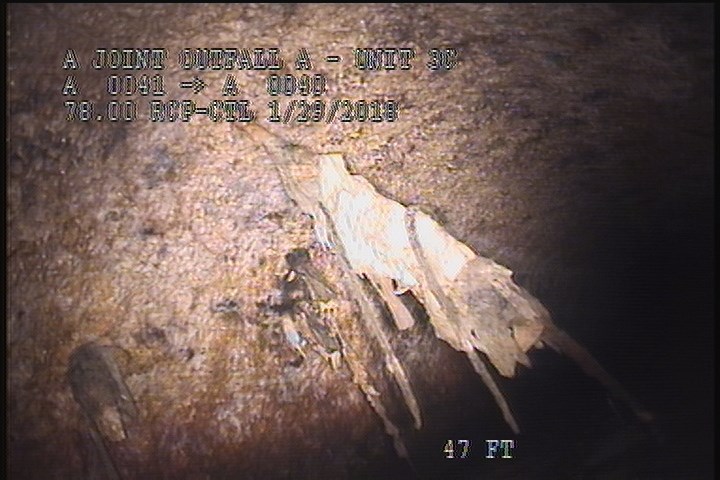

  • General Observation - POSSIBLE REBAR HANGING DOWN

    47 ft. - General Observation - POSSIBLE REBAR HANGING DOWN

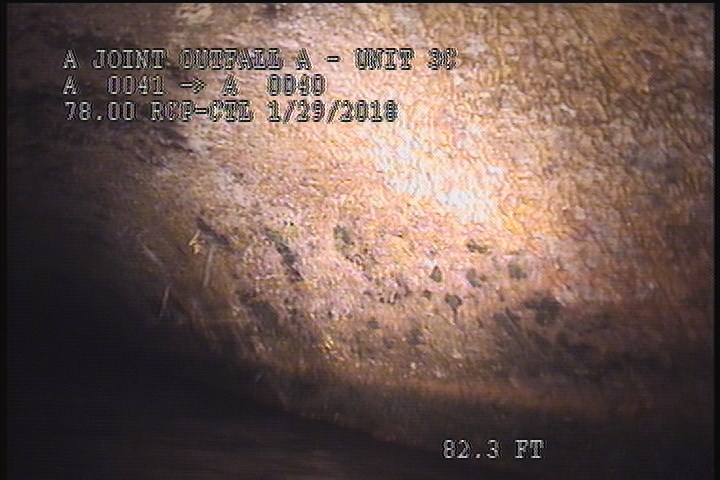

  • General Observation - 100% TILES MISSING

    82.3 ft. - General Observation - 100% TILES MISSING

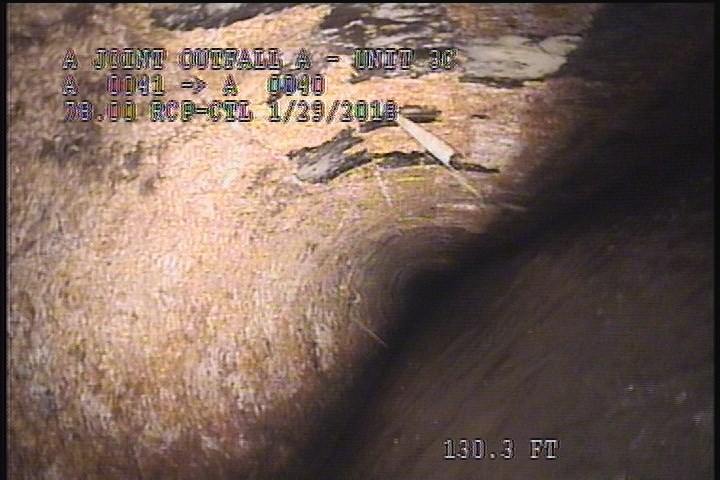

  • General Observation - 50% TILES MISSING

    130.3 ft. - General Observation - 50% TILES MISSING

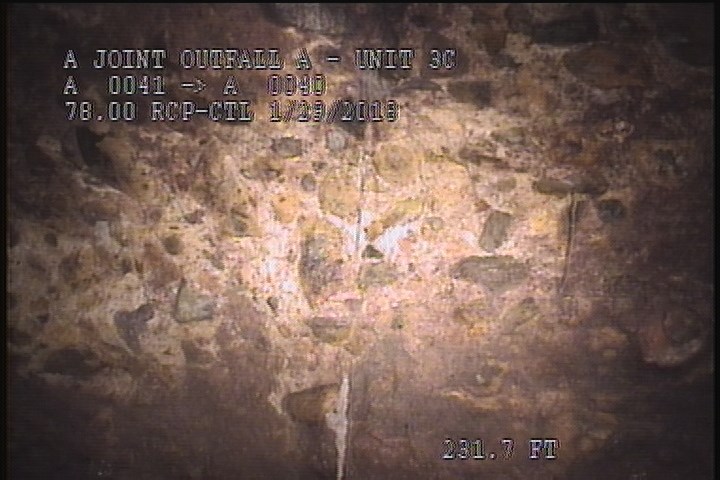

  • Surface Aggregate Visible, from 12 to 04 o'clock, within 8 inches of joint: NO

    233.3 ft. - Surface Aggregate Visible, from 12 to 04 o'clock, within 8 inches of joint: NO

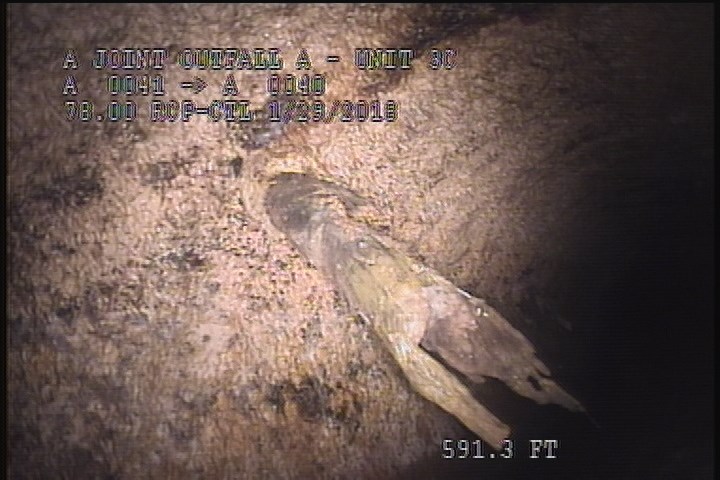

  • Deposits Attached Other, 5 %of cross sectional area, at 11 o'clock, , within 8 inches of joint: NO - POSSIBLE RAGS CAUGHT ON BROKEN REBAR

    591.3 ft. - Deposits Attached Other, 5 %of cross sectional area, at 11 o'clock, , within 8 inches of joint: NO - POSSIBLE RAGS CAUGHT ON BROKEN REBAR

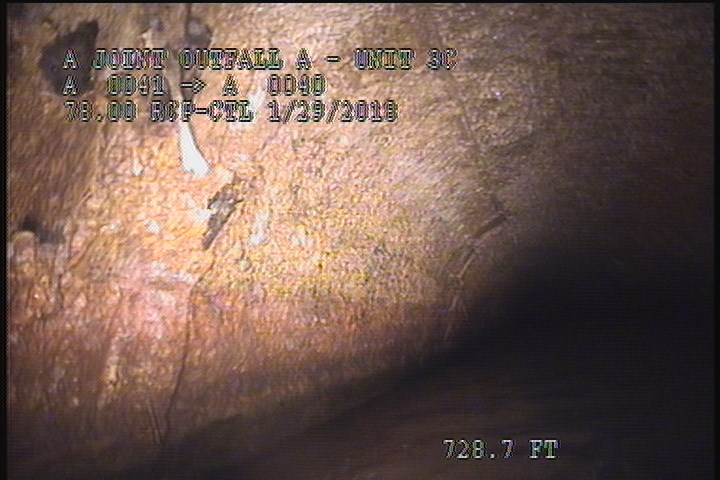

  • General Observation - 50% TILES MISSING

    732.2 ft. - General Observation - 50% TILES MISSING

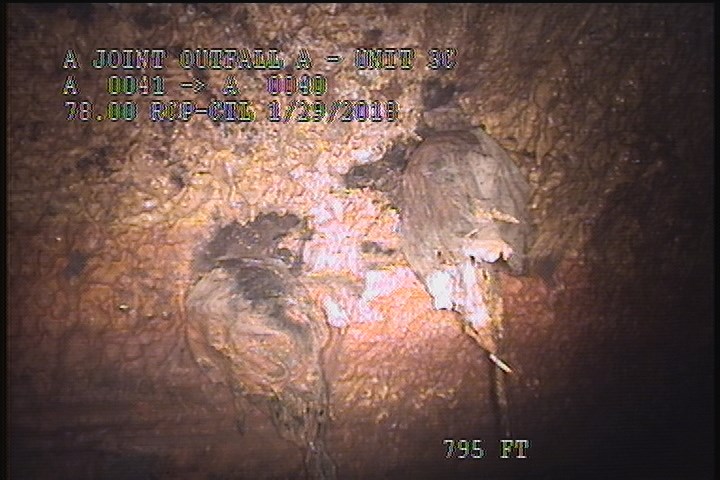

  • Deposits Attached Other, 5 %of cross sectional area, from 09 to 10 o'clock, , within 8 inches of joint: NO - RAGS

    795 ft. - Deposits Attached Other, 5 %of cross sectional area, from 09 to 10 o'clock, , within 8 inches of joint: NO - RAGS

All inspections of P08416Work order 0679336

Observations (13)

DistanceCodeObservation
0MWL—
233.3SAV—
795DAZRAGS
408.7MGO100% TILES MISSING
1079.8AMH1115
14.6MGO85% MAG COAT INTACT
591.3DAZPOSSIBLE RAGS CAUGHT ON BROKEN REBAR
130.3MGO50% TILES MISSING
0MWM—
47MGOPOSSIBLE REBAR HANGING DOWN
82.3MGO100% TILES MISSING
732.2MGO50% TILES MISSING
0AMH0950

Properties (7)

additional_info
RFIR
custom_field_three
85% MAG COAT INTACT, SOME MISSING TILES AND REBAR
custom_field_two
3
customer
LACSD
datetime
2018-01-29T08:01:46-08:00
documentation
OBREGON, SHADLER, BRAR, PARAISO
is_lateral_inspection
false
