Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 17, 2018, 09:24 AM

  • 08 0305_08 0304_09172018_022416.mp4

Date
09/17/2018
W/O
723785
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00013
PipeID
P00351
Time
2:24 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6028
Sewer Name
08 KEYSTONE TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Routine Assessment
Project
WO_723785_TV08154_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
08 0305
Downstream MH
08 0304
Dir. of Survey
Downstream
Length Surveyed
328.4 ft.
Total Length
328.4 ft.
Structural Index
3
Structural Quick
513J
Structural Rating
167
O&M Index
2
O&M Quick
2L00
O&M Rating
130
Overall Index
2
Overall Quick
—
Overall Rating
297
Pipe schematic from manhole 08 0305 to 08 0304
MH: 08 0305MH: 08 0304downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 03050 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION A MH 3 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start54.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start63.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"99.1 ft. MGP - General Photograph - HOLE99.1 ft. HSV - Hole Soil Visible, from 09 to 03 o'clock, within 8 inches of joint: YES124.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"183.2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"229.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"284.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"326.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish326.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish328.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE328.4 ft. MGO - General Observation - ACTIVE CONNECTION A MH 9 O'CLOCK328.4 ft. AMH - Downstream Manhole, Survey Ends - 08 0304

Observation photos (6)

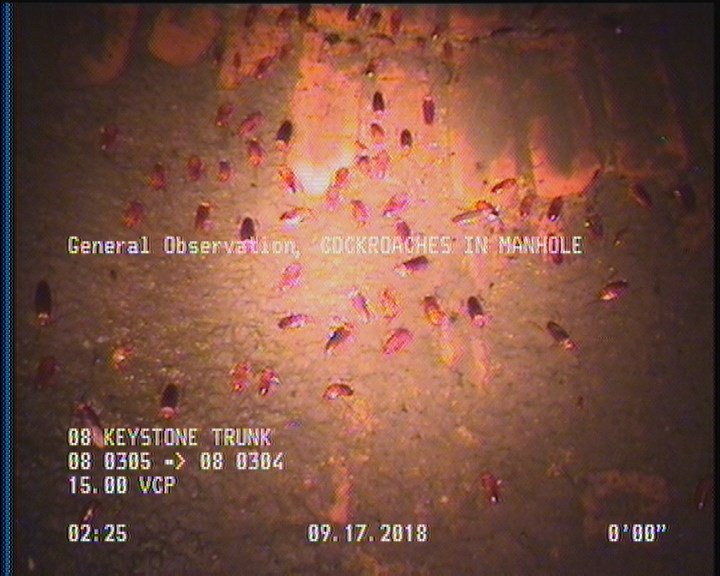

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

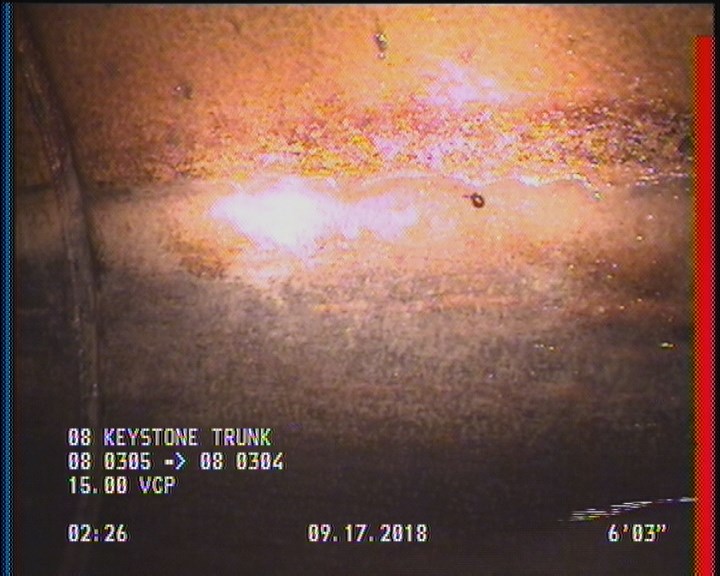

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

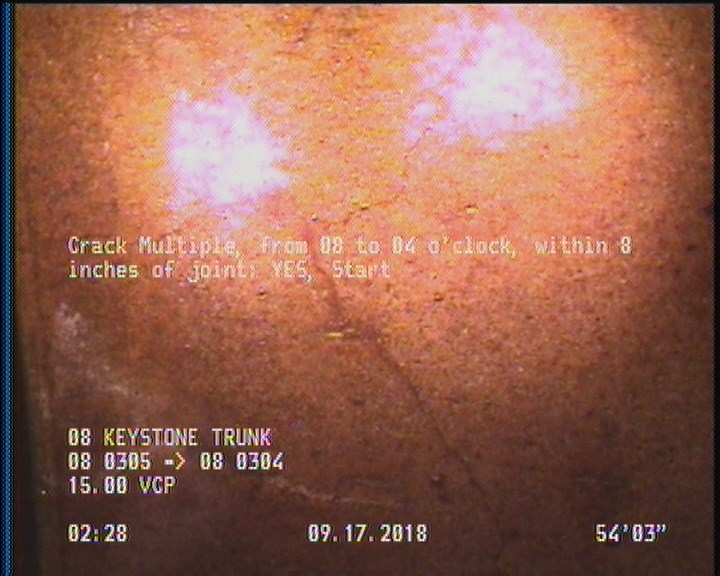

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    54.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

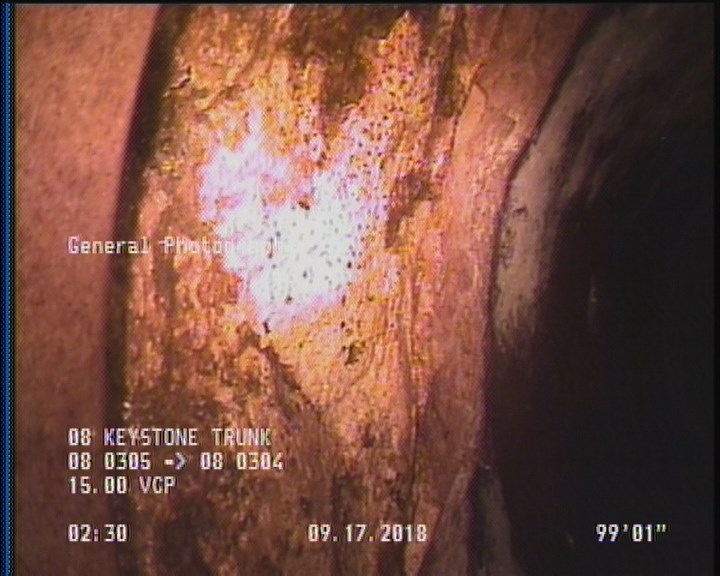

  • General Photograph - HOLE

    99.1 ft. - General Photograph - HOLE

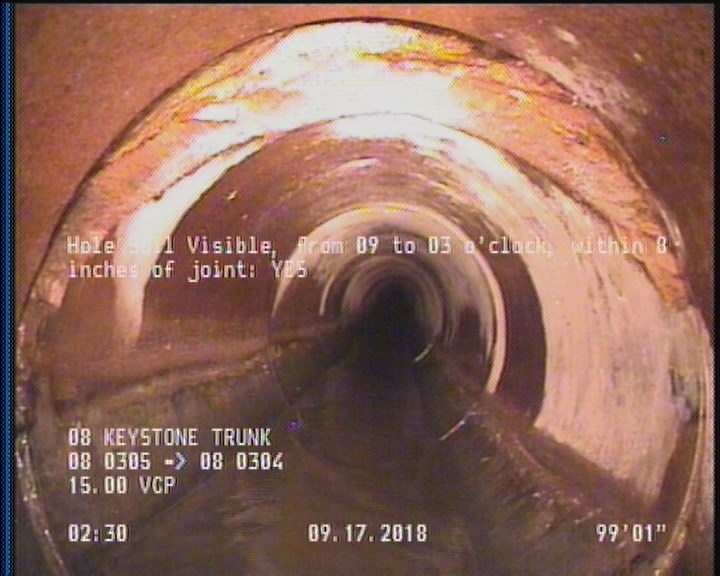

  • Hole Soil Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

    99.1 ft. - Hole Soil Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

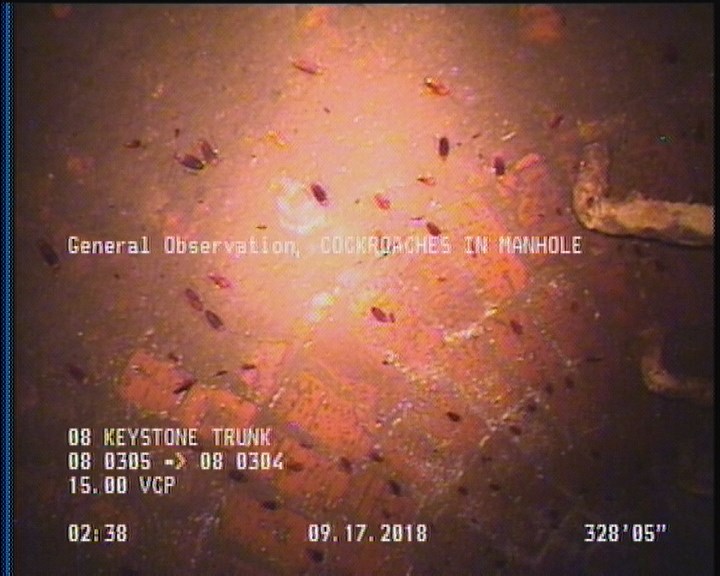

  • General Observation - COCKROACHES IN MANHOLE

    328.4 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P00351Work order 723785

Observations (19)

DistanceCodeObservation
183.2TFC—
0MGOCOCKROACHES IN MANHOLE
284.9TF—
328.4MGOCOCKROACHES IN MANHOLE
99.1MGPHOLE
124.1TFC—
328.4MGOACTIVE CONNECTION A MH 9 O'CLOCK
326.2DAGS—
328.4AMH08 0304
0MWL—
54.3CM—
229.1TF—
99.1HSV—
0AMH08 0305
2DAGS—
0MWM—
63.7TF—
326.2CM—
0MGOACTIVE CONNECTION A MH 3 O'CLOCK

Properties (6)

additional_info
SC364792
custom_field_two
2
customer
LACSD
datetime
2018-09-17T02:24:07-07:00
documentation
PRO PIPE
is_lateral_inspection
false
