Wastewater/Activity/PacpInspection/1.0Sep 26, 2018, 09:45 AM
E 0104_E 0103_09262018_024607.mp4
- Date
- 09/26/2018
- W/O
- 718146
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00031
- PipeID
- P11331
- Time
- 2:45 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6046
- Sewer Name
- E JOINT OUTFALL E - UNIT 4 RELOCATION
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_718146_TV01089_AUG2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- E 0103
- Downstream MH
- E 0104
- Dir. of Survey
- Upstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 5
- O&M Quick
- 5200
- O&M Rating
- 10
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (2)

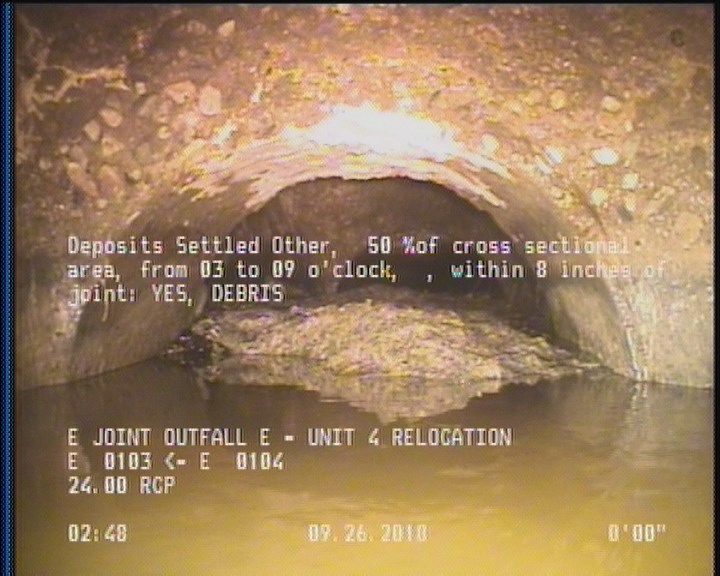

2 ft. - Deposits Settled Other, 50 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES - DEBRIS

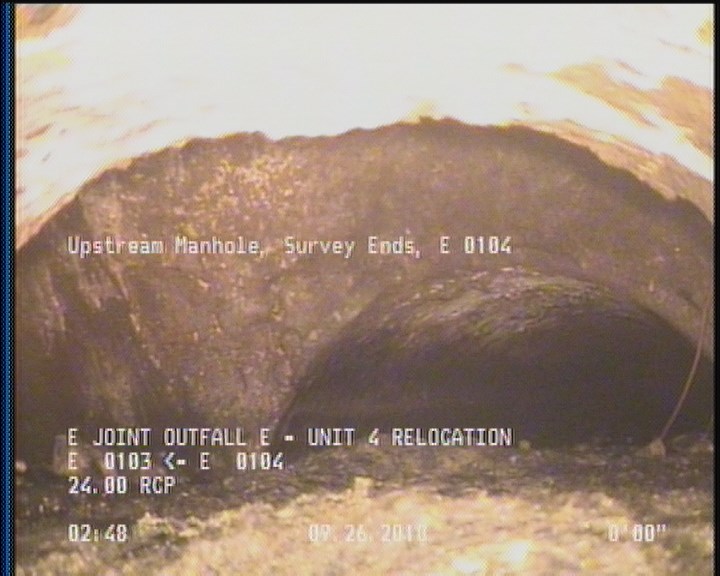

2 ft. - Upstream Manhole, Survey Ends - E 0104
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2 | DSZ | DEBRIS |
| 0 | AMH | E 0103 |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 2 | AMH | E 0104 |
Properties (7)
- additional_info
- SC365109
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-09-26T02:45:37-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 30530
