Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 28, 2018, 08:37 AM

  • Section#1_18 0916A_18 0916__4282018__G6990.mp4

Date
04/28/2018
W/O
0701634
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00709
PipeID
P14768
Time
1:37 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
G6990
Sewer Name
18 SO WHITTIER OUTFALL RLF TR, SECTS 1,2A,2B,2C,&3
City
SOUTH WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
20
Purpose
Routine Assessment
Project
20180428MDM_SO_WHITTIER_OUTFALL_RLF_TR_SECTS_1_2A_2B_2C_3
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
18 0916A
Downstream MH
18 0916
Dir. of Survey
Downstream
Length Surveyed
122.7 ft.
Total Length
122.7 ft.
Structural Index
3
Structural Quick
3G2D
Structural Rating
174
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
174
Pipe schematic from manhole 18 0916A to 18 0916
MH: 18 0916AMH: 18 0916downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - MH CONN 3:00 ACTIVE OUTGOING0 ft. AMH - Upstream Manhole, Survey Begins - 1:50AM2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE2 ft. MGO - General Observation - MAG COAT 80% START 8:00 TO 4:0010.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN14.1 ft. SAP - Surface Aggregate Projecting, from 08 to 09 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG29.2 ft. SAP - Surface Aggregate Projecting, from 08 to 09 o'clock, within 8 inches of joint: NO - SEVERE AGG29.2 ft. SAP - Surface Aggregate Projecting, from 03 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG122.1 ft. MGO - General Observation - MH CONN 9:00 ACTIVE122.1 ft. SAP - Surface Aggregate Projecting, from 03 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG122.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE122.1 ft. SAP - Surface Aggregate Projecting, from 08 to 09 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG122.2 ft. MGO - General Observation - MAG COAT 80% FINISH122.7 ft. AMH - Downstream Manhole, Survey Ends - 2:15AM

Observation photos (5)

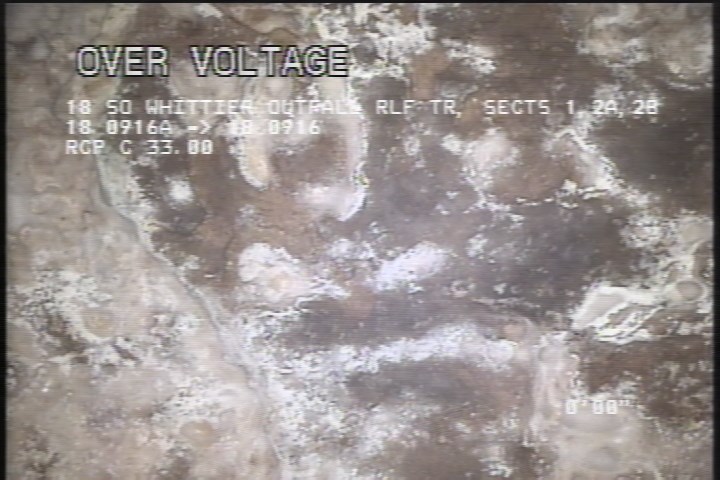

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

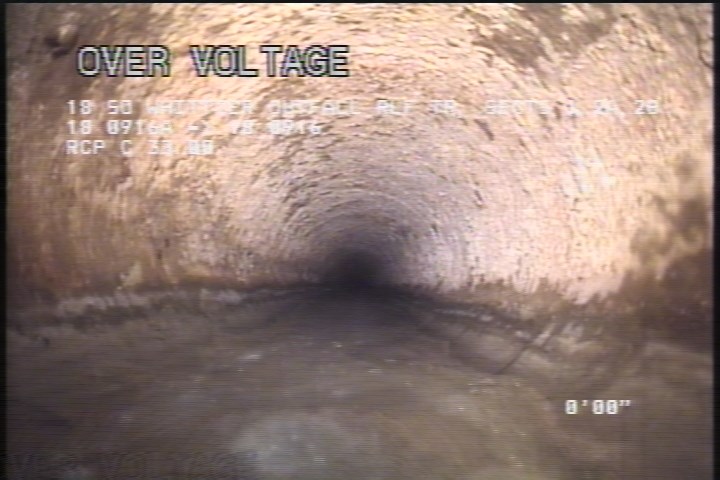

  • General Observation - MAG COAT 80% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 80% START 8:00 TO 4:00

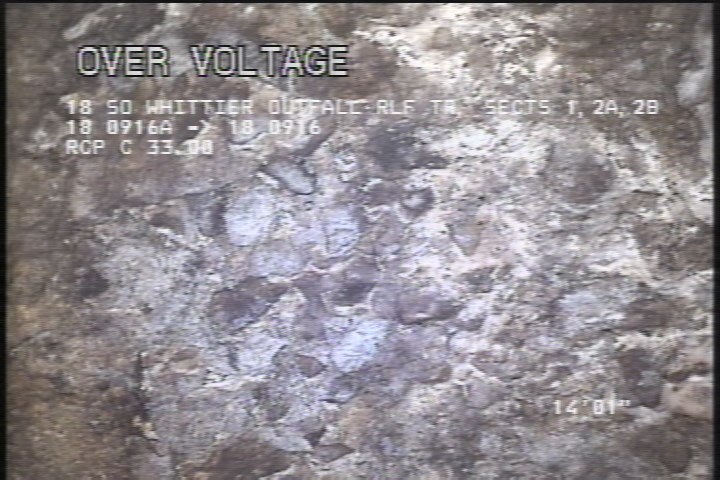

  • Surface Aggregate Projecting, from 08 to 09 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    14.1 ft. - Surface Aggregate Projecting, from 08 to 09 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

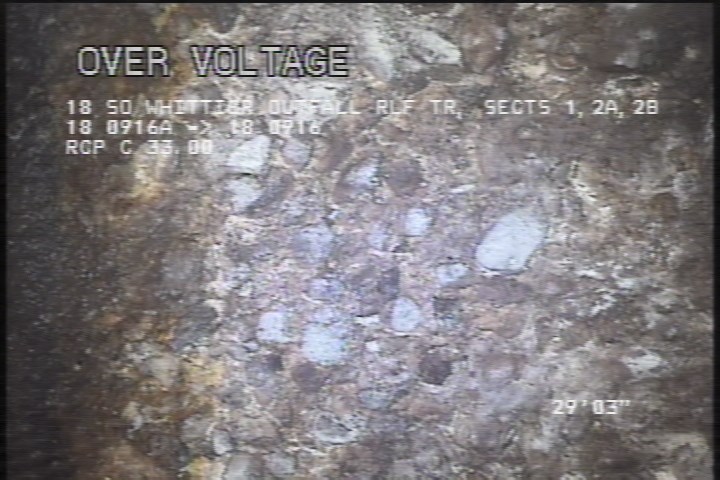

  • Surface Aggregate Projecting, from 08 to 09 o'clock, within 8 inches of joint: NO - SEVERE AGG

    29.2 ft. - Surface Aggregate Projecting, from 08 to 09 o'clock, within 8 inches of joint: NO - SEVERE AGG

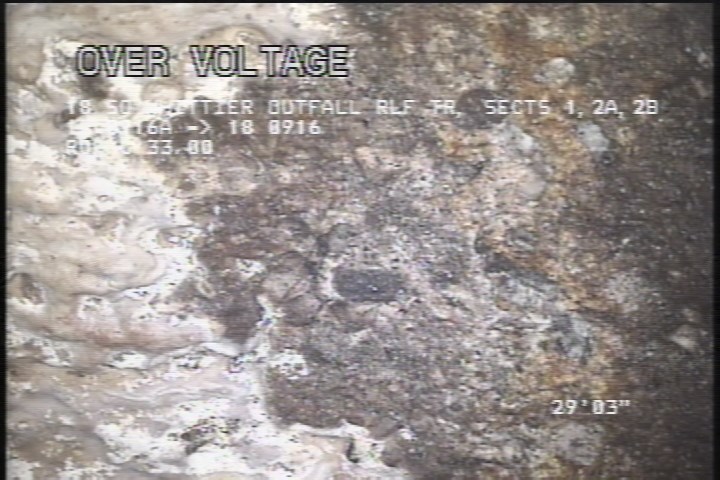

  • Surface Aggregate Projecting, from 03 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    29.2 ft. - Surface Aggregate Projecting, from 03 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

All inspections of P14768Work order 0701634

Observations (16)

DistanceCodeObservation
0MWM—
122.1MGOMH CONN 9:00 ACTIVE
0MWL—
122.2MGOMAG COAT 80% FINISH
122.1SAPSEVERE AGG
0MGOMH CONN 3:00 ACTIVE OUTGOING
10.4TFOPEN
122.1SSSBLISTERING PEELING CONCRETE
29.2SAPSEVERE AGG
29.2SAPSEVERE AGG
14.1SAPSEVERE AGG
2SSSBLISTERING PEELING CONCRETE
0AMH1:50AM
2MGOMAG COAT 80% START 8:00 TO 4:00
122.7AMH2:15AM
122.1SAPSEVERE AGG

Properties (5)

custom_field_three
SEVERE AGG PROJECTING-80% MAG COAT
custom_field_two
3
customer
LACSD
datetime
2018-04-28T01:37:33-07:00
is_lateral_inspection
false
