Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 27, 2018, 10:05 AM

  • Section#1_D 0225_A 0110__7272018__I0043.mp4

Date
07/27/2018
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00144
PipeID
P09878
Time
3:05 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0043
Sewer Name
D JOINT OUTFALL D - UNIT 1A
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
16
Purpose
Routine Assessment
Project
20180727MDM_JOINT_OUTFALL_D_UNIT_1A
Material
Reinforced Concrete Pipe
Shape
Circular
Height
108 in.
Upstream MH
D 0225
Downstream MH
A 0110
Dir. of Survey
Downstream
Length Surveyed
934.8 ft.
Total Length
934.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole D 0225 to A 0110
MH: D 0225MH: A 0110downstream0 ft. MWL - Water Level, 90 %of cross sectional area0 ft. MWM - Water Mark, 90 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:20AM32.1 ft. MGO - General Observation - 108" RCP FR PLOY LINE229.7 ft. MGO - General Observation - 1449.8 ft. LFZ - Lining Failure Other, at 11 o'clock, within 8 inches of joint: NO - POSSIBLE THIN COATING PEEL455.4 ft. MGO - General Observation - 2702.7 ft. MGO - General Observation - 4769.7 ft. MGP - General Photograph - JOINT801.5 ft. MGO - General Observation - 108" RCP FR POLY LINE826.6 ft. MGO - General Observation - POSSIBLE COATING ON PIPE934.3 ft. MGO - General Observation - MH CONN 12:00 IN STACK ACTIVE934.8 ft. AMH - Downstream Manhole, Survey Ends - 4:20AM

Observation photos (8)

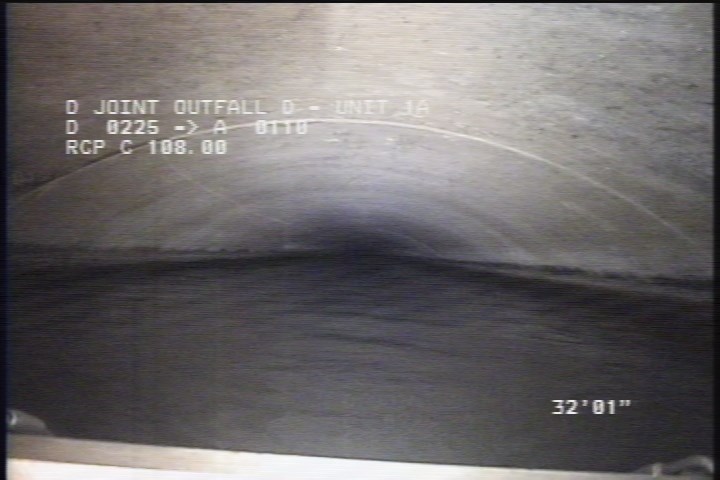

  • General Observation - 108" RCP FR PLOY LINE

    32.1 ft. - General Observation - 108" RCP FR PLOY LINE

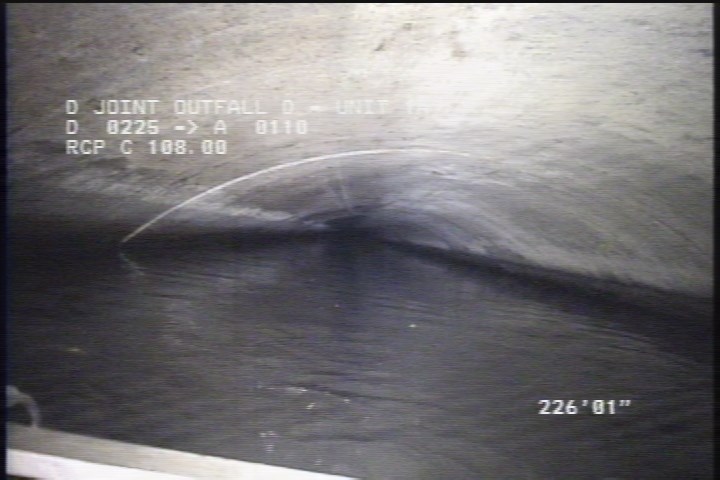

  • General Observation - 1

    229.7 ft. - General Observation - 1

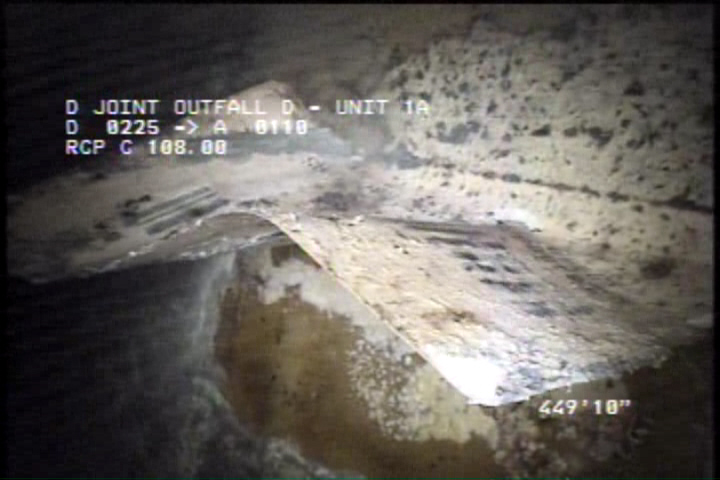

  • Lining Failure Other, at 11 o'clock, within 8 inches of joint: NO - POSSIBLE THIN COATING PEEL

    449.8 ft. - Lining Failure Other, at 11 o'clock, within 8 inches of joint: NO - POSSIBLE THIN COATING PEEL

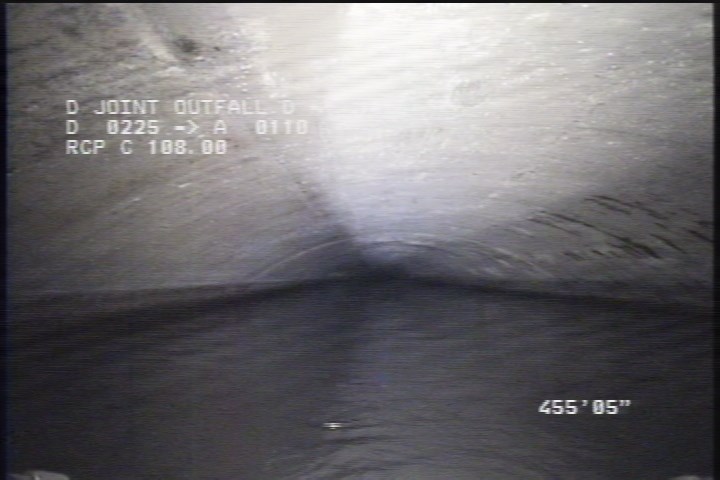

  • General Observation - 2

    455.4 ft. - General Observation - 2

  • General Observation - 4

    702.7 ft. - General Observation - 4

  • General Photograph - JOINT

    769.7 ft. - General Photograph - JOINT

  • General Observation - 108" RCP FR POLY LINE

    801.5 ft. - General Observation - 108" RCP FR POLY LINE

  • General Observation - POSSIBLE COATING ON PIPE

    826.6 ft. - General Observation - POSSIBLE COATING ON PIPE

All inspections of P09878Work order #

Observations (13)

DistanceCodeObservation
229.7MGO1
0MWL—
801.5MGO108" RCP FR POLY LINE
934.8AMH4:20AM
934.3MGOMH CONN 12:00 IN STACK ACTIVE
449.8LFZPOSSIBLE THIN COATING PEEL
826.6MGOPOSSIBLE COATING ON PIPE
0MWM—
702.7MGO4
32.1MGO108" RCP FR PLOY LINE
0AMH3:20AM
769.7MGPJOINT
455.4MGO2

Properties (6)

custom_field_three
LINER GOOD COND.
custom_field_two
4
customer
LACSD
datetime
2018-07-27T03:05:17-07:00
documentation
MARTIN,REVELES,OLIVER 111,YOUNG
is_lateral_inspection
false
