Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 13, 2018, 09:12 AM

  • Section#1_H 0732_H 0731__1132018__G6916.mp4

Date
01/13/2018
W/O
0683979
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00941
PipeID
P11141
Time
1:12 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6916
Sewer Name
H JOINT OUTFALL H - UNIT 9B
City
SOUTH EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
30
Purpose
Routine Assessment
Project
20180113MDM_JOINT_OUTFALL_H_UNIT_9B
Material
NRCP
Shape
Circular
Height
28 in.
Upstream MH
H 0732
Downstream MH
H 0731
Dir. of Survey
Downstream
Length Surveyed
724.6 ft.
Total Length
724.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole H 0732 to H 0731
MH: H 0732MH: H 0731downstream0 ft. AMH - Upstream Manhole, Survey Begins - 2:20AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area1 ft. MGO - General Observation - MH HAS A PRESSURE PLATE& MWD COVER2 ft. MGO - General Observation - MAG COAT 100% START 7:00 TO 5:002 ft. MGO - General Observation - CONCRETE UNDER MAG COAT APPEARS GOOD CONDITION187.3 ft. MGO - General Observation - SMOOTH CONCRETE UNDER MAG COAT187.3 ft. MGO - General Observation - MAG COAT 100%414.7 ft. MGO - General Observation - SMOOTH CONCRETE UNDER MAG COAT553.9 ft. MGO - General Observation - MAG COAT 100%724 ft. MGO - General Observation - MAG COAT 100% FINISH724.6 ft. AMH - Downstream Manhole, Survey Ends - 2:55AM

Observation photos (7)

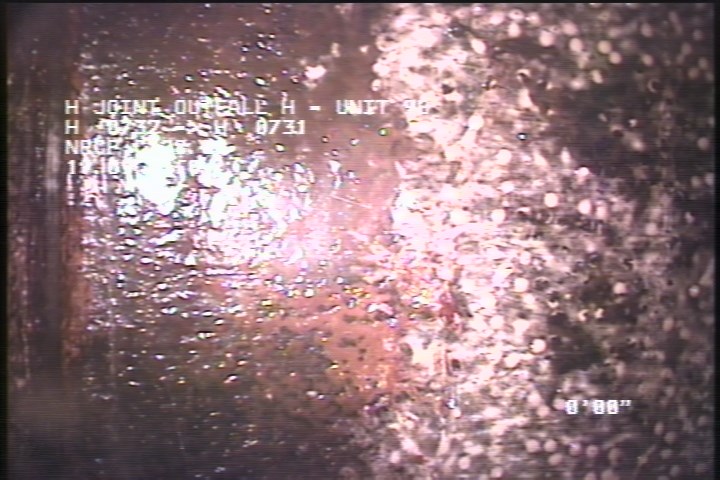

  • General Observation - MH HAS A PRESSURE PLATE& MWD COVER

    1 ft. - General Observation - MH HAS A PRESSURE PLATE& MWD COVER

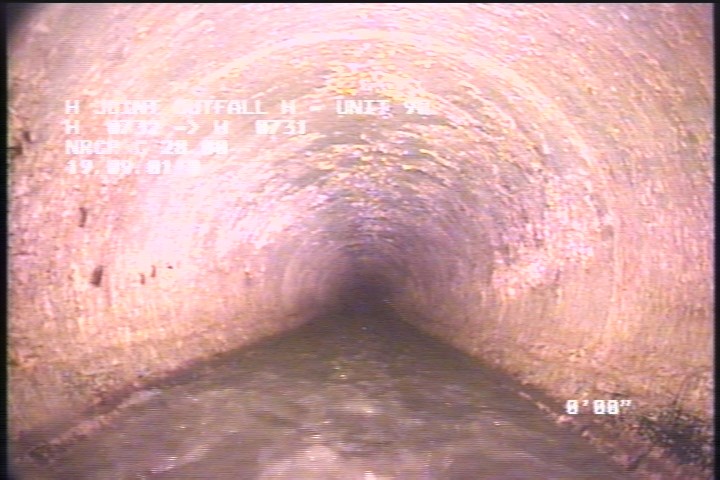

  • General Observation - MAG COAT 100% START 7:00 TO 5:00

    2 ft. - General Observation - MAG COAT 100% START 7:00 TO 5:00

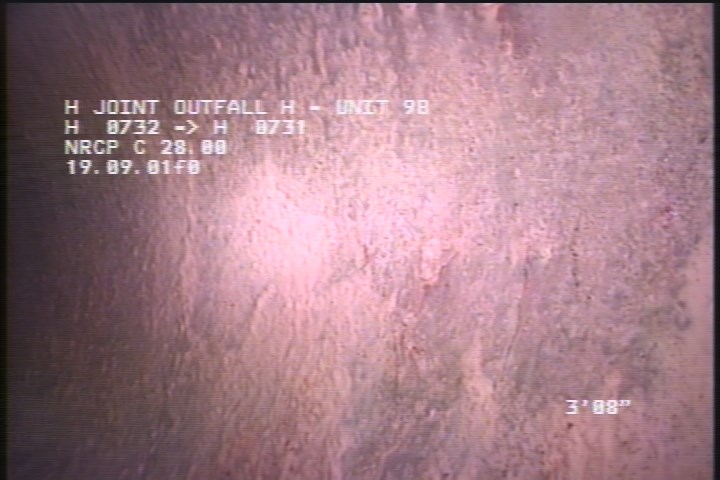

  • General Observation - CONCRETE UNDER MAG COAT APPEARS GOOD CONDITION

    2 ft. - General Observation - CONCRETE UNDER MAG COAT APPEARS GOOD CONDITION

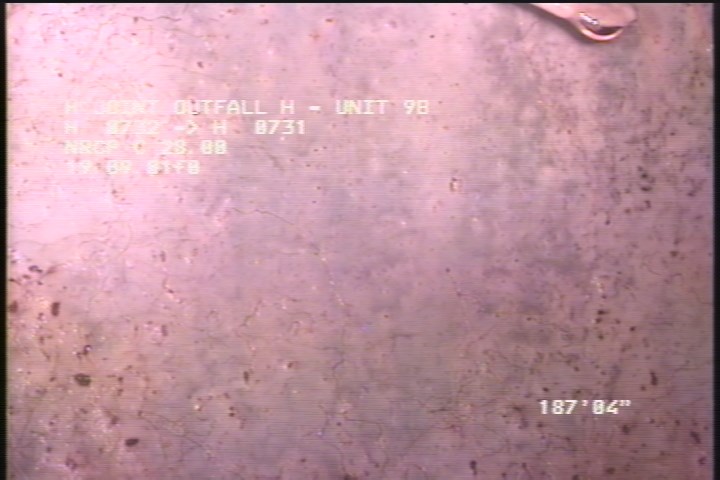

  • General Observation - SMOOTH CONCRETE UNDER MAG COAT

    187.3 ft. - General Observation - SMOOTH CONCRETE UNDER MAG COAT

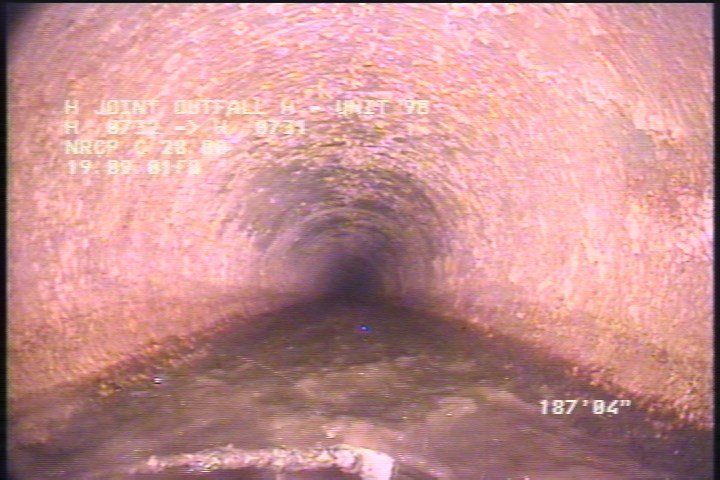

  • General Observation - MAG COAT 100%

    187.3 ft. - General Observation - MAG COAT 100%

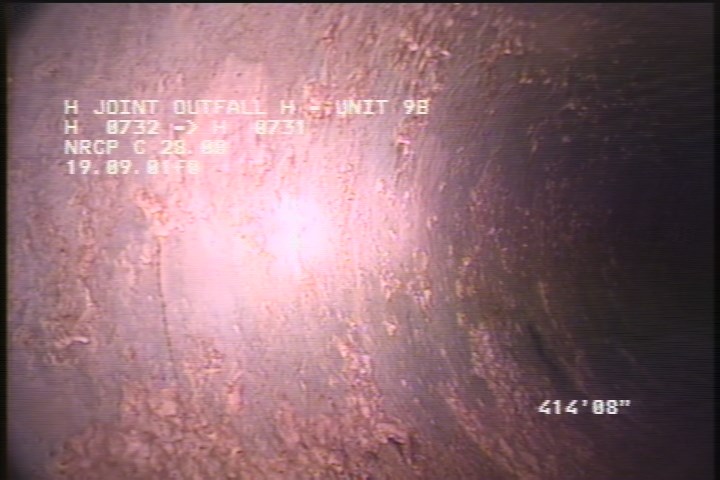

  • General Observation - SMOOTH CONCRETE UNDER MAG COAT

    414.7 ft. - General Observation - SMOOTH CONCRETE UNDER MAG COAT

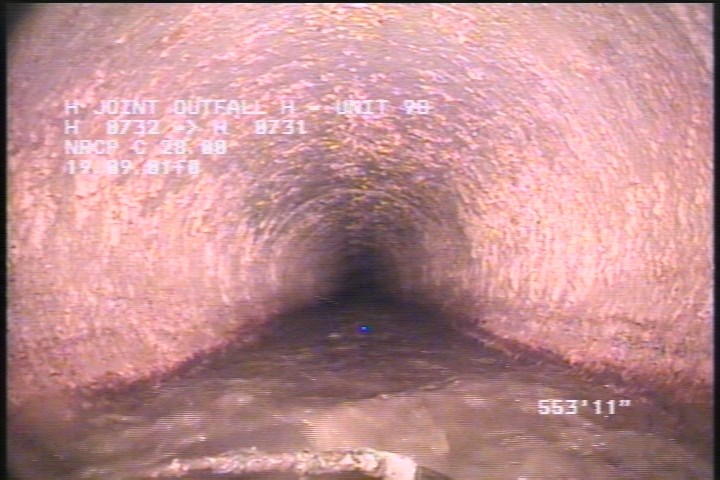

  • General Observation - MAG COAT 100%

    553.9 ft. - General Observation - MAG COAT 100%

All inspections of P11141Work order 0683979

Observations (12)

DistanceCodeObservation
724MGOMAG COAT 100% FINISH
2MGOMAG COAT 100% START 7:00 TO 5:00
553.9MGOMAG COAT 100%
414.7MGOSMOOTH CONCRETE UNDER MAG COAT
187.3MGOSMOOTH CONCRETE UNDER MAG COAT
0AMH2:20AM
0MWL—
724.6AMH2:55AM
0MWM—
2MGOCONCRETE UNDER MAG COAT APPEARS GOOD CONDITION
187.3MGOMAG COAT 100%
1MGOMH HAS A PRESSURE PLATE& MWD COVER

Properties (6)

custom_field_three
APPEARS GOOD CONDITION CONCRETE UNDER 100% MAG
custom_field_two
4
customer
LACSD
datetime
2018-01-13T01:12:15-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
