Wastewater/Activity/PacpInspection/1.0Jun 4, 2019, 08:53 PM
29 0541_29 0721_642019_135637.mp4
29 0541_29 0721_642019_135935.mp4
- Date
- 06/04/2019
- W/O
- 0771791
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z01019
- PipeID
- P24739
- Time
- 1:53 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7993
- Sewer Name
- 29 19TH STREET TRUNK
- City
- LONG BEACH
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 03
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190604DF_19TH_STREET_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 29 0721
- Downstream MH
- 29 0541
- Dir. of Survey
- Upstream
- Length Surveyed
- 17.7 ft.
- Total Length
- 17.7 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

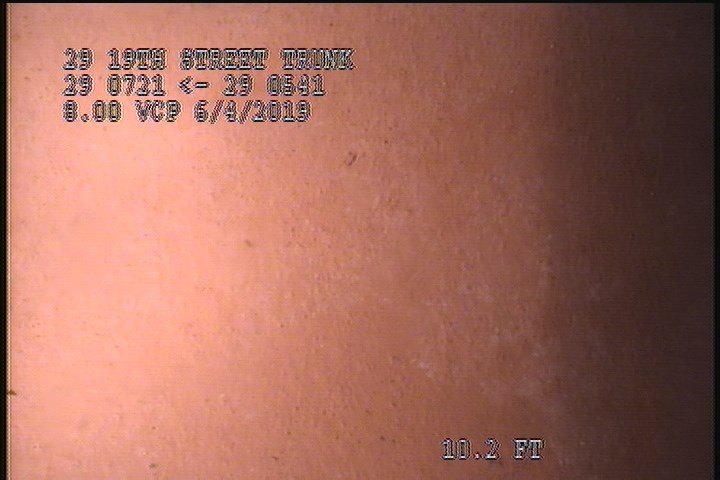

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

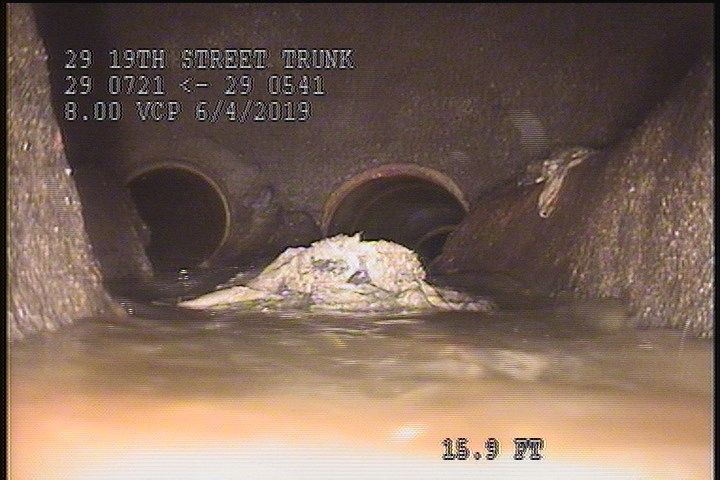

17.7 ft. - Upstream Manhole, Survey Ends - 2:06 PM
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 15.9 | MGP | — |
| 16 | SSS | — |
| 0.1 | MWM | — |
| 0 | AMH | 1:55 PM |
| 2 | SSS | — |
| 17.7 | MGO | Grease Throughout The Reach (5%) |
| 17.7 | AMH | 2:06 PM |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-06-04T13:53:16-07:00
- documentation
- FRANKLIN, CASTILLO, BRAR
- is_lateral_inspection
- false
