Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 3, 2019, 06:58 PM

  • 18 0615_18 0614_632019_120745.mp4

Date
06/03/2019
W/O
0771944
Weather
Dry
Operator/Surveyor
BRAR
Sewer ID
Z00692
PipeID
P14465
Time
11:58 AM
Certificate
SEE REMARKS
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7992
Sewer Name
18 NORTH PLANT OUTFALL RELIEF TRUNK
City
S. WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20190603SB_NORTH_PLANT_OUTFALL_RELIEF_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
18 0615
Downstream MH
18 0614
Dir. of Survey
Downstream
Length Surveyed
235.9 ft.
Total Length
235.9 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 18 0615 to 18 0614
MH: 18 0615MH: 18 0614downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:02 PM2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG COAT2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active65.1 ft. MGP - General Photograph104.6 ft. MGP - General Photograph162.7 ft. MGP - General Photograph235.9 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 75% MAG COAT235.9 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish235.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish235.9 ft. MSA - Survey Abandoned - FLOAT FLIPPED235.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (4)

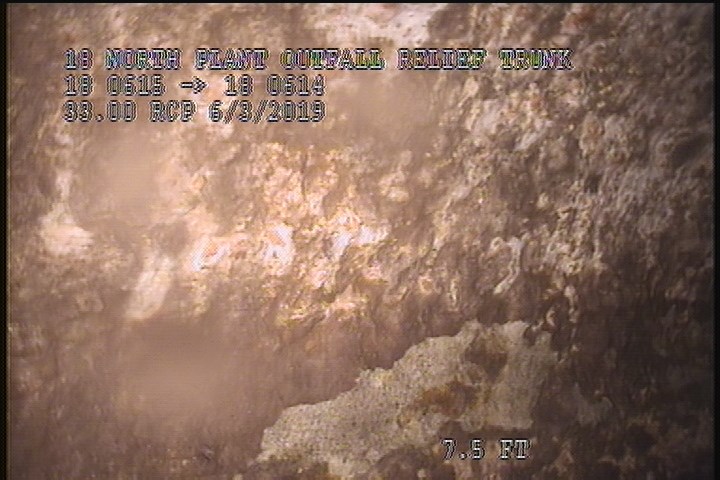

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

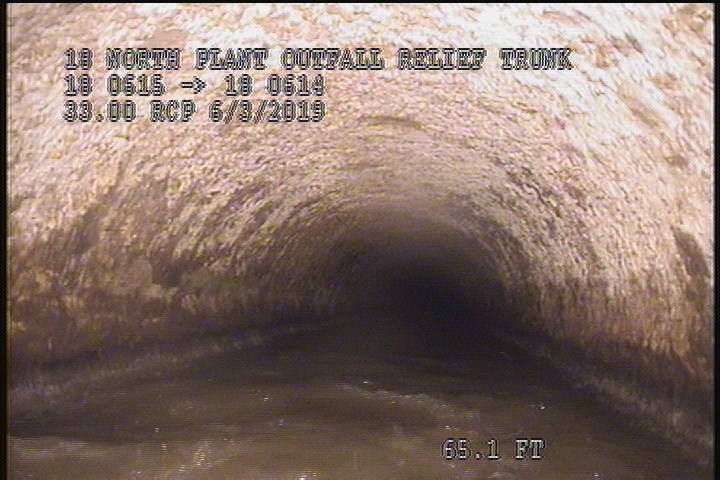

  • General Photograph

    65.1 ft. - General Photograph

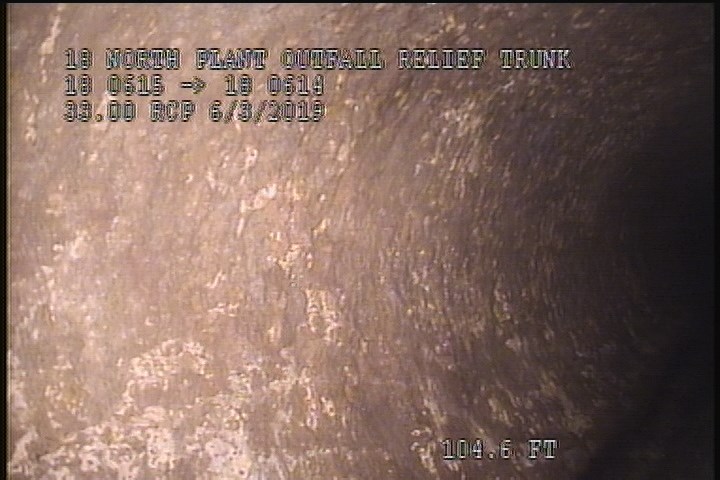

  • General Photograph

    104.6 ft. - General Photograph

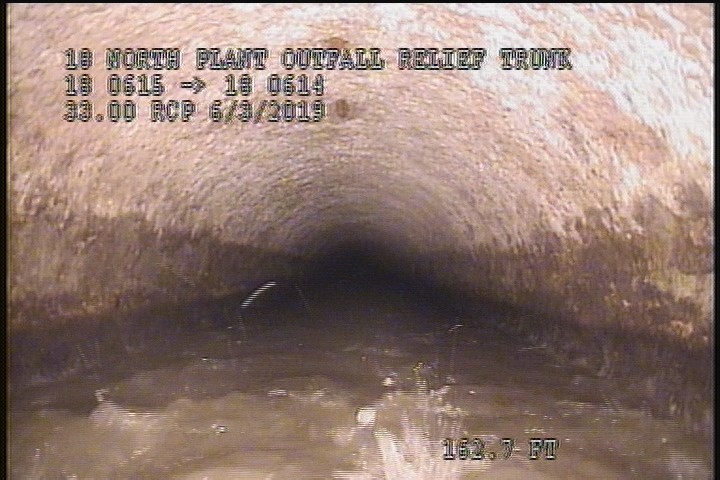

  • General Photograph

    162.7 ft. - General Photograph

All inspections of P14465Work order 0771944

Observations (16)

DistanceCodeObservation
2SAV—
2SSS—
235.9SZ75% MAG COAT
0MWL—
0MWM—
65.1MGP—
104.6MGP—
0AMH12:02 PM
235.9SRV—
2SRV—
235.9SSS—
2SZ75% MAG COAT
2MGOConn. @ Mh, 3 O' Clock. Active
235.9MSAFLOAT FLIPPED
162.7MGP—
235.9SAV—

Properties (6)

additional_info
U-0618-0703002249
custom_field_two
3
customer
LACSD
datetime
2019-06-03T11:58:23-07:00
documentation
BRAR, FRANKLIN, CASTILLO, RUVALCABA
is_lateral_inspection
false
