Wastewater/Activity/PacpInspection/1.0Mar 22, 2019, 10:24 AM
21 0977_21 0976_03222019_033526.mp4
- Date
- 03/22/2019
- W/O
- 756623
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00784
- PipeID
- P16077
- Time
- 3:24 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6490
- Sewer Name
- 21 SAN ANTONIO TRUNK
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_756623_TV21039_MAR2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 21 0977
- Downstream MH
- 21 0976
- Dir. of Survey
- Downstream
- Length Surveyed
- 58.9 ft.
- Total Length
- 58.9 ft.
- Structural Index
- 3
- Structural Quick
- 3A00
- Structural Rating
- 30
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 32
Observation photos (3)

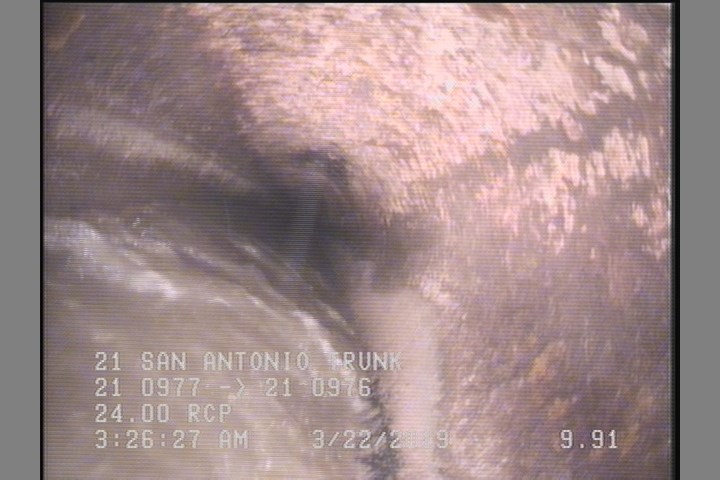

9.9 ft. - General Observation - MAG COAT THROUGHOUT PIPE

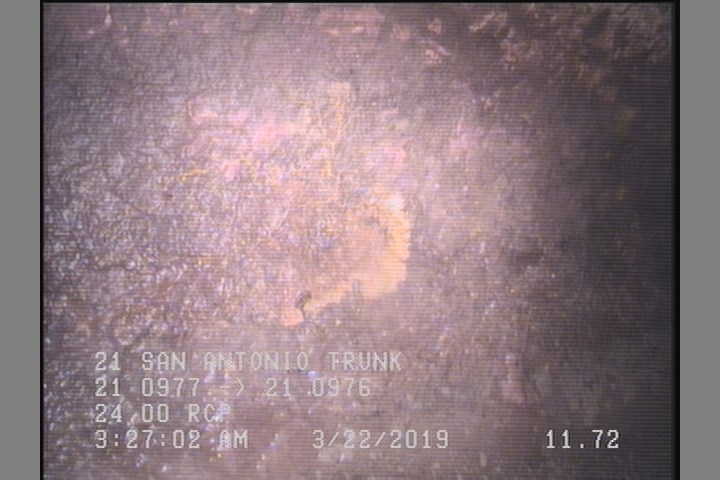

11.7 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

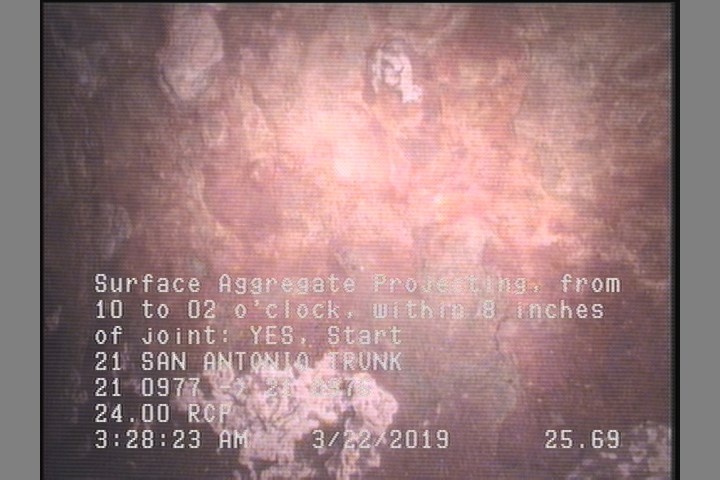

25.7 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 25.7 | SAV | — |
| 0 | MWM | — |
| 25.7 | SAP | — |
| 58.8 | SAP | — |
| 58.9 | MSA | DUE TO DEBRIS IN LINE |
| 11.7 | SAV | — |
| 58.9 | OBZ | UNKNOWN DEBRIS IN LINE |
| 9.9 | MGO | MAG COAT THROUGHOUT PIPE |
| 0 | AMH | 21 0977 |
| 0 | MWL | — |
Properties (5)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-03-22T03:24:01-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
