Wastewater/Activity/PacpInspection/1.0Mar 22, 2019, 07:07 AM
20 0221_20 0220_03222019_002109.mp4
- Date
- 03/22/2019
- W/O
- 756008
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00735
- PipeID
- P19188
- Time
- 12:07 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6434
- Sewer Name
- 20 AVENUE "Q" TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_756008_TV20019_MAR2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 20 0221
- Downstream MH
- 20 0220
- Dir. of Survey
- Downstream
- Length Surveyed
- 362.2 ft.
- Total Length
- 362.2 ft.
- Structural Index
- 3
- Structural Quick
- 3M2M
- Structural Rating
- 355
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 142
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 497
Observation photos (3)

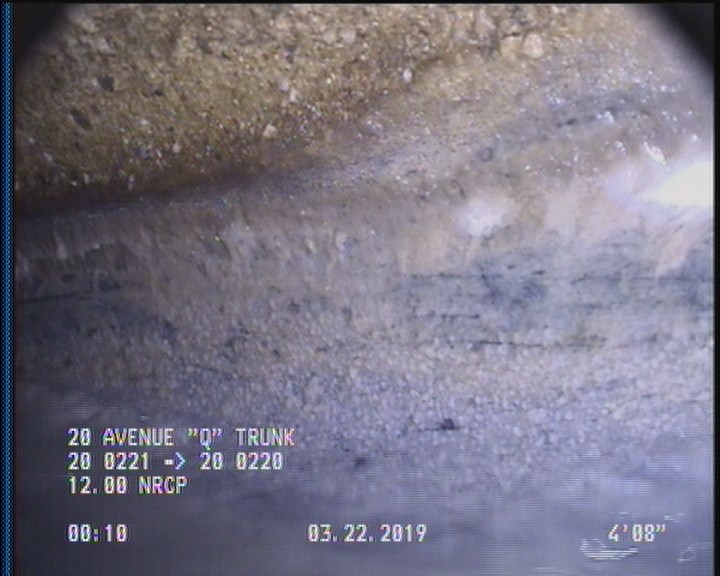

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

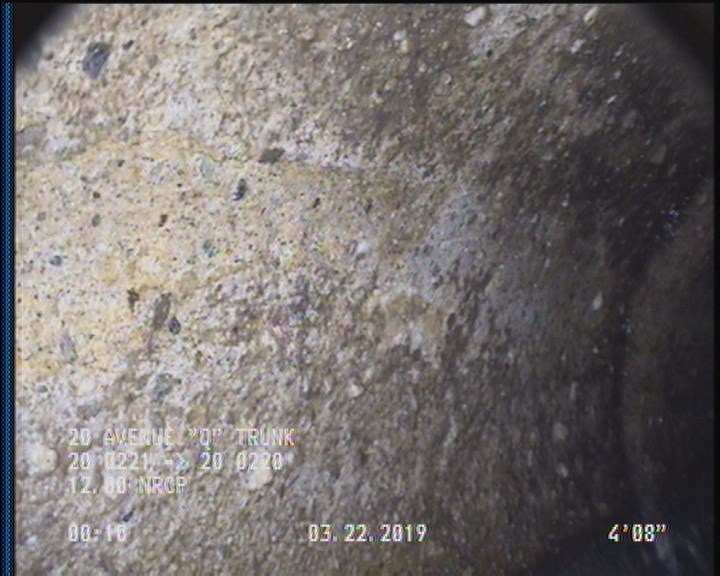

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

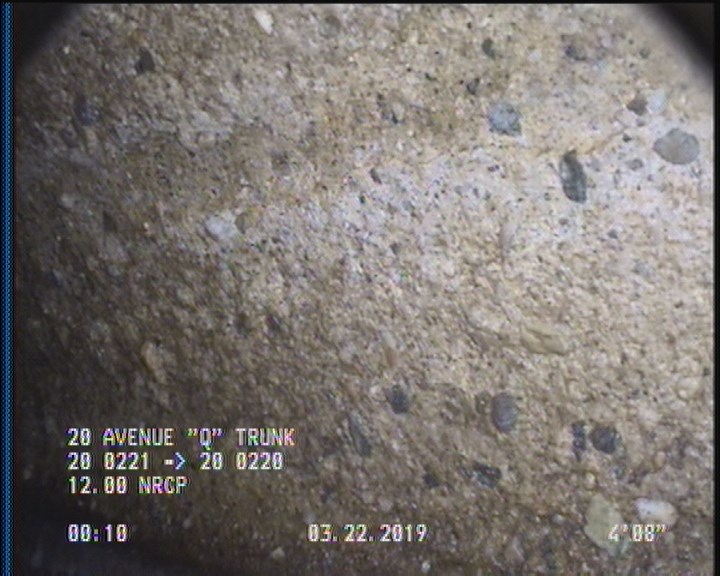

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (25)
| Distance | Code | Observation |
|---|---|---|
| 359.5 | SAP | — |
| 113.2 | TFC | — |
| 164.1 | TFC | — |
| 12.7 | TFC | — |
| 0 | MWM | — |
| 109.7 | TFC | — |
| 161 | TFC | — |
| 2 | DAGS | — |
| 362.2 | AMH | 20 0220 |
| 2 | SSS | — |
| 359.5 | SSS | — |
| 210.2 | TFC | — |
| 0 | AMH | 20 0221 |
| 0 | MWL | — |
| 64.2 | TFC | — |
| 313.2 | TFC | — |
| 9.7 | TFC | — |
| 261.3 | TFC | — |
| 61.1 | TFC | — |
| 2 | SAP | — |
| 309.7 | TFC | — |
| 362.2 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 257.9 | TFC | — |
| 212.8 | TFC | — |
| 359.5 | DAGS | — |
Properties (6)
- additional_info
- SC366202
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-03-22T00:07:13-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
