Wastewater/Activity/PacpInspection/1.0Mar 28, 2019, 08:26 AM
03 0469_03 0468 _03282019_013247.mp4
- Date
- 03/28/2019
- W/O
- 755907
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00387
- PipeID
- P04798
- Time
- 1:26 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6503
- Sewer Name
- 03 NORTH LONG BEACH TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_755907_TV03025_MAR2019
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 03 0469
- Downstream MH
- 03 0468
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 4
- O&M Quick
- 5121
- O&M Rating
- 7
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (3)

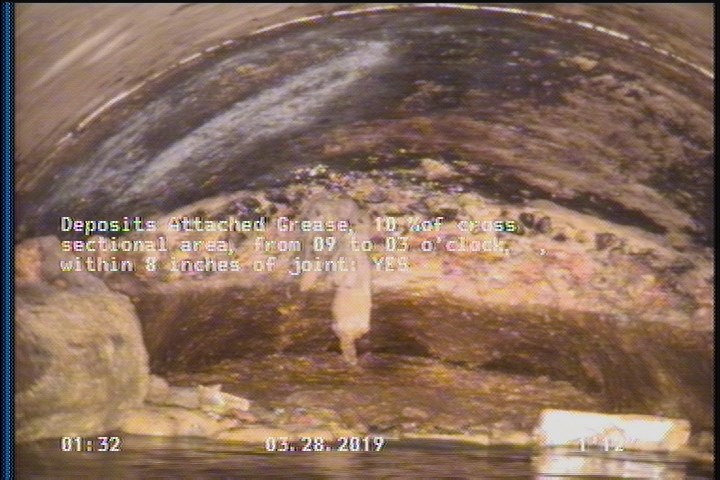

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES

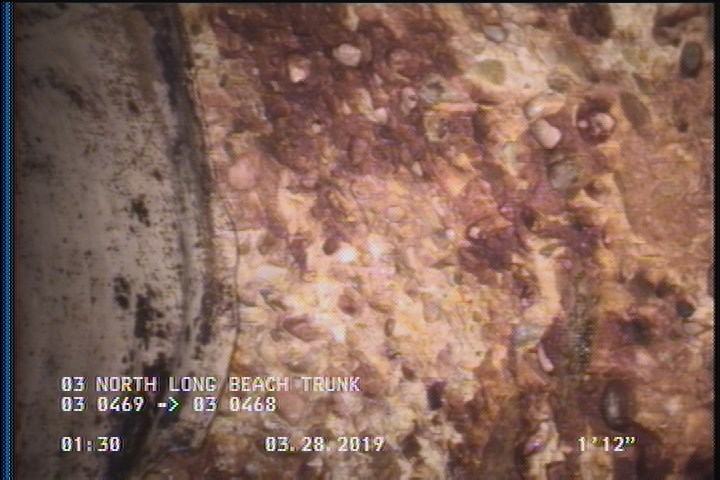

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES

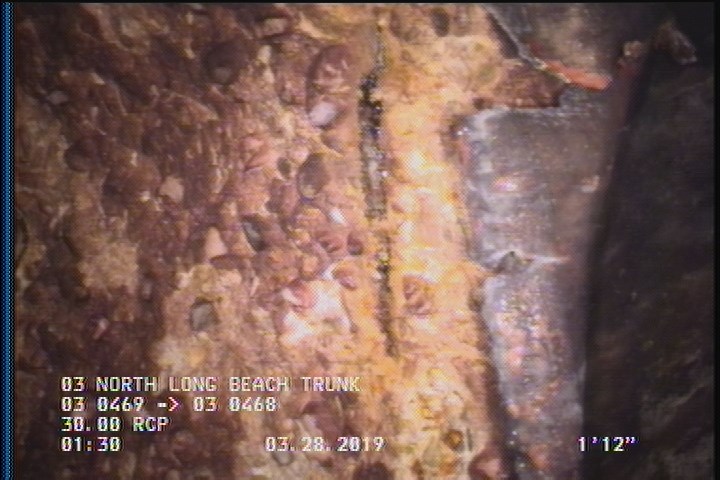

2 ft. - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 2 | MGO | VIEW OF THE SIPHON DOWNLEG FROM U/S MH |
| 2 | MGO | PIPE APPEARS REPAIRED |
| 2 | SAP | — |
| 2 | SRV | — |
| 2 | MGO | CIPP LINER |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 03 0469 |
Properties (6)
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2019-03-28T01:26:29-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 36115
