Wastewater/Activity/PacpInspection/1.0Jun 21, 2018, 06:45 AM
29 0516A_29 0516 _21062018_000216.mp4
- Date
- 06/20/2018
- W/O
- 706888
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01106
- PipeID
- P24566
- Time
- 11:45 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5740
- Sewer Name
- 29 19TH STREET SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_706888_TV29054_JUN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0516
- Downstream MH
- 29 0516A
- Dir. of Survey
- Upstream
- Length Surveyed
- 287.2 ft.
- Total Length
- 287.2 ft.
- Structural Index
- 3
- Structural Quick
- 3I21
- Structural Rating
- 152
- O&M Index
- 2
- O&M Quick
- 2J00
- O&M Rating
- 114
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 266
Observation photos (4)

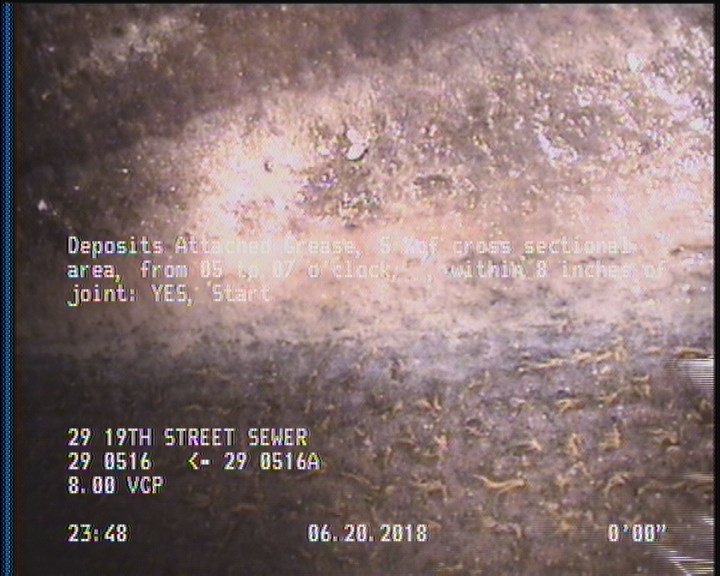

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

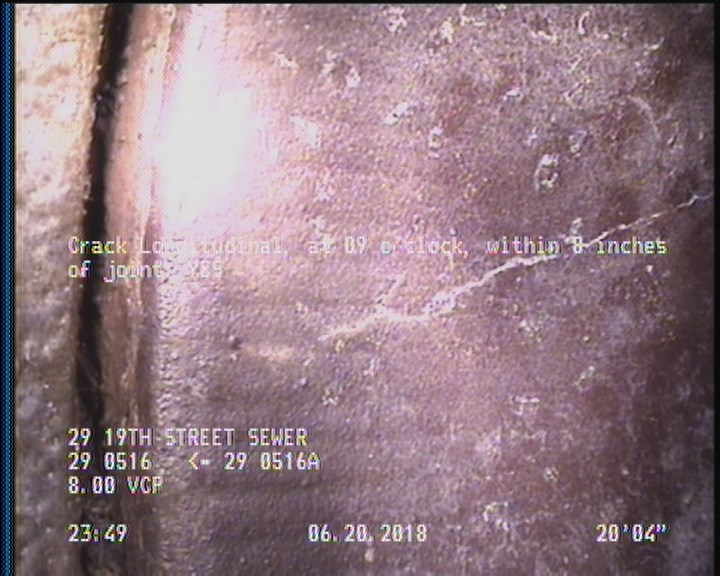

20.3 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

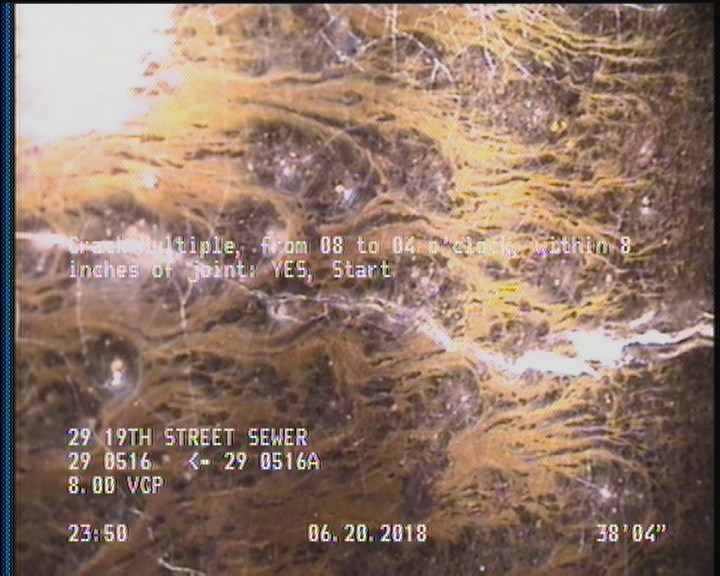

38.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

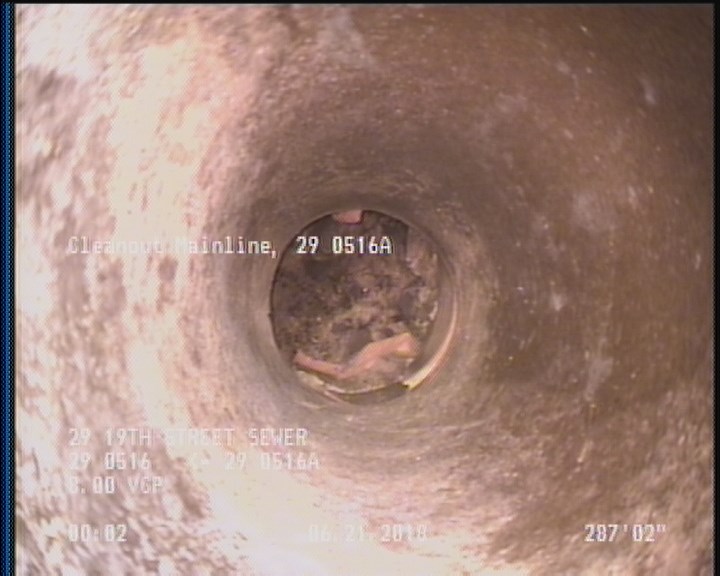

287.2 ft. - Cleanout Mainline - 29 0516A
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 20.3 | CL | — |
| 204.1 | TFA | — |
| 175.6 | TFA | — |
| 95.3 | TFA | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 249.9 | TBA | — |
| 287.2 | CM | — |
| 275.5 | TBA | — |
| 287.2 | ACOM | 29 0516A |
| 0 | MWL | — |
| 38.3 | CM | — |
| 284.5 | TFA | — |
| 287.2 | DAGS | — |
| 0 | AMH | 29 0516 |
Properties (6)
- additional_info
- SC359706
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-20T23:45:47-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
