Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 21, 2019, 10:35 AM

  • 18 0404_18 0403 _03212019_034812.mp4

Date
03/21/2019
W/O
756105
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00699
PipeID
P14239
Time
3:35 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6488
Sewer Name
18 SANTA FE STREET RELIEF TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
RFIR_WO_756105_TV18189_MAR2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0404
Downstream MH
18 0403
Dir. of Survey
Downstream
Length Surveyed
418.3 ft.
Total Length
418.3 ft.
Structural Index
3
Structural Quick
3O00
Structural Rating
240
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
244
Pipe schematic from manhole 18 0404 to 18 0403
MH: 18 0404MH: 18 0403downstream0 ft. AMH - Upstream Manhole, Survey Begins - 18 04040 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area6 ft. MGO - General Observation - MAG COAT THROUGHOUT PIPE21.4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start104.3 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 8"169.3 ft. RPL - Repair Localized Liner, within 8 inches of joint: YES - repair patch313.9 ft. FS - Fracture Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES414.1 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish418.3 ft. AMH - Downstream Manhole, Survey Ends - 18 0403

Observation photos (3)

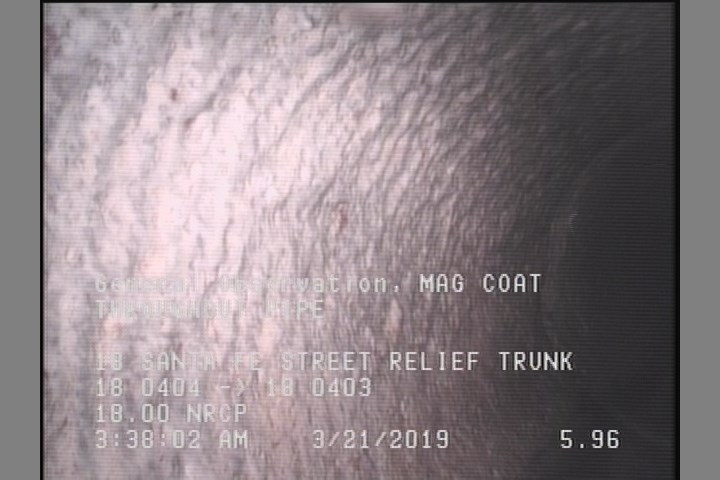

  • General Observation - MAG COAT THROUGHOUT PIPE

    6 ft. - General Observation - MAG COAT THROUGHOUT PIPE

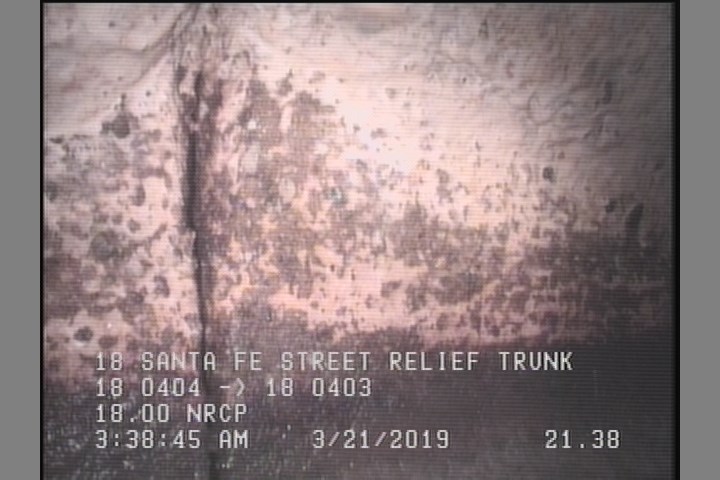

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    21.4 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

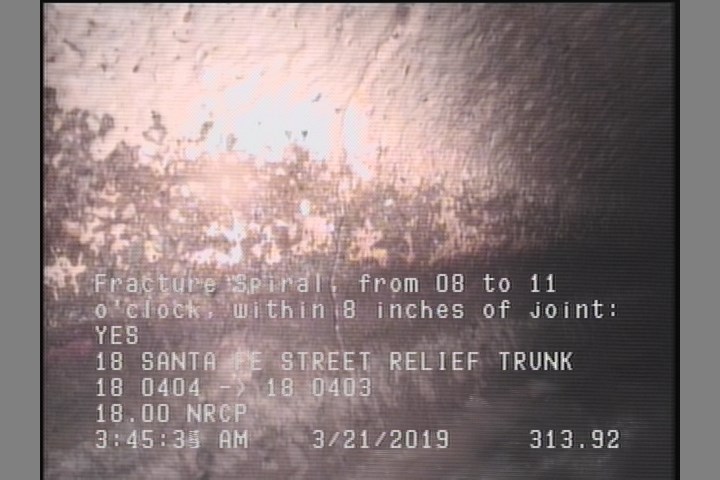

  • Fracture Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES

    313.9 ft. - Fracture Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES

All inspections of P14239Work order 756105

Observations (10)

DistanceCodeObservation
6MGOMAG COAT THROUGHOUT PIPE
104.3TBA—
169.3RPLrepair patch
313.9FS—
0AMH18 0404
414.1SAP—
418.3AMH18 0403
21.4SAP—
0MWM—
0MWL—

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2019-03-21T03:35:15-07:00
documentation
PROPIPE
is_lateral_inspection
false
