Wastewater/Activity/PacpInspection/1.0Mar 21, 2019, 05:58 AM
18 1097_18 1153 _03202019_232904.mp4
- Date
- 03/20/2019
- W/O
- 756105
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00699
- PipeID
- P14263
- Time
- 10:58 PM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6488
- Sewer Name
- 18 SANTA FE STREET RELIEF TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- RFIR_WO_756105_TV18189_MAR2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 18 1097
- Downstream MH
- 18 1153
- Dir. of Survey
- Downstream
- Length Surveyed
- 670.4 ft.
- Total Length
- 670.4 ft.
- Structural Index
- 3
- Structural Quick
- 3Y00
- Structural Rating
- 393
- O&M Index
- 3
- O&M Quick
- 4312
- O&M Rating
- 14
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 407
Observation photos (3)

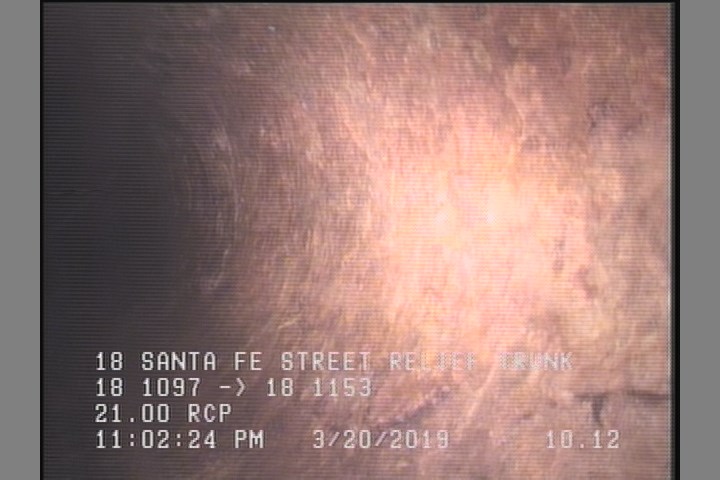

10.1 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

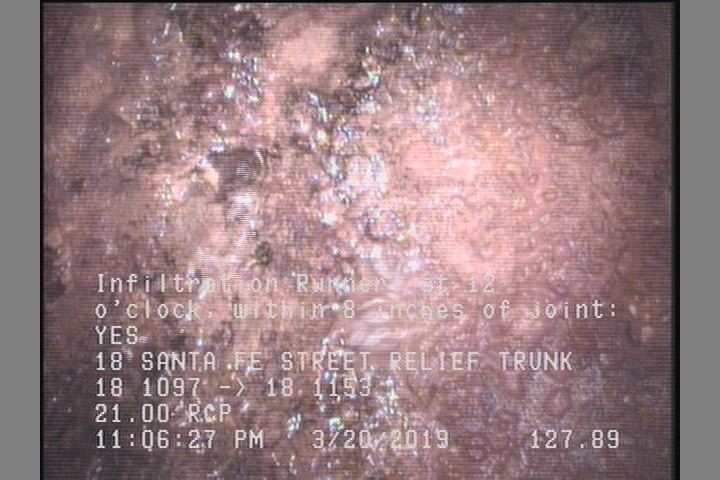

127.9 ft. - Infiltration Runner, at 12 o'clock, within 8 inches of joint: YES

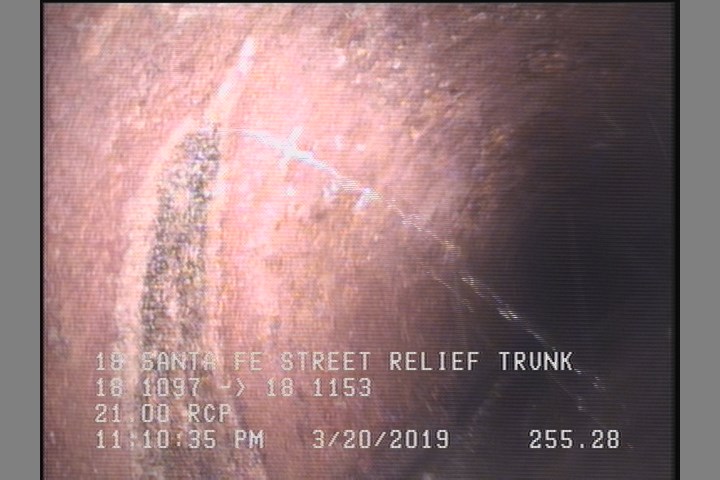

255.3 ft. - Infiltration Runner, at 11 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | 18 1097 |
| 0 | MGO | MULTIPLE CONNECTIONS IN MH |
| 658.5 | LR | — |
| 255.3 | IR | — |
| 127.9 | IR | — |
| 666.3 | SAP | — |
| 10.1 | SAP | — |
| 670.4 | AMH | 18 1153 |
| 38.7 | LR | — |
| 0 | MWL | — |
Properties (6)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-03-20T22:58:05-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 26802
