Wastewater/Activity/PacpInspection/1.0Mar 18, 2019, 08:00 AM
18 0379_18 0378 _03182019_012232.mp4
- Date
- 03/18/2019
- W/O
- 755597
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00690
- PipeID
- P14213
- Time
- 1:00 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6478
- Sewer Name
- 18 NORTH NORWALK TRUNK
- City
- NORWALK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- RFIR_WO_755957_TV18095_MAR2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 0379
- Downstream MH
- 18 0378
- Dir. of Survey
- Downstream
- Length Surveyed
- 350.4 ft.
- Total Length
- 350.4 ft.
- Structural Index
- 4
- Structural Quick
- 4300
- Structural Rating
- 12
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (3)

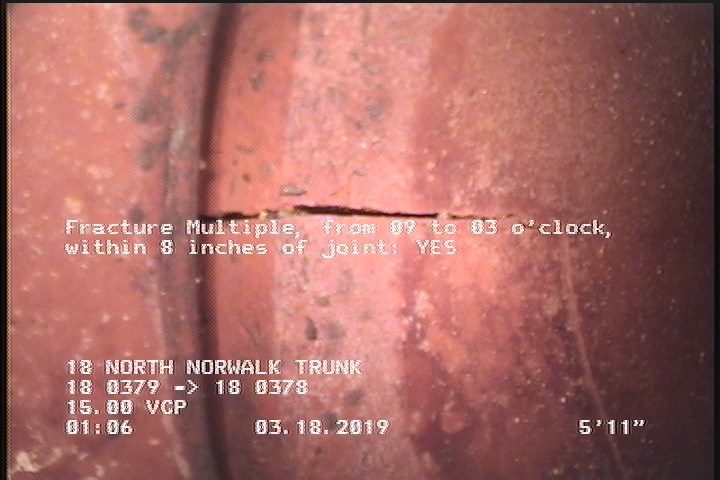

6 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

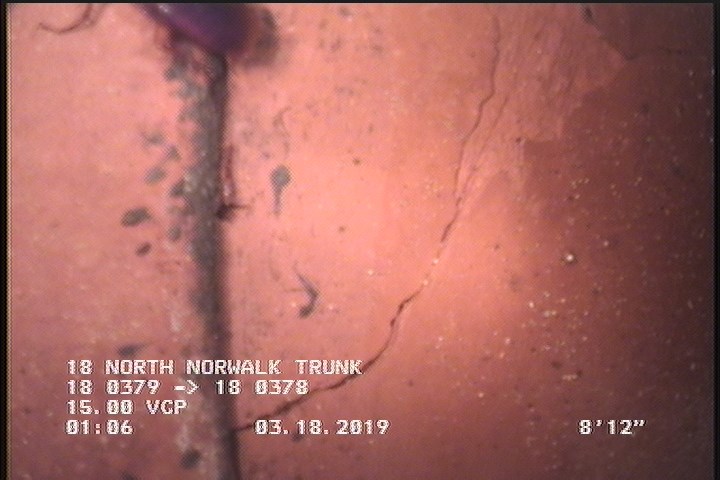

9 ft. - Fracture Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

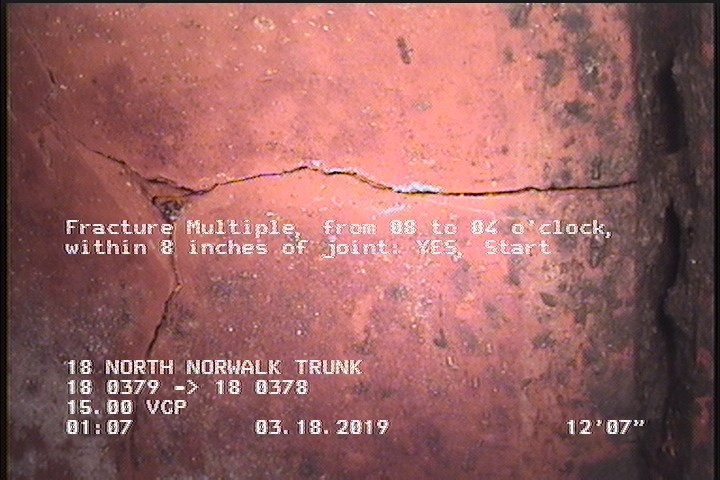

12.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 9 | FM | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
| 0 | MWM | — |
| 348.9 | FM | — |
| 12.6 | FM | — |
| 0 | AMH | 18 0379 |
| 19.1 | TFC | — |
| 181.8 | TFC | — |
| 350.4 | AMH | 18 0378 |
| 342.4 | TFC | — |
| 88.1 | TFC | — |
| 6 | FM | — |
| 289.4 | TFC | — |
Properties (5)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-03-18T01:00:13-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
