Wastewater/Activity/PacpInspection/1.0Mar 26, 2019, 08:20 AM
21 1086_21 1040 _03262019_012730.mp4
- Date
- 03/26/2019
- W/O
- 755939
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00784
- PipeID
- P16146
- Time
- 1:20 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5840
- Sewer Name
- 21 SAN ANTONIO TRUNK
- City
- CLAREMONT
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- RFIR_WO_755939_TV21055_MAR2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 21 1086
- Downstream MH
- 21 1040
- Dir. of Survey
- Downstream
- Length Surveyed
- 33.2 ft.
- Total Length
- 33.2 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (3)

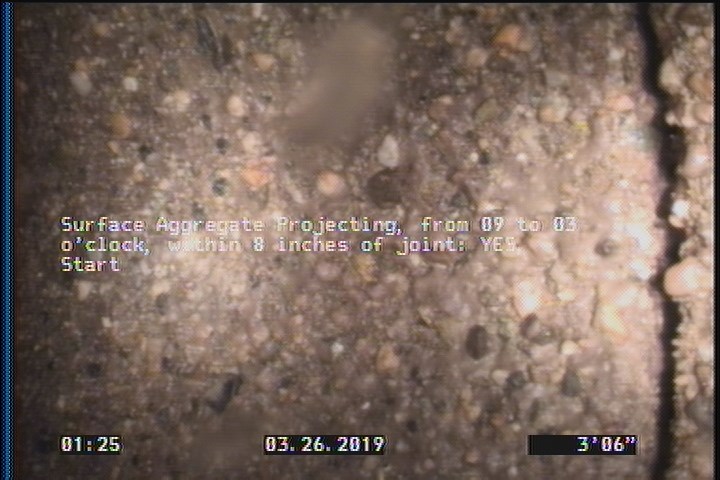

3.5 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

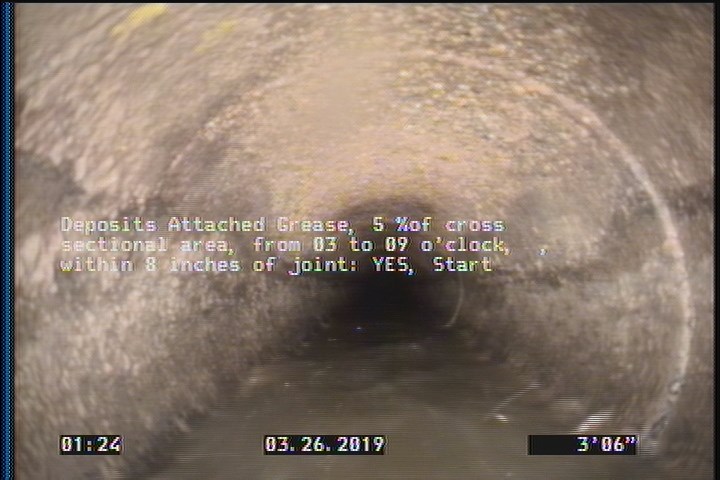

3.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

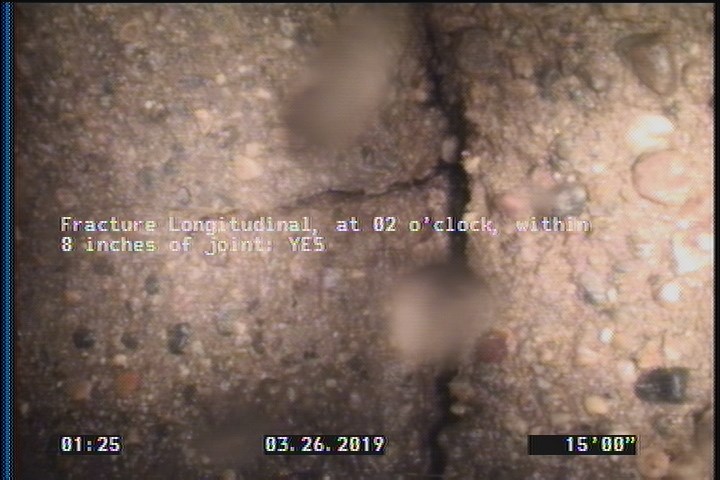

15 ft. - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 21 1086 |
| 31 | SAP | — |
| 33.2 | AMH | 21 1040 |
| 0 | MWM | — |
| 15 | FL | — |
| 33.2 | MGO | CAPPED CONNECTION AT 9 O' CLOCK AT |
| 3.5 | SAP | — |
| 31 | DAGS | — |
| 0 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 0 | MWL | — |
| 3.5 | DAGS | — |
Properties (6)
- additional_info
- SC366073
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-03-26T01:20:36-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
