Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 29, 2019, 07:15 AM

  • 21 0995_21 0994 _03292019_003412.mp4

Date
03/29/2019
W/O
755939
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00784
PipeID
P16095
Time
12:15 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6506
Sewer Name
21 SAN ANTONIO TRUNK
City
POMONA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
09
Purpose
Routine Assessment
Project
RFIR_WO_755939_TV21055_MAR2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
21 0995
Downstream MH
21 0994
Dir. of Survey
Downstream
Length Surveyed
331.8 ft.
Total Length
331.8 ft.
Structural Index
5
Structural Quick
5242
Structural Rating
18
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
5
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 21 0995 to 21 0994
MH: 21 0995MH: 21 0994downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 21 09950 ft. MWL - Water Level, 30 %of cross sectional area5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"5.8 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES11.5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start55 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"80.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"121.6 ft. B - Broken, from 02 to 04 o'clock, within 8 inches of joint: YES123.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"213.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"245.5 ft. B - Broken, from 01 to 05 o'clock, within 8 inches of joint: YES330.3 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish331.8 ft. AMH - Downstream Manhole, Survey Ends - 21 0994

Observation photos (4)

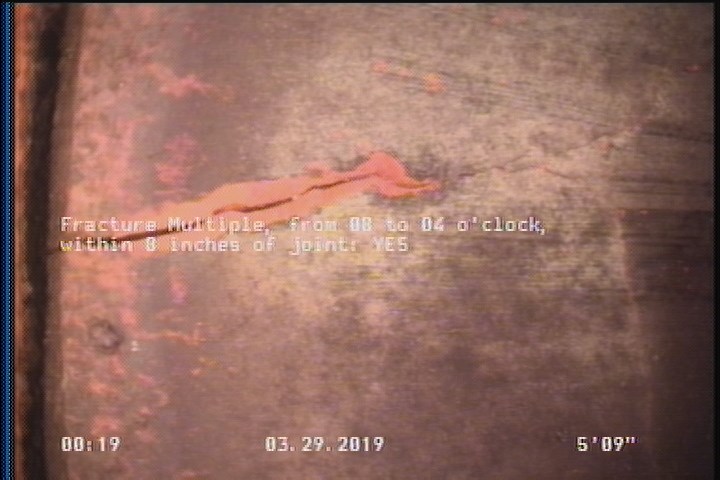

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    5.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

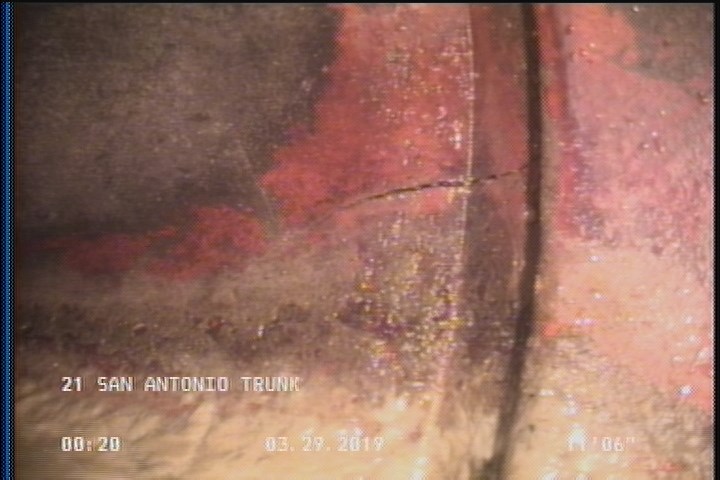

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    11.5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

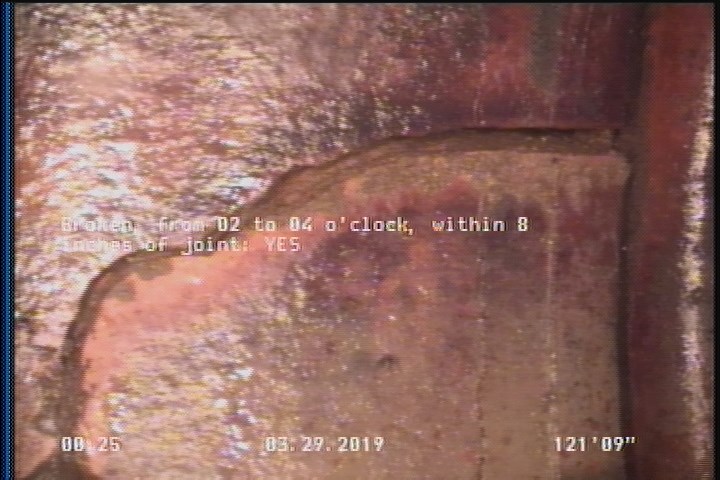

  • Broken, from 02 to 04 o'clock, within 8 inches of joint: YES

    121.6 ft. - Broken, from 02 to 04 o'clock, within 8 inches of joint: YES

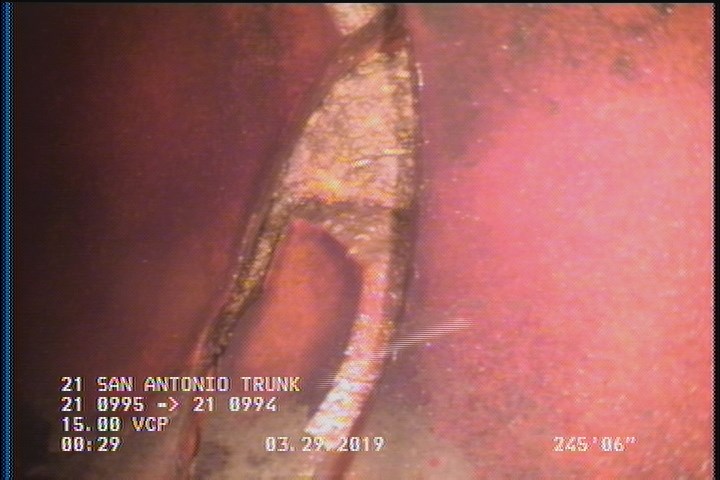

  • Broken, from 01 to 05 o'clock, within 8 inches of joint: YES

    245.5 ft. - Broken, from 01 to 05 o'clock, within 8 inches of joint: YES

All inspections of P16095Work order 755939

Observations (14)

DistanceCodeObservation
0MWM—
331.8AMH21 0994
245.5B—
121.6B—
5TFC—
330.3FM—
80.1TFA—
11.5FM—
0AMH21 0995
5.8FM—
123.1TF—
55TF—
213.7TFC—
0MWL—

Properties (5)

custom_field_two
1
customer
LACSD
datetime
2019-03-29T00:15:33-07:00
documentation
PROPIPE
is_lateral_inspection
false
